R0E424270MCU00 User's Manual 3. Tutorial

3.2 Starting the High-performance Embedded Workshop

Open a workspace by following the procedure described in "4.4 Opening an Existing Workspace" (page 77).
Specify the directory given below.
(Drive where the OS is installed)\Workspace\Tutorial\E100\H8S2400\Tutorial
Specify the file shown below.

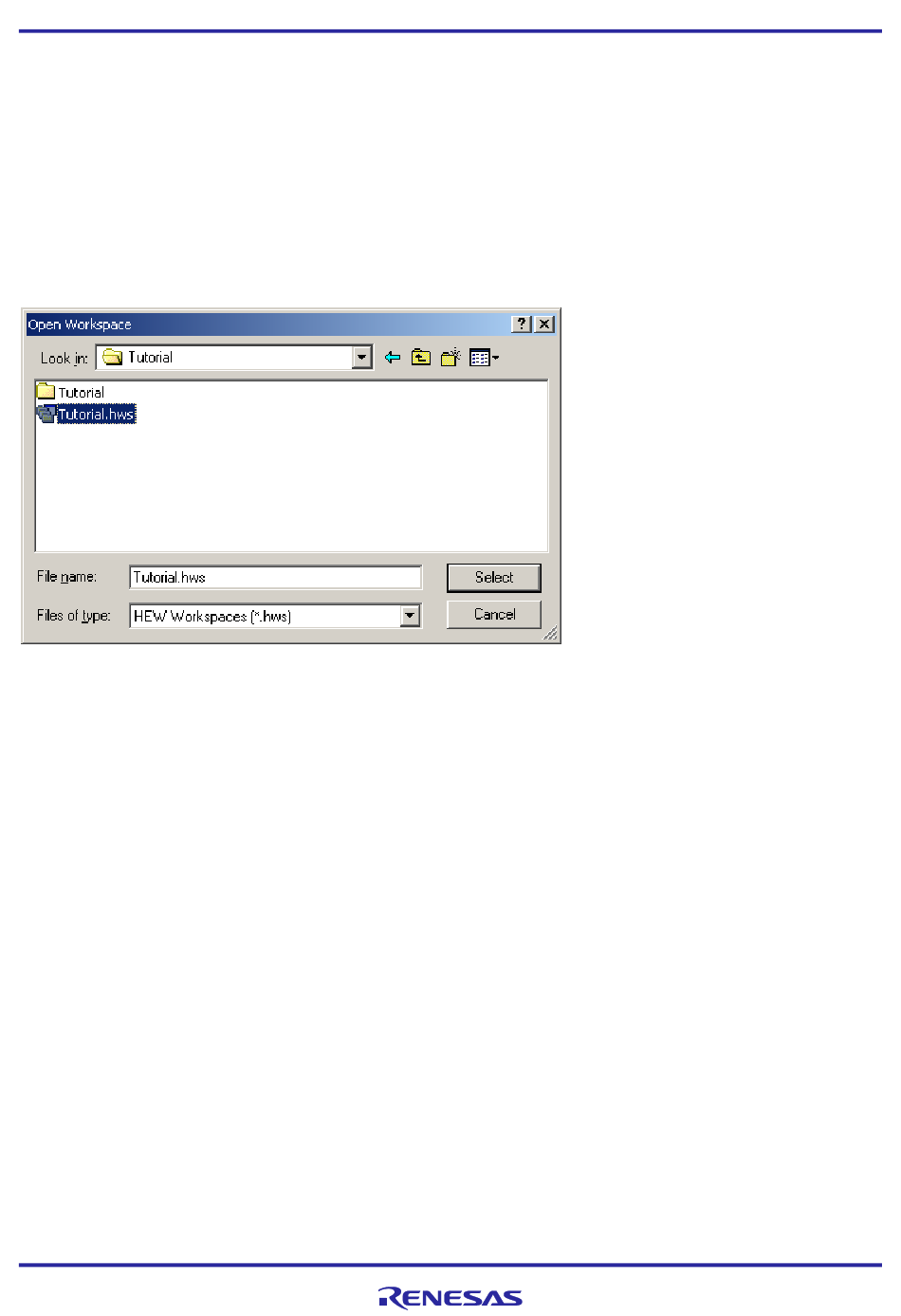

Figure 3.1 Open Workspace dialog box

3.3 Connecting the Emulator

When the debugger is connected to the emulator, a dialog box for setting up the debugger is displayed. Make initial settings of
the debugger in this dialog box.
When you have finished setting up the debugger, you are ready to start debugging.
