Using the Start/Stop Function

The emulator can be made to execute specific routines of the user program immediately before starting and immediately after
halting program execution. This function is useful if you wish to control a user system in synchronization with starting and
stopping of user program execution.

5.15.1 Opening the Start/Stop Function Setting Dialog Box

The routines to be executed immediately before starting and after halting execution of the user program are specified in the
[Start/Stop function setting] dialog box.
To open the Start/Stop function setting dialog box, choose Setup -> Emulator -> Start/Stop function setting... from the menu.

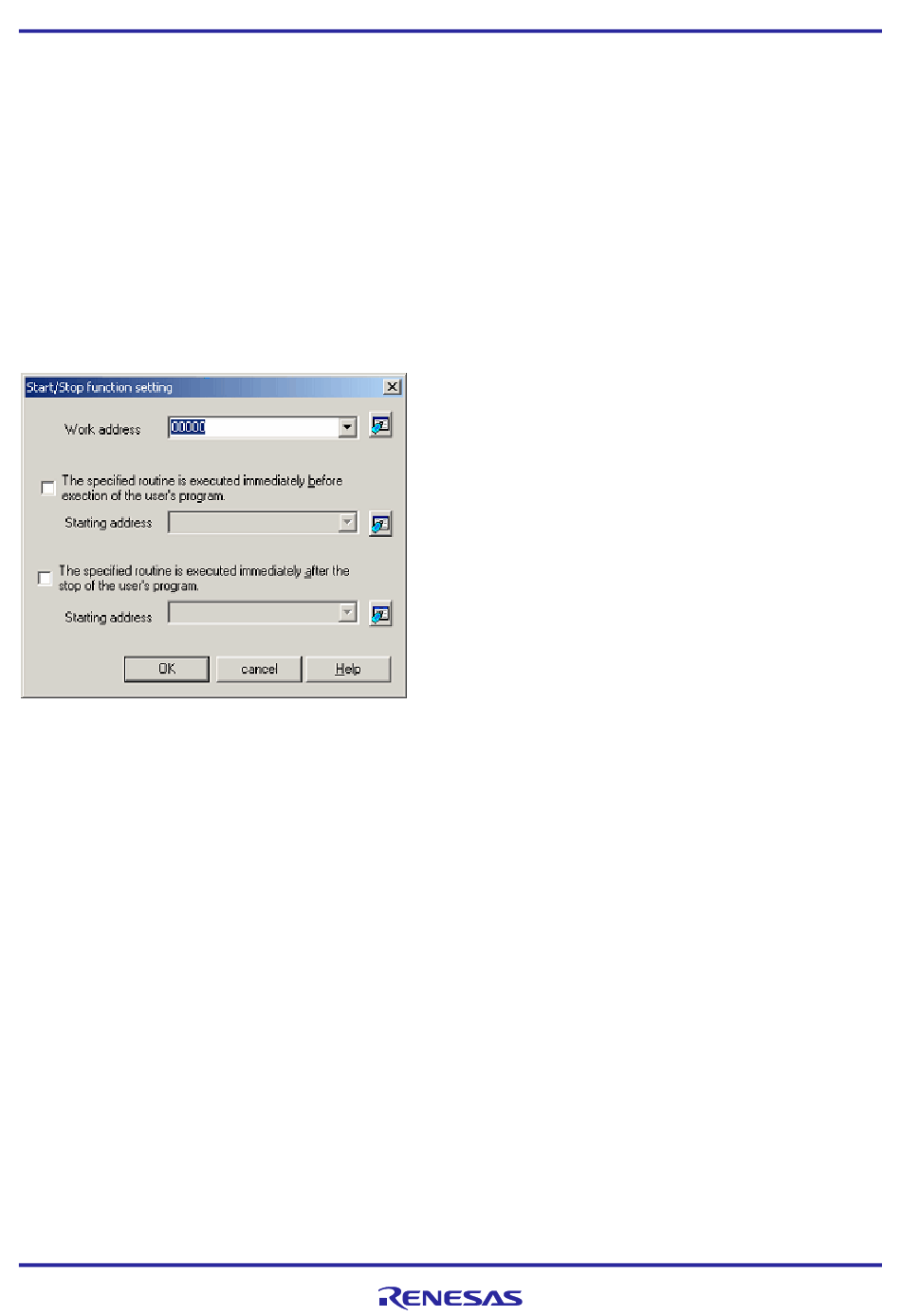

Figure 5.123 Start/Stop function setting dialog box

5.15.2 Specifying the Work address

Use this command to specify the address of a work area for use by a routine to run before the user program execution is started
or after user program execution is stopped.
CAUTION
The specified address must be in the RAM area and not used by the user program.

5.15.3 Specifying the Routine to be Executed

The routines to run immediately before starting and after halting execution of the user program are specified separately.
When the [The specified routine is executed immediately before execution of the user's program] checkbox is selected, the
routine specified in the [Starting address] combo box, which is below the checkbox, is executed immediately before execution
of the user program starts.
When the [The specified routine is executed immediately after the stop of the user's program] checkbox is selected, the routine
specified in the [Starting address] combo box, which is below the checkbox, is executed immediately after execution of the
user program stops.
