R0E424270MCU00 User's Manual 5. Debugging Functions

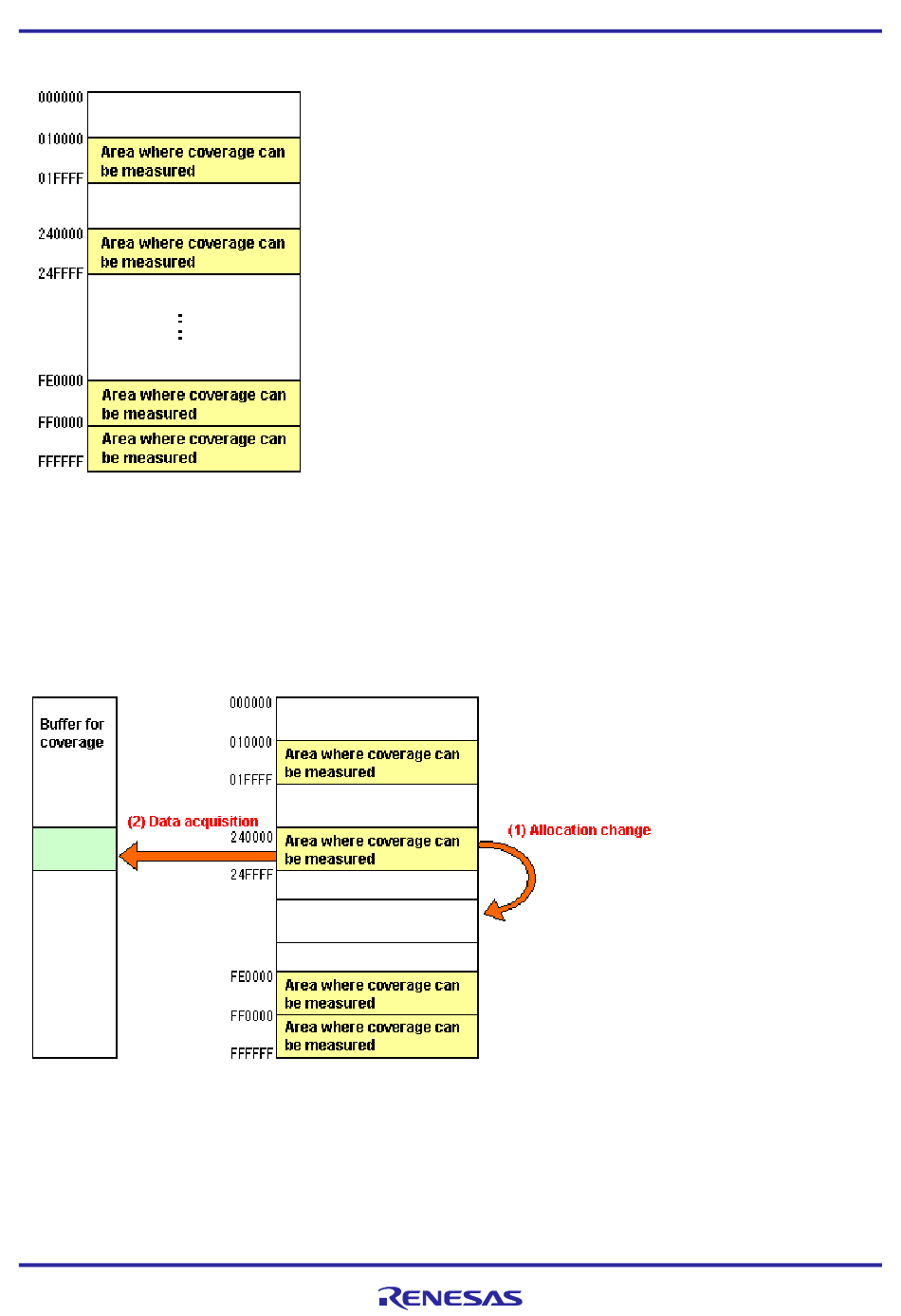

Figure 5.90 Schematic view of data coverage memory allocation
(2) Changing memory allocation
When the allocation of coverage memory is changed, the coverage data acquired from the target address ranges prior to the
change is retrieved from coverage memory into a dedicated coverage buffer.
Figure 5.91 Schematic view of a change in data coverage memory allocation
Acquired coverage information is accumulated in the coverage buffer until it is cleared by the user. However, coverage
information is not updated for areas to which coverage memory is not allocated.
The coverage information shown in the Data Coverage window includes the information from the contents of the coverage
buffer.
