R0E424270MCU00 User's Manual 5. Debugging Functions

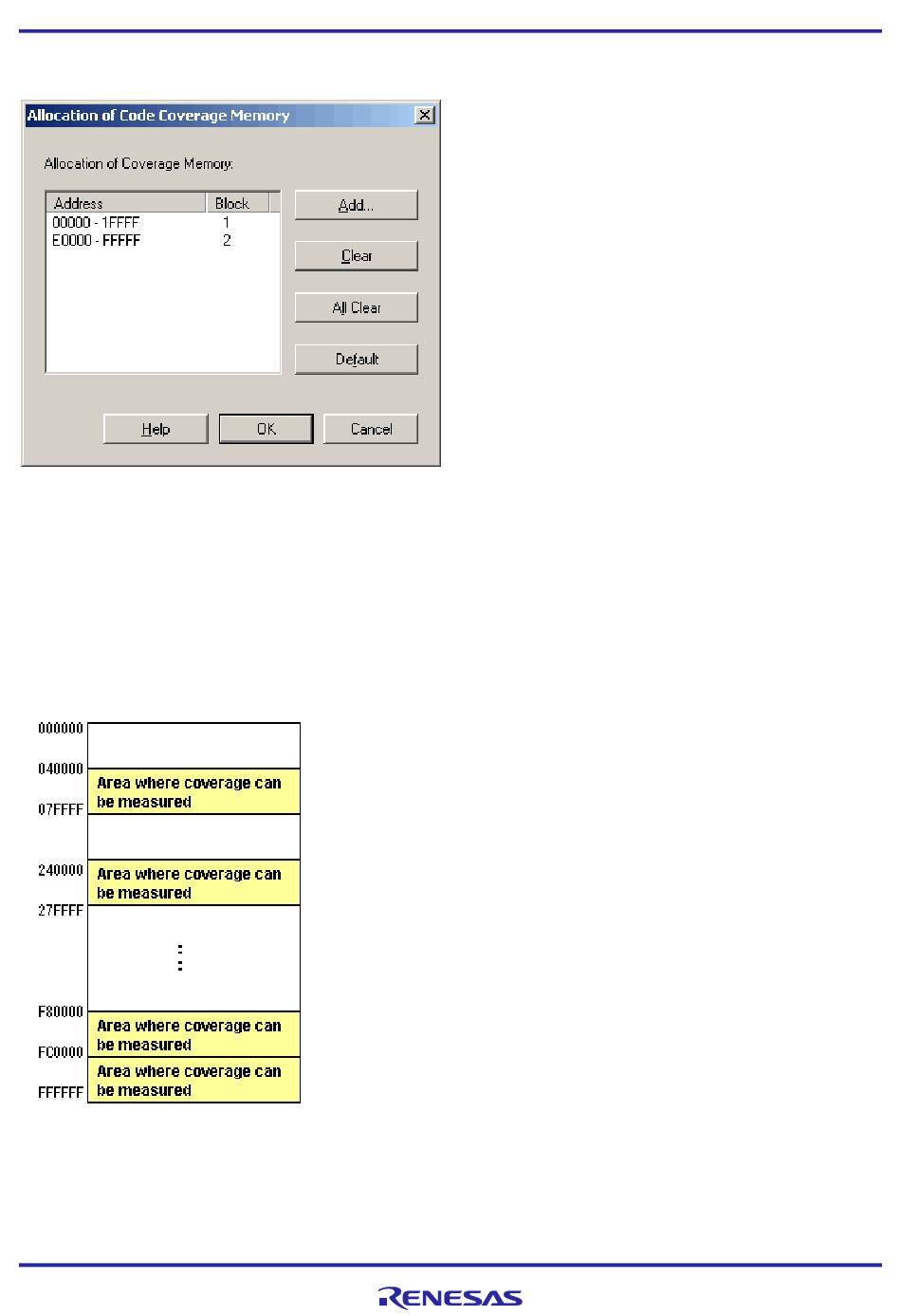

Figure 5.73 Allocation of Code Coverage Memory dialog box
When using C0 level coverage and C1 level coverage, you can specify a number of blocks from 1 to 8 (for a total of up to 2
Mbytes), each beginning on a 256-Kbyte boundary, and a number of blocks from 1 to 8 blocks (for a total of up to 1 Mbyte),
each beginning on a 128-Kbyte boundary, as areas for the respective forms of code coverage measurement.
The blocks may be contiguous or non-contiguous.
With the initial settings, the coverage memory is automatically allocated to addresses in the ROM area.
Figure 5.74 Schematic view of coverage memory allocation
