7.4.3 External Dimensions of the Converter Board (R0E424270CFKE0)

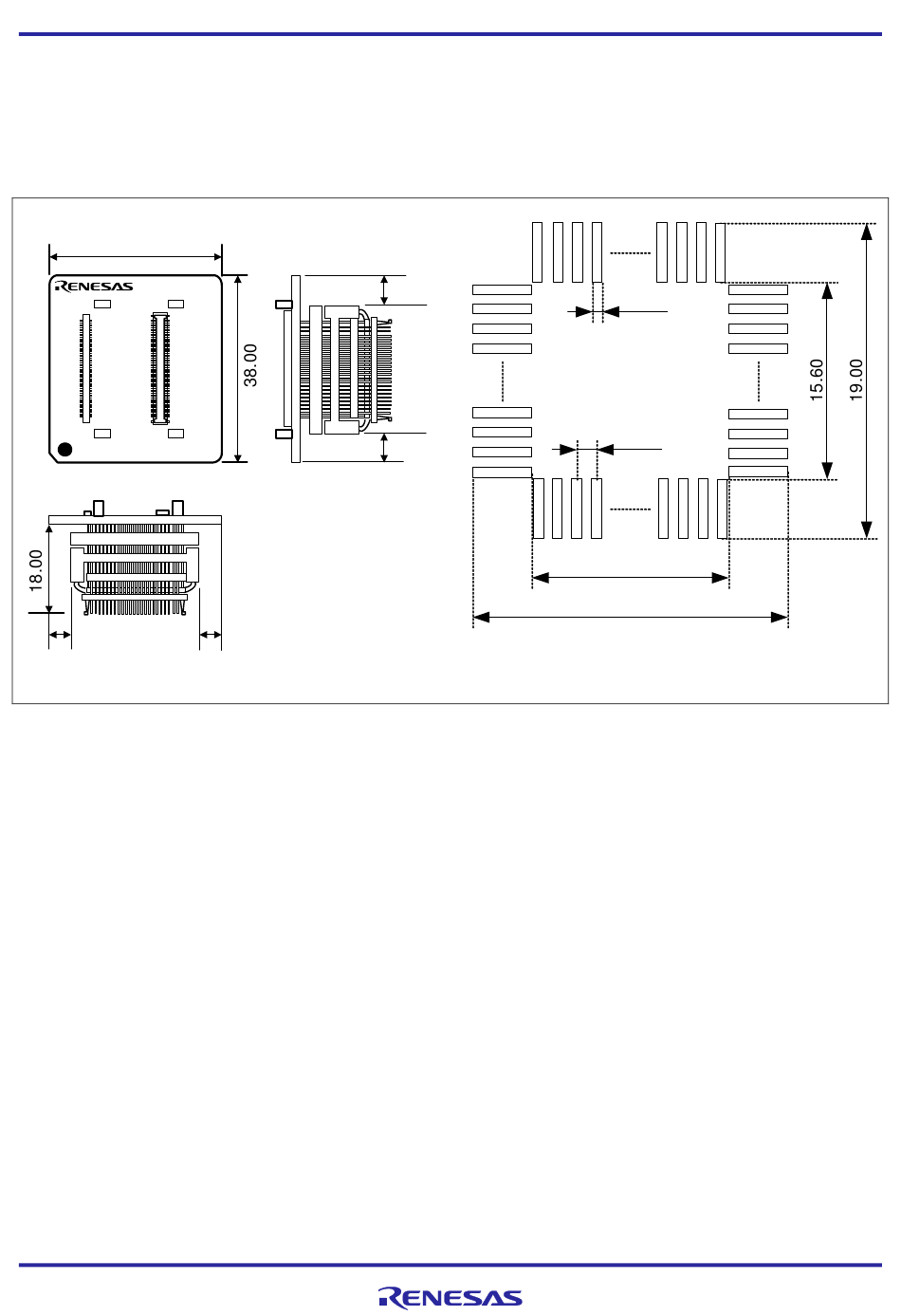

Figure 7.4 shows external dimensions and a sample pad pattern of the converter board (R0E424270CFKE0) for an 80-pin 0.5-
mm pitch LQFP.
35.00
R0E424270CFKE0
REV.A
TP3 TP1
1 100
100 1
CN2 CN1
51 50 50 51
TP2
TP4
MADE IN JAPAN
4.50
Figure 7.4 External dimensions and a sample pad pattern for the R0E424270CFKE0
R20UT3586EJ0202 Rev.2.02
Sep.01.21
4.50
6.00
6.00
7. Hardware Specifications
0.25
0.5
15.60
19.00
Page 222 of 233
Unit: mm
