5.13.7 Measuring Task Profiles

The Task Profile mode allows measurement of performance per task.

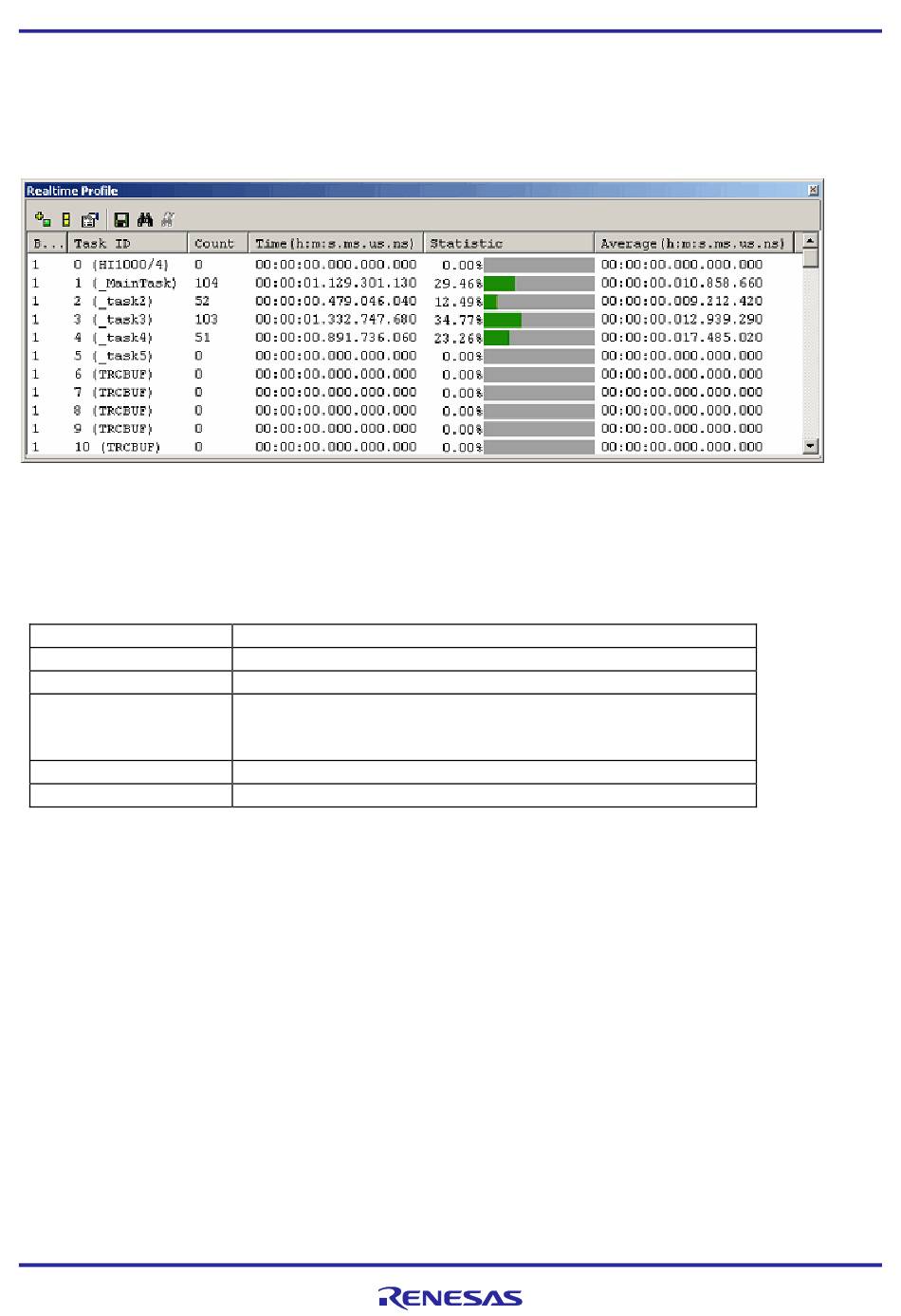

Figure 5.103 Realtime Profile window (task profile)
The information in each of the columns is described in the table below.
Table 5.42 Details on each column
Block
Task ID
Count
Time (h:m:s.ms.us.ns)
Statistic
Average (h:m:s.ms.us.ns)
Disabled tasks are grayed-out.
Acquired results of profile measurement are accumulated in memory until the user clears them.
R20UT3586EJ0202 Rev.2.02
Sep.01.21
Block number
Task ID, entry address
Number of times the task has been called
Cumulative time of task execution
The timestamp is in the form shown below.
Hours:minutes:seconds.milliseconds.microseconds.nanoseconds
Ratio of the time for the given function to Go-Break time
Average of the execution times for individual passes
