R0E424270MCU00 User's Manual 5. Debugging Functions
5.1.6

Settings to Request Notification of Exceptional Events

The Exception Warning page of the Configuration properties dialog box allows you to select whether or not to display
warnings in the Status window and as a balloon on the status bar when exceptional events occur.

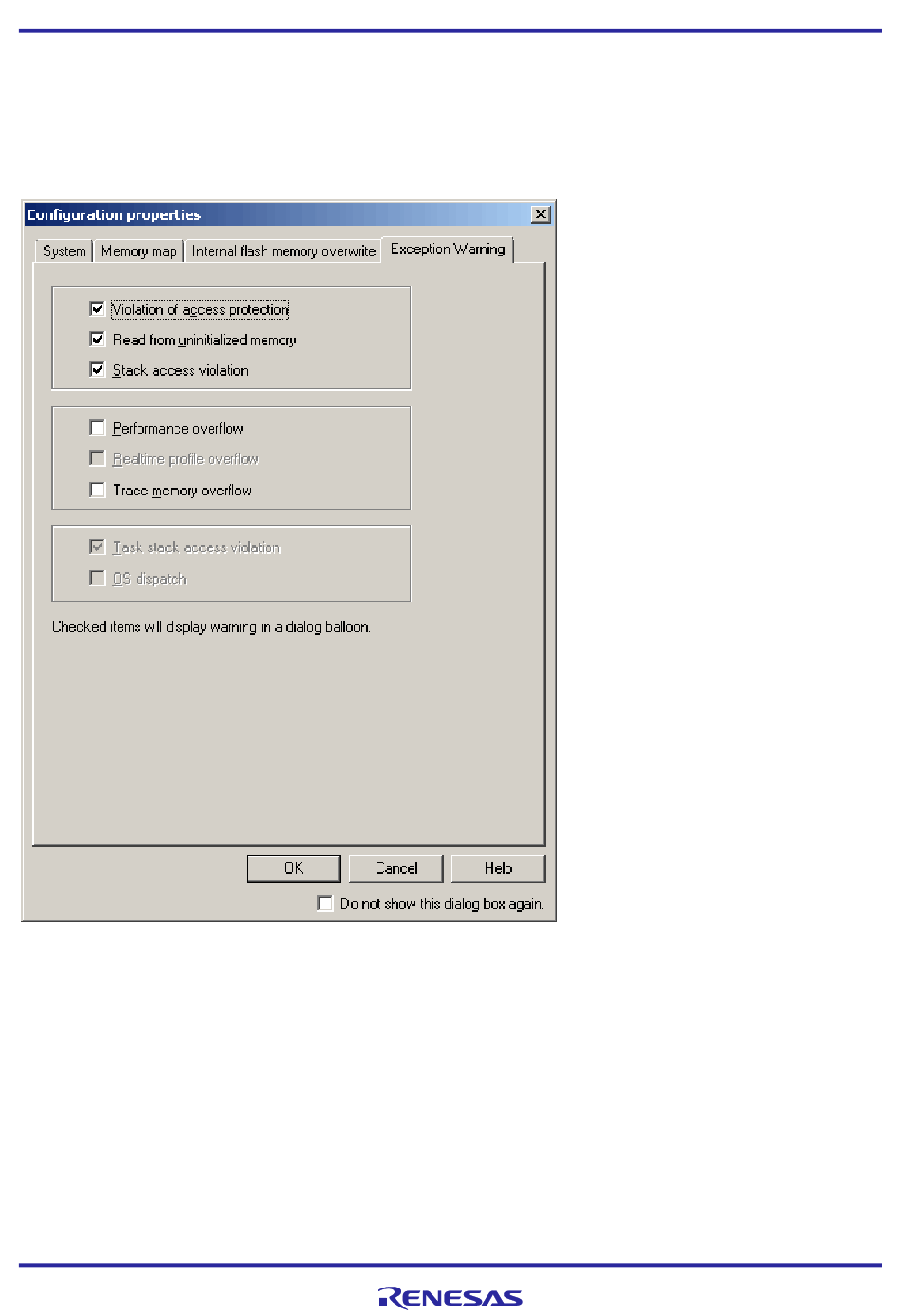

Figure 5.5 Configuration properties dialog box (Exception Warning page)
The 'Violation of access protection', 'Read from uninitialized memory' and 'Stack access violation' checkboxes are initially
selected.
When a load module that includes an OS has been downloaded, the 'Task stack access violation' checkbox is also initially
selected.
Other items are non-selected by default.
If you deselect a checkbox, the corresponding item will appear as '-' in the Status window.
