R0E424270MCU00 User's Manual
(1) From the Editor or Disassembly window
1. Check that the Editor or Disassembly window that is currently open shows the position at which you want to set a software
breakpoint.
2. In the S/W Breakpoints column, double-click on the line where you want the program to stop.

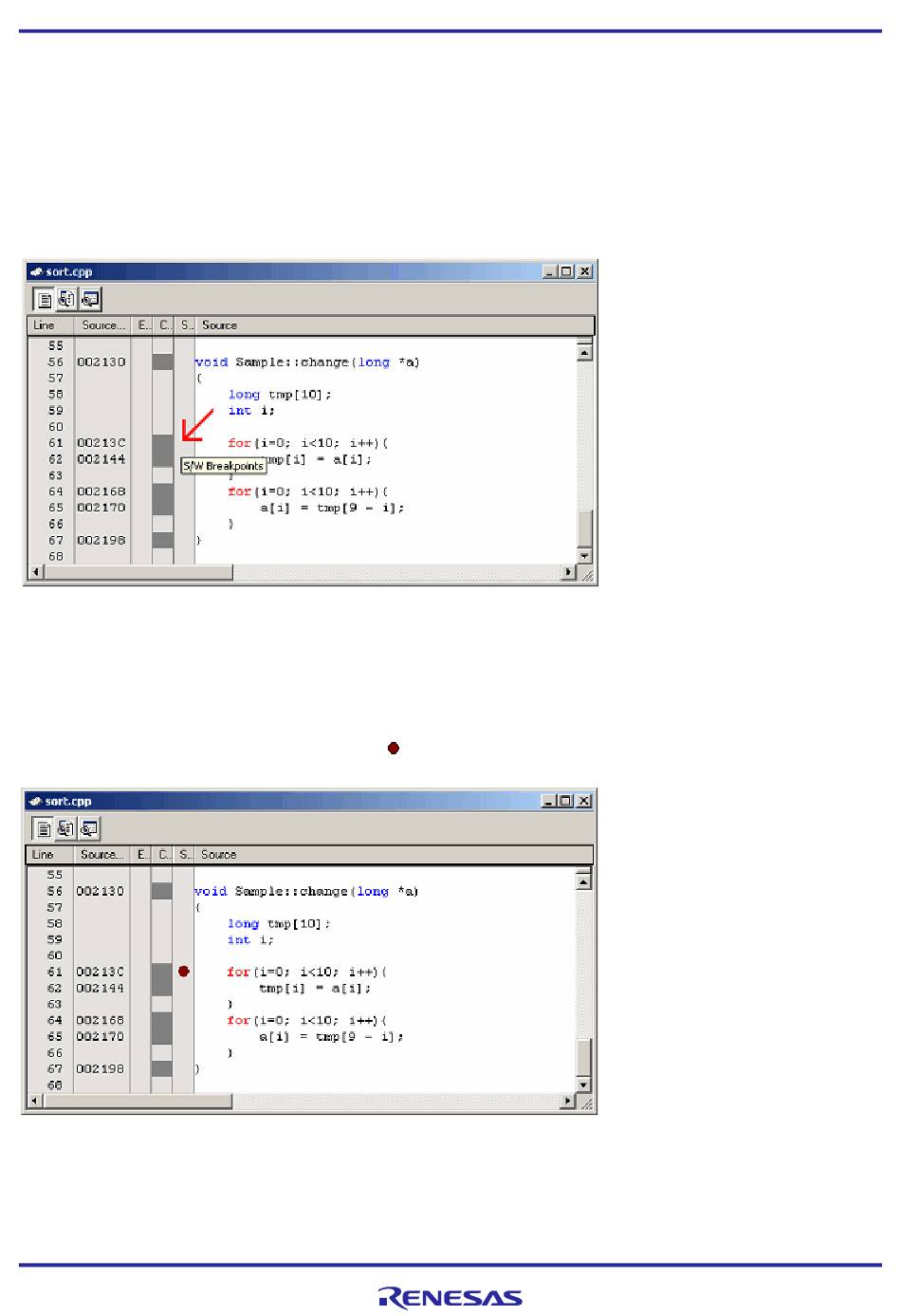

Figure 5.19 Editor window
Alternatively, you can select Toggle Breakpoint from the popup menu or press the F9 key.
3. When a software breakpoint is set, a red circle [ ] is displayed at the corresponding position in the S/W Breakpoints
column of the Editor or Disassembly window.
Figure 5.20 Editor window
Double-clicking one more time removes the breakpoint.
R20UT3586EJ0202 Rev.2.02
Sep.01.21
5. Debugging Functions
Page 105 of 233
