R0E424270MCU00 User's Manual

5.12.5 Data Coverage in Sections

The E100 emulator is capable of collecting the access information for a user-specified section and of displaying the
information.

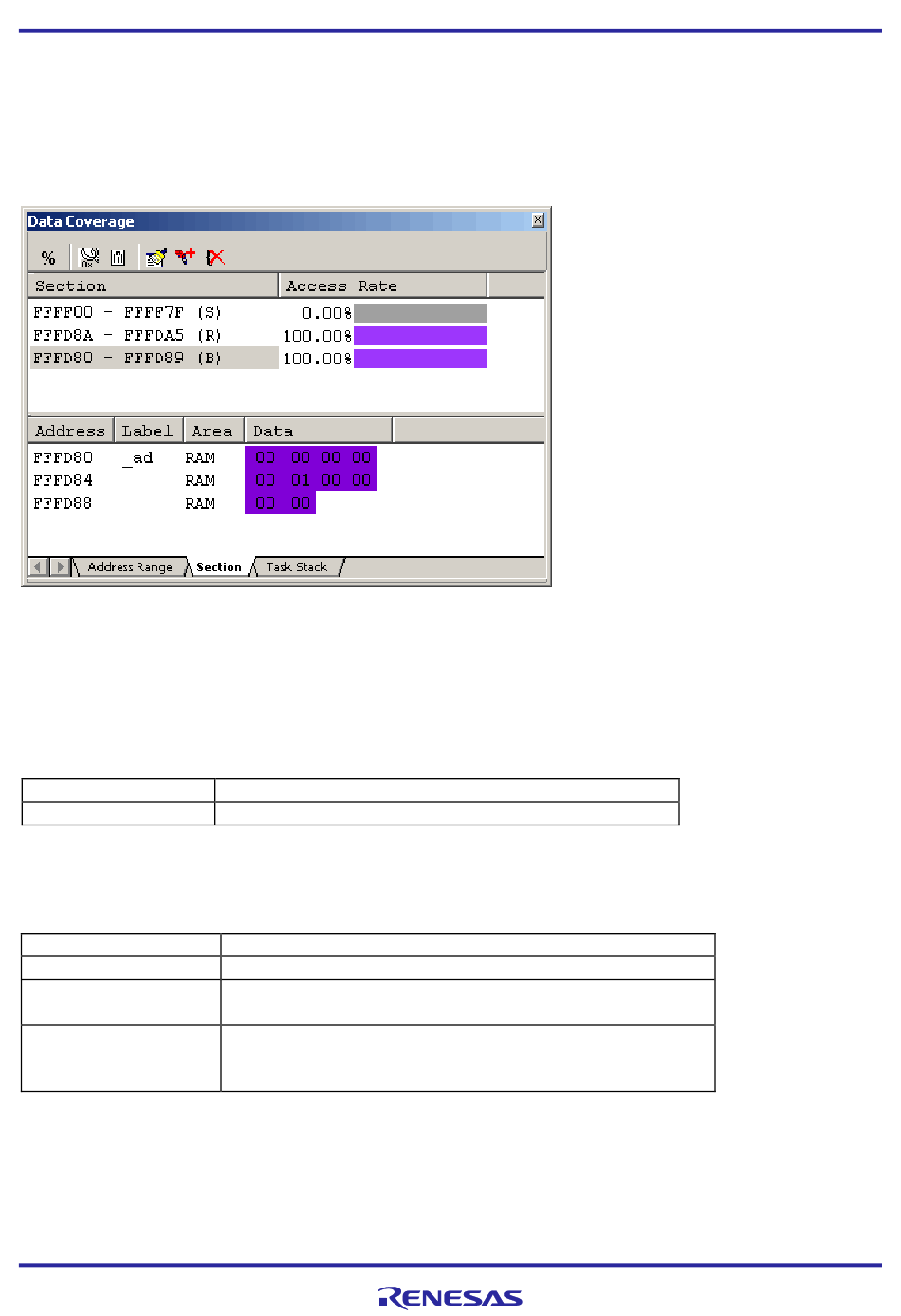

Figure 5.93 Data Coverage window (section name specification)
The Data Coverage window is vertically divided in two by the splitter.
The upper pane shows the address ranges (section names) to be measured and access rates.
Table 5.37 Contents of the upper pane of the Data Coverage window
[Section]
[Access Rate]
The lower pane shows a detailed view of the address range selected in the upper pane.
Table 5.38 Contents of the lower pane of the Data Coverage window
[Address]
[Label]
[Area]
[Data]
Lines for addresses beyond the area to which coverage memory has been allocated are grayed-out. Although any existing
coverage information for such addresses is retained, the coverage information will not be updated by program execution.
Acquired coverage information is accumulated in memory until it is cleared by the user.
R20UT3586EJ0202 Rev.2.02
Sep.01.21
Address range (section) for which coverage is measured
Access rate as a percentage and graph
Address value
Label name
Memory area (RAM, Data Flash, IO, or Flash ROM).
This column is blank when the area is unused.
Memory data.
Data that have been accessed are displayed against a purple
background.
5. Debugging Functions
Page 170 of 233
