4. Preparation for Debugging

4.1 Starting the High-performance Embedded Workshop

Follow the procedure below to start the High-performance Embedded Workshop.
(1) Connect the host machine, E100 emulator, and user system. Then turn on power to the E100 emulator and user system.
(2) From Programs on the Start menu, choose Renesas -> High-performance Embedded Workshop -> High-performance
Embedded Workshop.

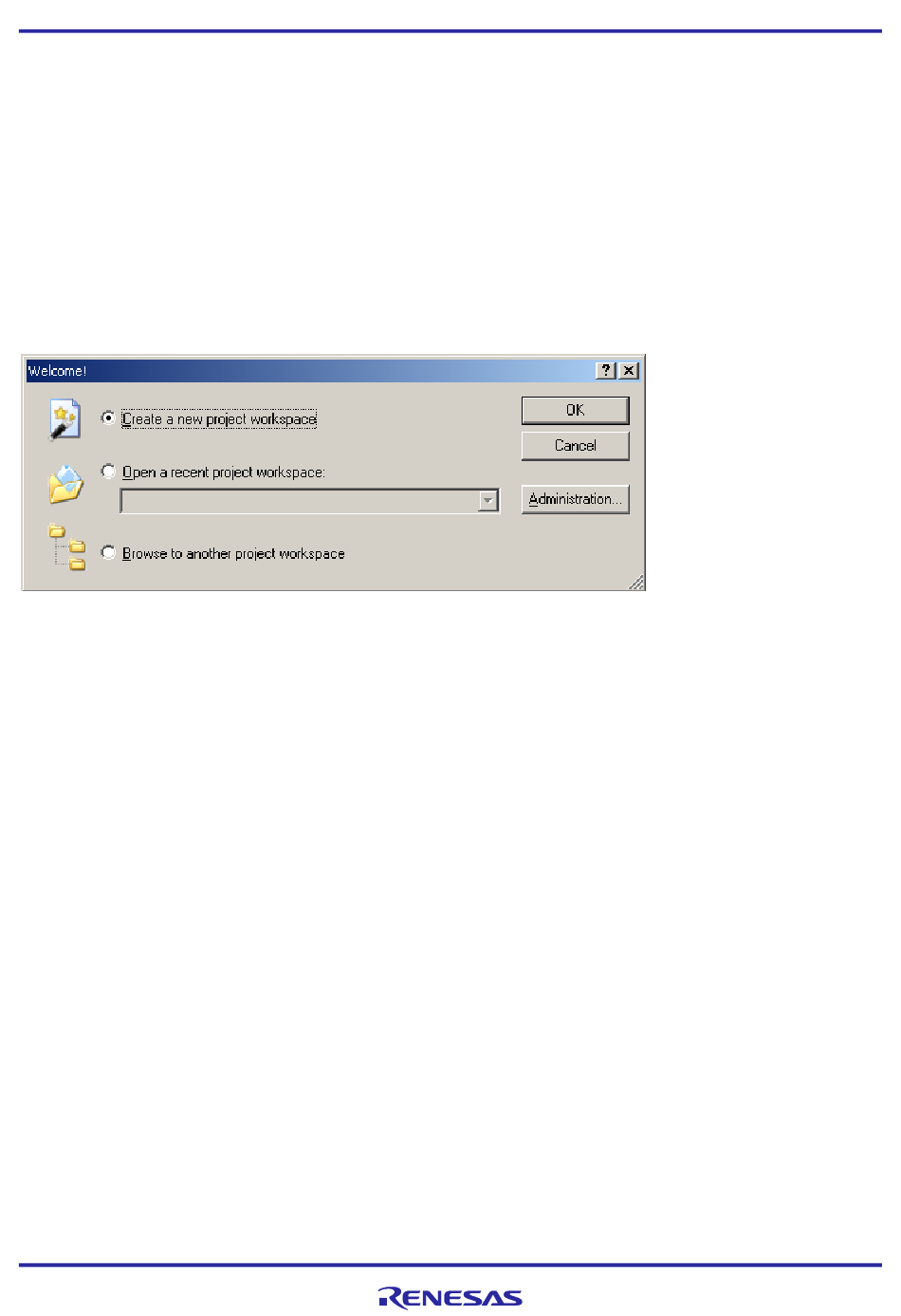

The Welcome! dialog box shown below will appear.
Figure 4.1 Welcome! dialog box
Select the startup method from among the following.
- Create a new project workspace
- Open a recently used project workspace
Select this option when you use an existing workspace.
The names of recently opened workspaces will be displayed.
- Browse for another project workspace
Select this option when you intend to use an existing workspace.
This option is available when there is no record of a recently opened workspace.
