Detection - Optex REDSCAN Pro RLS-50100V Settings Manual

RLS-50100V 3.x.x (xxxx/xx/xx)
Detection mode
Outdoor
Detection range expansion
Area set
Go back Finish

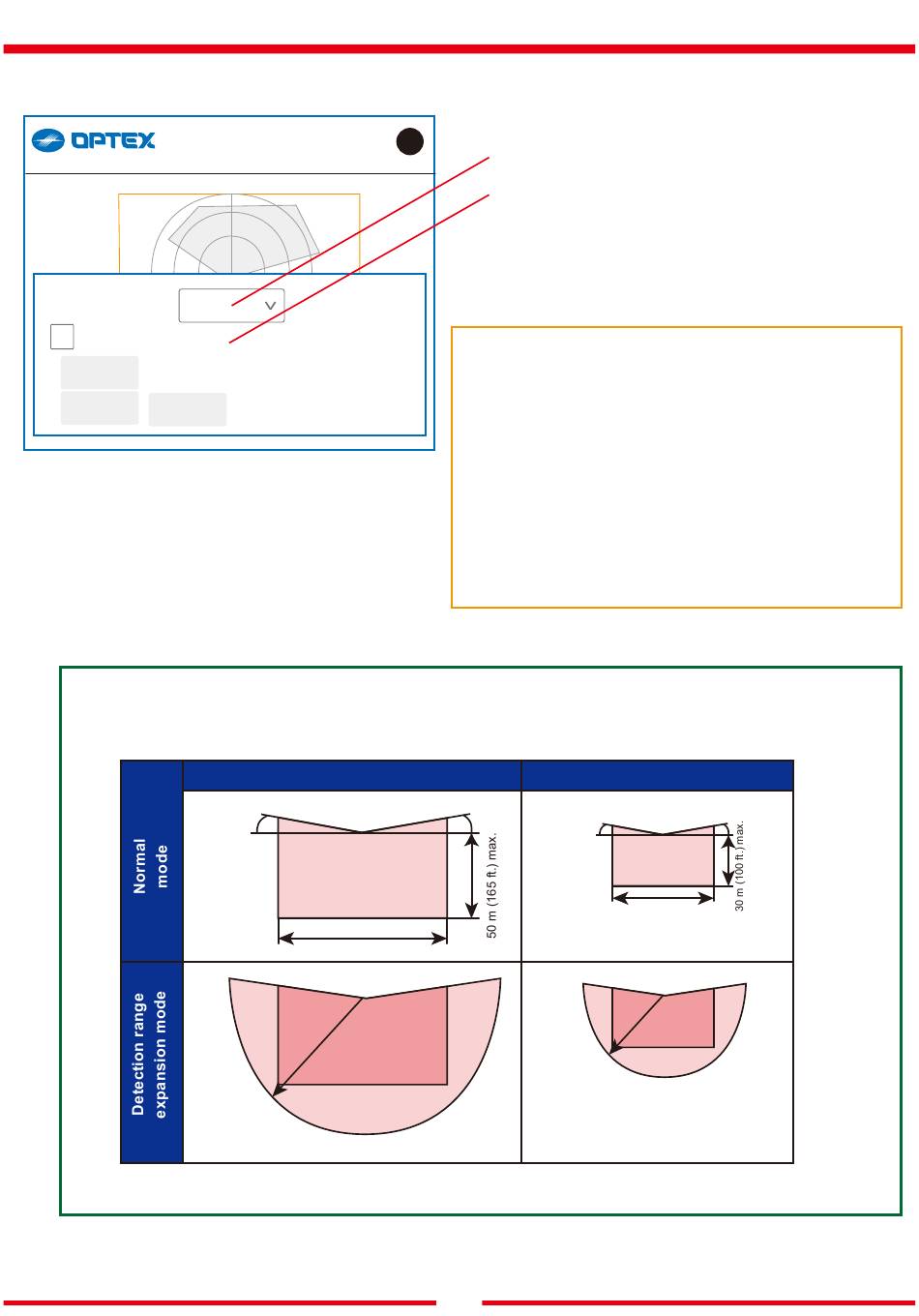

Detection Range Expansion Mode
The detection range of REDSCAN Pro can be extended to 50 - 80 m and become a fan shape of Arc 190°
Radius 80 m
(265 ft.)
Arc: 190°
?
RLS-50100V
5°
100 m (330 ft.) max.
Normal
Expanding area

1-7. Detection

Detection mode:
Detection range expansion:
-> See the column below for details
Area set
Go back
Finish
Detection mode
Outdoor Mode:
This option can be selected for general outdoor applications.
In this mode, the special algorithm works to reduce false
alarms caused by weather conditions (e.g. rain, snow or fog).
In order to reduce false alarms under harsh environment,
the Environmental Resistance function is available.
Indoor Mode:
For general indoor applications. In this mode, Environmental
Resistance and DQ Output are disabled.
RLS-3060V
5°
5°
60 m (200 ft.) max.
Expanding area
Radius 50 m
(165 ft.)
Arc: 190°
7
1. Initial configuration
[ Outdoor, Indoor ]
5°
Normal
