Optex LX-402 Installation Instructions

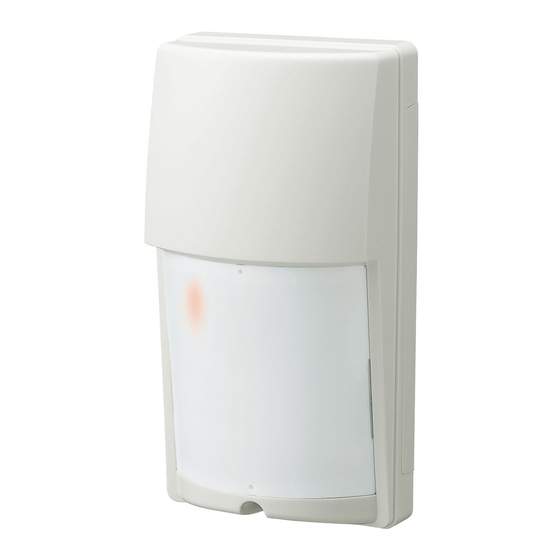

OUTDOOR PASSIVE INFRARED DETECTOR
LX-402,LX-802N
120°wide Long Range
FEATURES
·LX-402 :40ft.(12m) 120° Wide Angle
·LX-802N:80ft.(24m) Long Range
·Selectable Detection Area Patterns
·Day/Night Mode
·Waterproof (IP Rating:IP54)
Safety-Related Precautions
·Before installation,•• make sure to read this instruction manual carefully for safe and effective propduct operation.
·After reading this installation instructions, make sure to keep it in a conveninet place for future use.
This icon denotes a situation involving the risk of serious
Warning
injury or even death, if the warning given is ignored.
This icon indicates actions to be avoid. Details of the actions to be
avoided are written beside or near icon.
Never use this product for any application expect purpose for••
detecting moving object such as human or car. In addition, never
use for any activation for a shutter or other. It may cause hazards.
Never attempt to disassemble or modify the product, which
increases the risk of fire or damage of the product.
Avoid applying water directly from brackets, houses, or otherwise
splashing water directly onto the product. It increases the risk of
damaging the product.

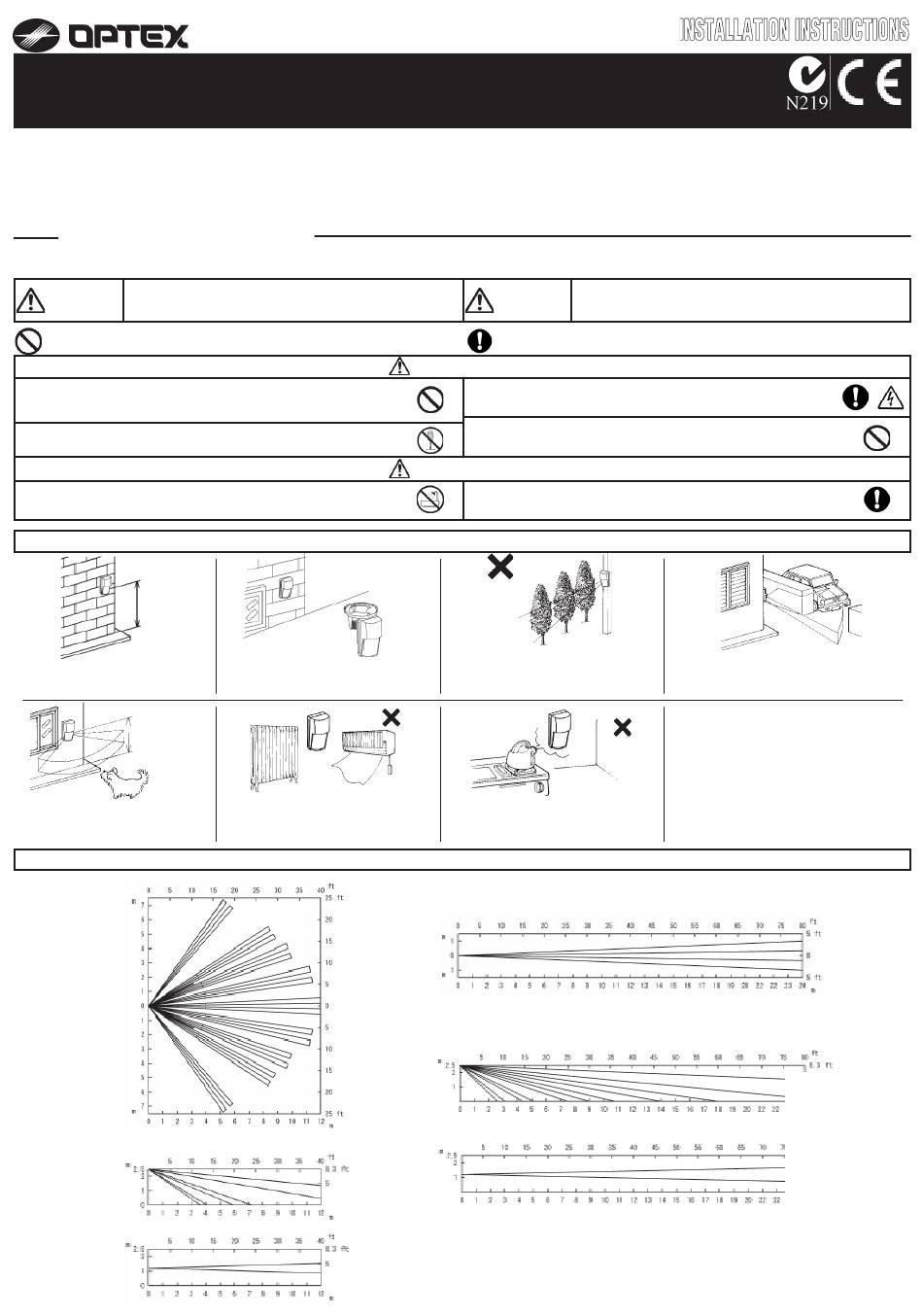

1.INSTALLATION HINTS
alarm shop
8.3 ft. (2.5m) max
Maximum mounting height is
8.3ft.(2.5m).
4-5 ft.
(1.2-1.5m)
When using the pet alley area,
the mounting height should be
between 4-5ft.(1.2-1.5m).
2.DETECTION AREA PATTERNS
LX-402
A. TOP VIEW
B. SIDE VIEW
1.Multi-Level Area
2.Pet Alley Area
FUNCTION
·Selectable Pluse Count ( TEST or 2 )
·Selectable Sensitivity ( H , M or L )
·Form• C Relay Output
·Tamper Switch
Mount the detector directly to a
wall or ceiling with the optional
bracket(model CA-1W or CA-2C).
Avoid looking directly at air
conditioning or heating vents.
LX-802N
A. TOP VIEW
B. SIDE VIEW
This icon denotes a situation involving the risk of serious
Caution
injury or damage to property if the warning given is ignored.
This icon indicates instructions that should be strictly followed.
Warning
To avoid the risk of electric shock, never touch the main
body of the product with wet hands (Also, if the product is
wet after rain, do not touch it).
Never connect the terminal with higher power supply or current
draw over the specification. It increases the risk of fire or damage
to the product.
Caution
Clean and inspect the device periodically for safe operation.
If any defect is detected, ask your local shop to repair the device.
Avoid moving objects in the
detection area (i.e.swaying
trees, bushes, etc.).
Avoid vapor or high humidity
that can cause condensation.
1.Multi-Level Area
2.Pet Alley Area
This product detects temperature differences between the moving object and the
background temperature in the detection area. So, if the object dose not move,
the detector can not detect it, and changing of the temperature differences may
affect the detector's detection range.
Additionally, since this product has directional characteristic it is difficult to detect
the target that is approaching the detector.
OPTION
·Ceiling Mount Bracket : CA-2C
·Multi-Angle Wall Mount Bracket :CA-1W
Adjust ±45° (Horizontally)
Adjust 0 - 20° (Vertically downwards)
Aim the detector at wall or the ground,
to aviod unwanted detection.
No.59-0961-1 010611
1 YEAR WARRANTY
