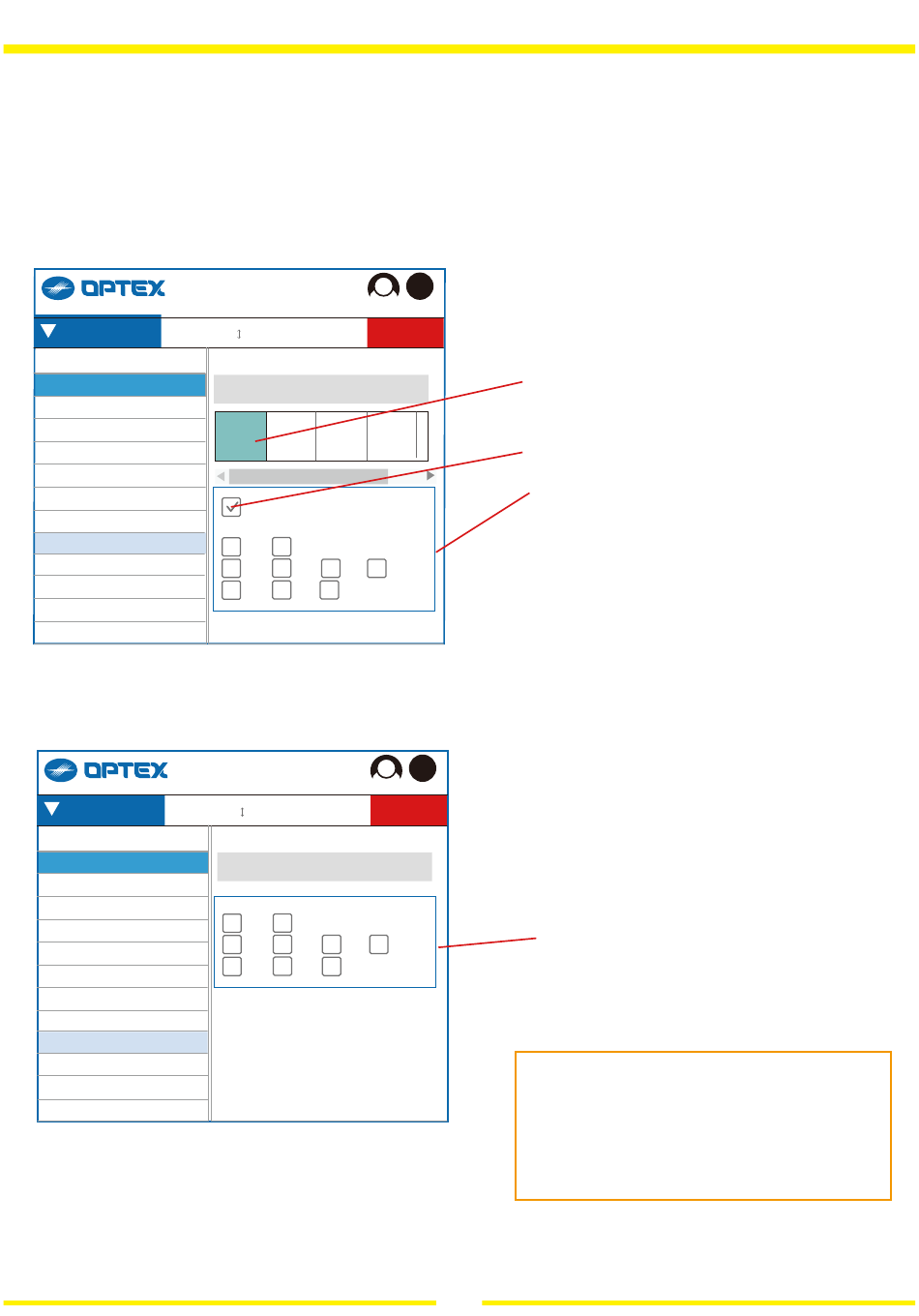

3-2. ONVIF menu on Profile 1 and 2

When set the "Always show advanced settings" to enable,
2 ONVIF menu items appear on each Profile 1 and 2.
Save
ONVIF digital inputs
DI#1 DI#2 DI#3 DI#4
1 2 3 4
Interlock with Outputs
A1 B1
AM AR SO DQ
TR TA DM
Save
ONVIF motion alarm
A1 B1
AM AR SO DQ
TR TA DM
?
4-2-6. ONVIF digital inputs
Can set the each terminal individually according
to the ONVIF format.
Select the terminal for settings
[ DI#1, 2, 3, 4, 5, 6 ]
Interlock with Outputs
Select events
[ A1, A11, A12, A21, A22, B1, B11, B12, B21, B22,
AM, AR, SO, DQ, TR, TA, DM ]
Respond when the selected event occurs.
The choices appear only when "Interlock with
Outputs" is not selected.
?
4-2-7. ONVIF motion alarm
Can set the ONVIF motion alarm responding to
the select events.
Select events
[ A1, A11, A12, A21, A22, B1, B11, B12, B21, B22,
AM, AR, SO, DQ, TR, TA, DM ]
Respond when the selected event occurs.
A1, A11, A12 .... B1, B11, B12 .....: Zone alarm
AM: Anti-Masking
DQ: Environmental Disqualification
MO: Master Alarm
TA: Tamper Output
14
R.E.C. (REDSCAN Event Code)
AR: Anti-Rotation
DM: Device Monitoring
SO: Soiling
TR: Device Trouble
3. ONVIF Settings
