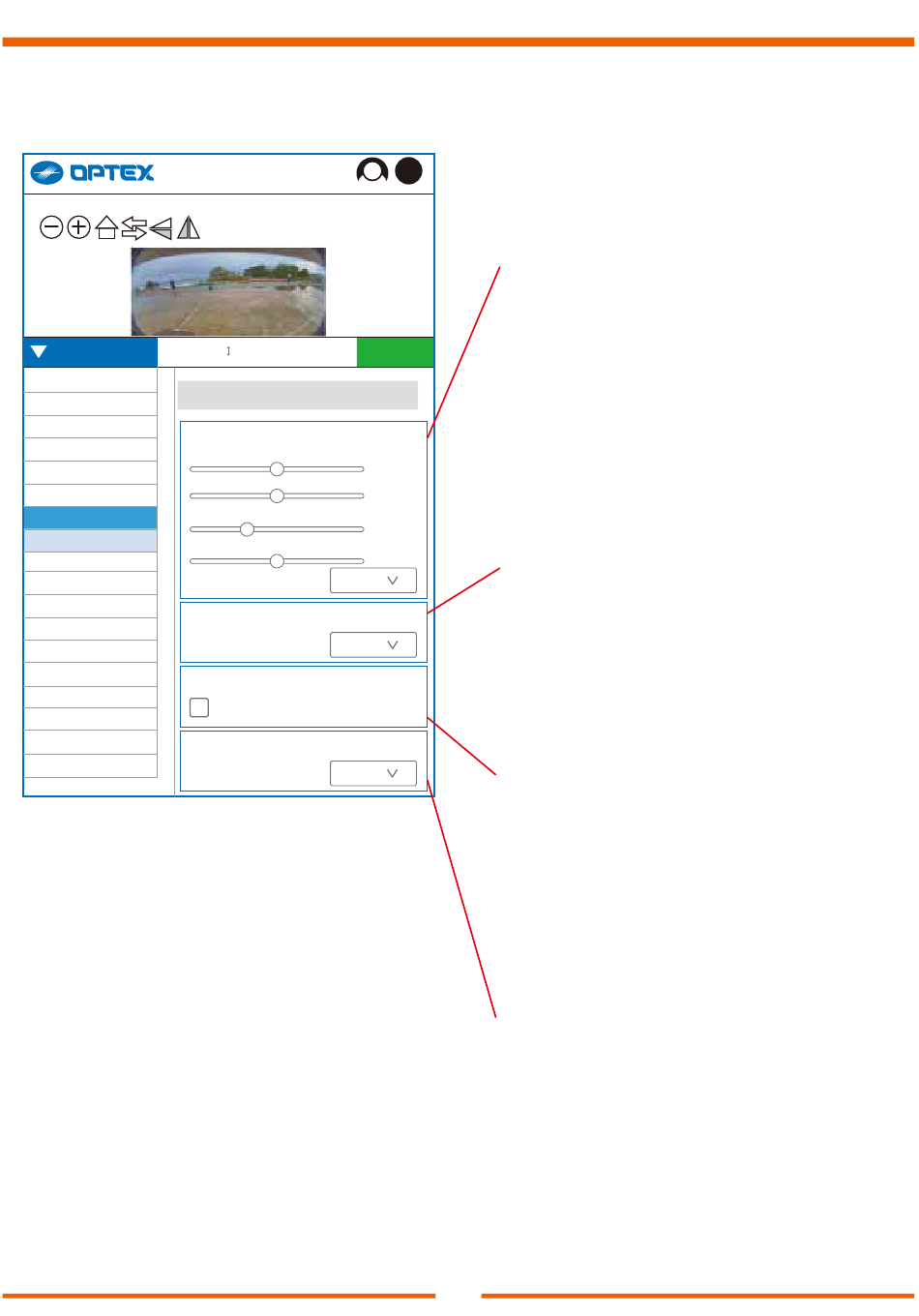

5-4. Camera settings
5-4-1.Image adjustment
Brightness
Contrast
Sharpness
Saturation
Distortion correction
Set it to "Auto" basically that applies an appropriate
correction according to the current installation angle.
50
"Horizontal" corrects the angle so that each direction
looks evenly spaced.
"Vertical" corrects so that the far side is easier to see.
64
Day/Night switch
Auto: Switching automatically according to the
ambient illuminance.
Night: It is fixed to a monochrome image so that
it can record even in low light.
Day: It is fixed to a color image regardless of
the ambient illuminance.
Wide dynamic range
Dynamic range is the difference in brightness between
the darkest and brightest parts of an image.
When it is turned on, it is corrected so that the
difference in brightness is reduced, and overexposure
and underexposure are less likely to occur.
It is recommended to turn it on under conditions where
there is a large difference in brightness.
Flicker correction
It should be same as the power frequency.
42
5. Advanced Settings
[ 0 to 100 ]
[ 0 to 255 ]
[ 0 to 255 ]
[ 0 to 255 ]
[ Auto, Vertical, Horizontal ]
[ Auto, Night, Day ]
[ 50 Hz, 60 Hz ]
