PHOTOELECTRIC DETECTOR
PHOTOELECTRIC DETECTOR
AX-70TN, AX-130TN, AX-200TN
AX-70TN, AX-130TN, AX-200TN
AX-100TF, AX-200TF
AX-100TF, AX-200TF
FEATURES
< AX-70/130/200TN, AX-100/200TF >
•High-performance waterproof structure
•Horizontal alignment dial for user-friendliness
•Adjustable beam interruption period
•Tamper function
•Optional Accessories : Heating unit (HU-3), Back cover (BC-3),
Pole side cover (PSC-3)
•UL Listed
CONTENTS
1-1 BEFORE YOUR OPERATION ............................... 2
1-2 PRECAUTIONS...................................................... 3
2 PARTS IDENTIFICATION............................................ 3
3-1 NOTE...................................................................... 4
3-2 INSTALLATION METHOD .................................... 4
4 WIRE CONNECTION ................................................... 6
5-1 OPTICAL ALIGNMENT .......................................... 7
5-2 BEAM INTERRUPTION TIME................................ 8
INSTALLATION INSTRUCTIONS
Model
Detection range
AX-70TN
20 m / 70 ft.
AX-130TN
40 m / 130 ft.
AX-200TN
60 m / 200 ft.
AX-100TF
30 m / 100 ft.
AX-200TF
60 m / 200 ft.
60 m / 200 ft.
< AX-100/200TF ONLY >
•4 selectable beam frequencies
•LED indicator for fine beam alignment level
•D.Q. circuit (Environmental disqualification)
•Alarm memory
6 WALK TEST................................................................. 9
7-2 ALARM MEMORY .................................................. 9
8-1 HEATING UNIT : HU-3......................................... 10
8-2 BACK COVER : BC-3........................................... 11
8-3 POLE SIDE COVER : PSC-3 ............................... 11
9 TROUBLESHOOTING ............................................... 12
10-1 SPECIFICATIONS.............................................. 13
10-2 DIMENSIONS & OPTION................................... 14
EN-1
No.59-2419-1 1701-31
UL
No.59-1282-7 0904-30
Feature
Standard model with
detection range
4 selectable beam
frequencies

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AX-70TN and is the answer not in the manual?

Questions and answers

Related Manuals for Optex AX-70TN

Summary of Contents for Optex AX-70TN

  • Page 1: Table Of Contents

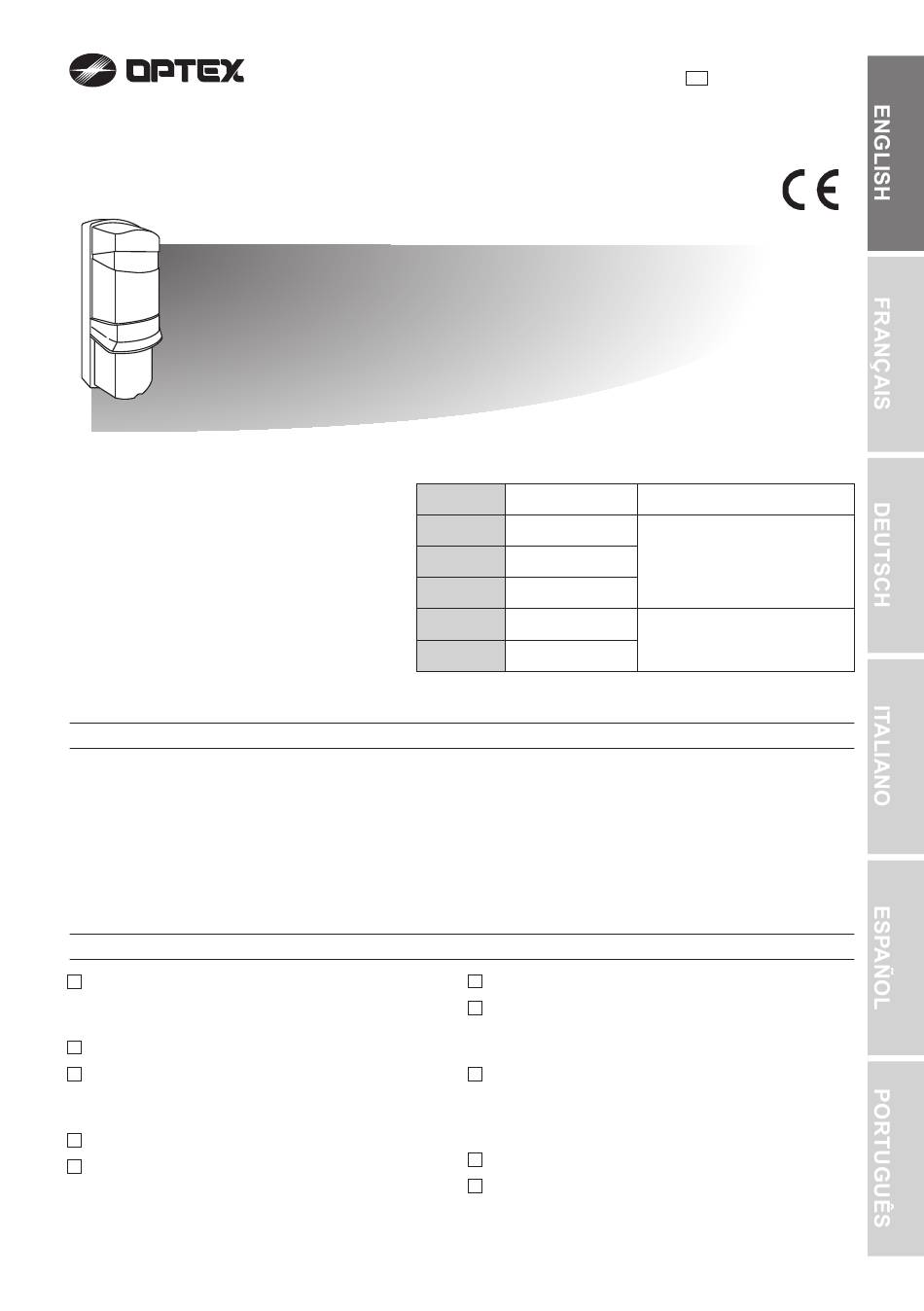

    No.59-2419-1 1701-31 No.59-1282-7 0904-30 INSTALLATION INSTRUCTIONS PHOTOELECTRIC DETECTOR PHOTOELECTRIC DETECTOR AX-70TN, AX-130TN, AX-200TN AX-70TN, AX-130TN, AX-200TN AX-100TF, AX-200TF AX-100TF, AX-200TF Model Detection range Feature AX-70TN 20 m / 70 ft. Standard model with AX-130TN 40 m / 130 ft. detection range AX-200TN 60 m / 200 ft.
