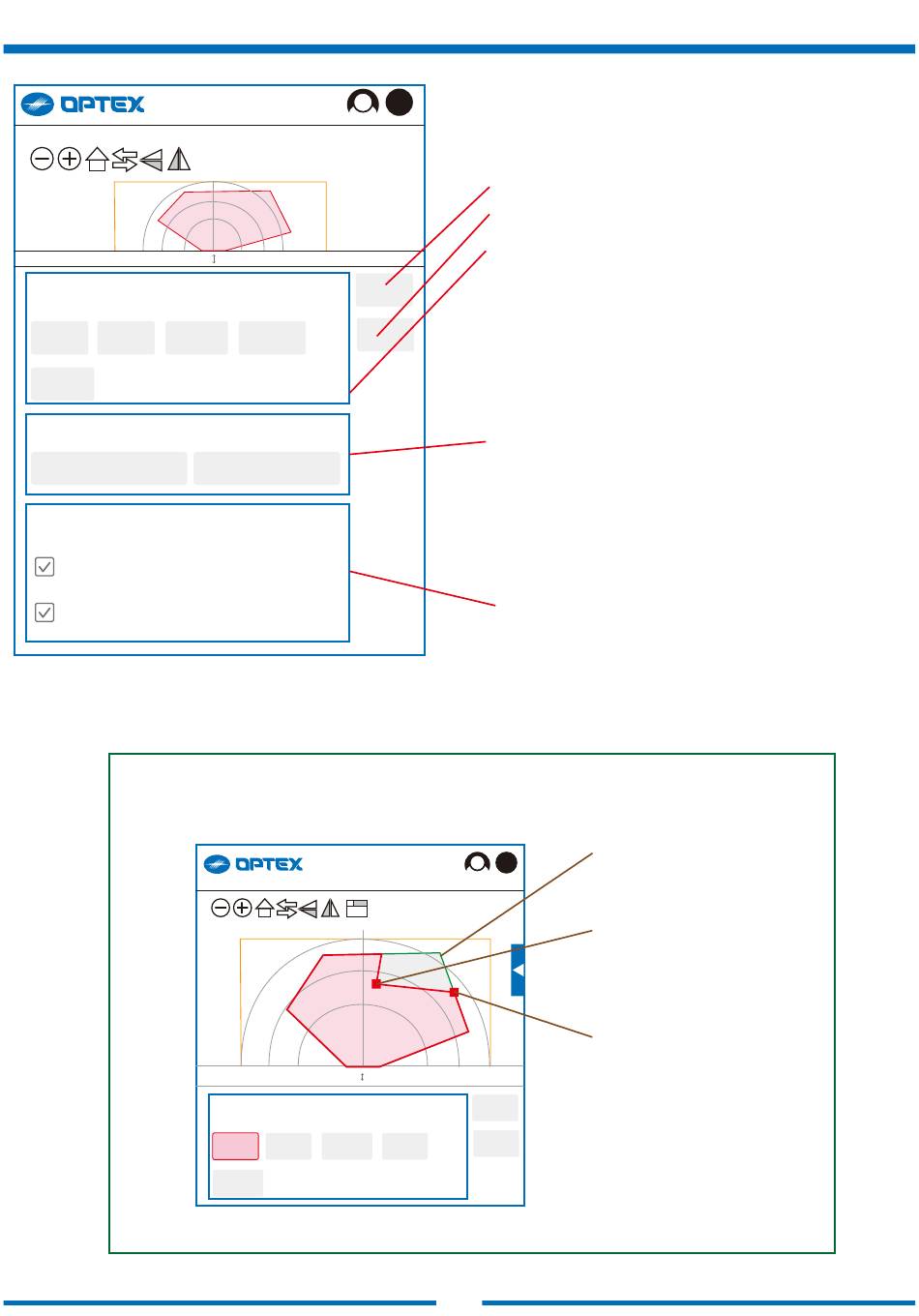

Tool
Crop Edit Delete
Redo
Restore
Saved sensing area
Display
Display sensing area.
Update the sensing area
OK
Cancel
Undo
All sensing area
RLS-50100V 3.x.x (xxxx/xx/xx)
Tool
Crop Edit Delete
Redo
?
* View window can be moved by dragging,
when any "tool" is not selected.
OK: save the edited results.
Cancel: undo the edited results.
Tool
Crop: cutting the detection area partially.
Edit: adjust the shape of the cutting area.
Delete: cancel the cutting of the detection area.
Undo: return to the previous shape of the detection area.
Redo: cancel "undo" .
--> See the Example bellow for details.
Restore
Saved sensing area:
revert the sensing area to the saved one.
All sensing area:
setting the detection area so as to cover all sensing areas.
Display
Display the sensing area.
Update the sensing area.
Example
?
OK
Cancel
Undo
19
Initial scan area
The shape at the time of area setting
is displayed in green line.
Cutting by "Crop"
The side farther than the cutting line
is excluded from the detection area.
Adjusting by "Edit"
The shape of the cutting area
can be adjusted.
