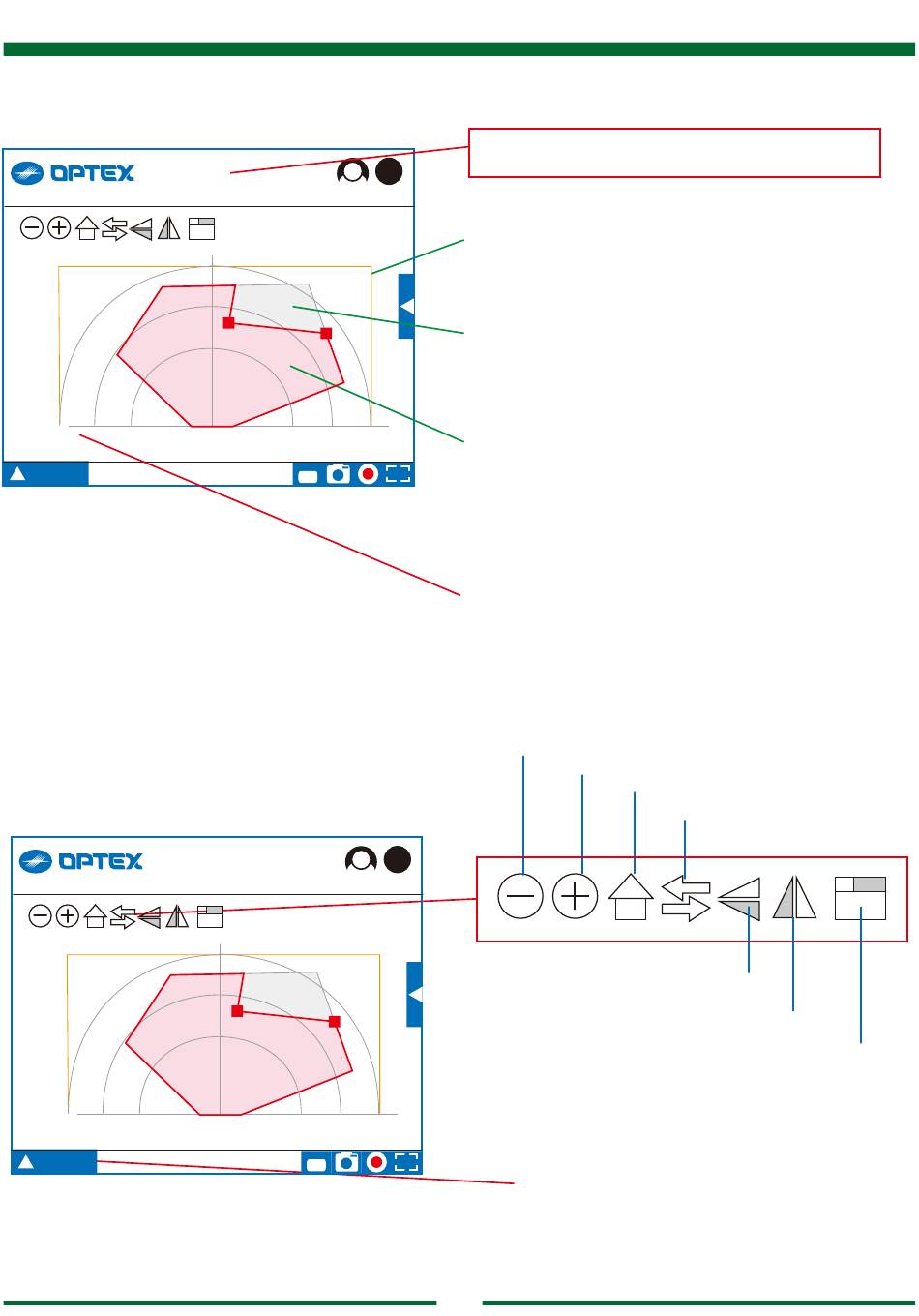

2. Display

RLS-50100V 3.x.x (xxxx/xx/xx)
Num X (mm) Y(mm) Size (mm)
002 -01203 02704 00284
001 -00939 01392 00248
000 -00864 00125 00110
settings
RLS-50100V 3.x.x (xxxx/xx/xx)
Num X (mm) Y(mm) Size (mm)
002 -01203 02704 00284
001 -00939 01392 00248
000 -00864 00125 00110
settings
?
Indication of the software version and the update date.
Detection range
Limit the detection area.
Sensing area
The location displayed in gray is the area actually detected
by the laser sensor.
Detection area
Profile You can create the detection area by processing the
1
sensing area, such as cutting, masking or allocating so on,
within the detection range.
Indicator of the intrusion number, location and size
?
Profile
1
10

2-1. Home view

RLS-50100V 3.x.x (xxxx/xx/xx)
Zoom out
Zoom in
Back to the home position
Call the setting window
Click to open the windows
for the settings.
Switching between the home view
and camera view
Flip vertical
Flip horizontal
Open the window for
the home view or the images
