Map - Optex REDSCAN Pro RLS-50100V Settings Manual

RLS-50100V 3.x.x (xxxx/xx/xx)
Apply settings
Detection range

Map

Detection profile 1
Map image
Detection profile 2
Event code
View
Select JPEG file
Laser
Upload JPEG file
Video
Delete
Map *
Menu
Displayed content
Date and Time
Edit display position
Network
Maintenance
Information
* = Ver.3.0 or later
RLS-50100V 3.x.x (xxxx/xx/xx)
Display settings
Size (%)
Angle 0.0
Color
scheme Pattern 1
Restore
Restore default
Display
Display sensing area
Update the sensing area
Revert
*
Enlarge image
None
Scan area
?
OK
Cancel
100.0
Reversed
display

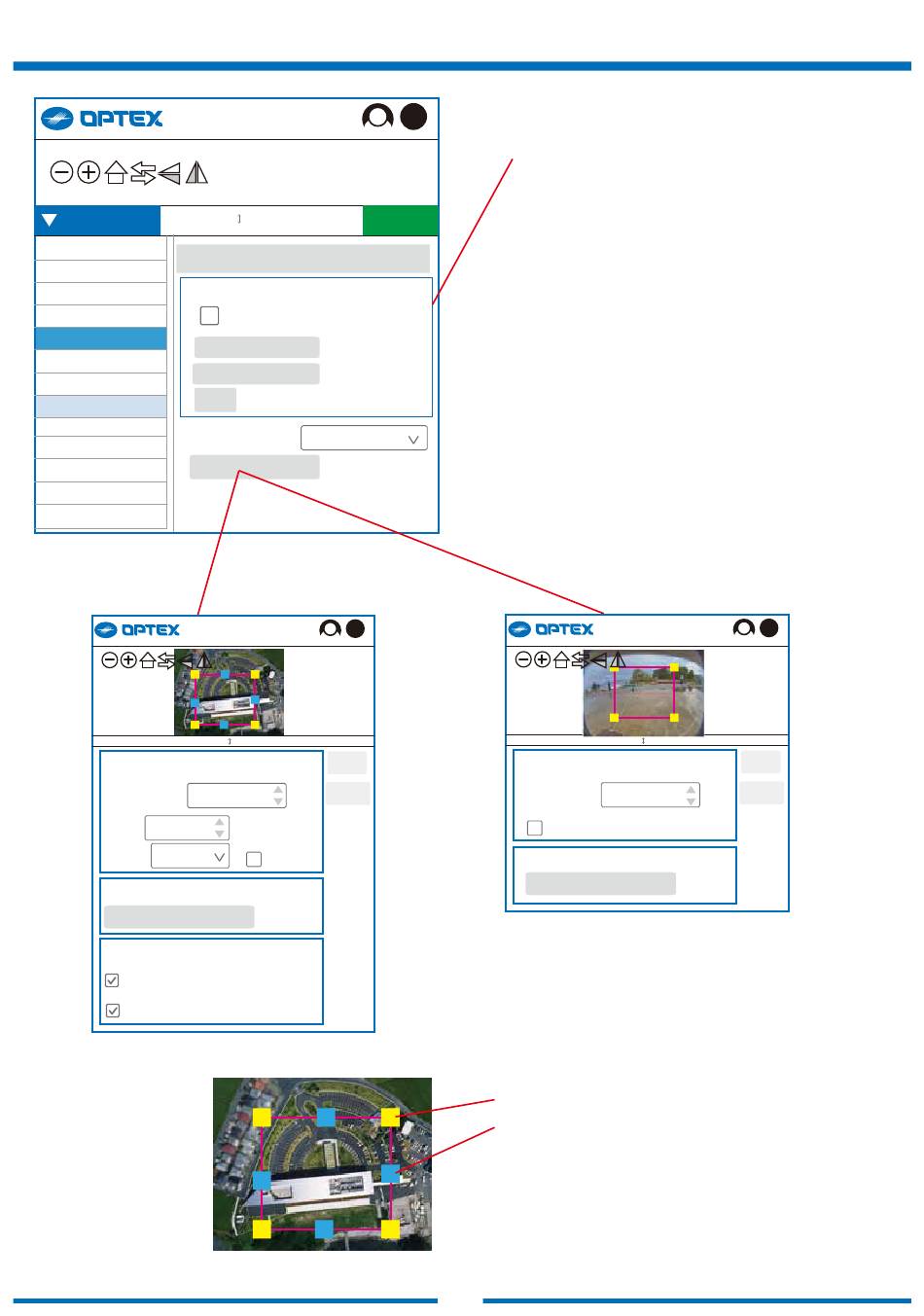

4-5-3. Map
?
Map image
Image display settings for the ONVIF distribution video.
JPEG files of prepared background images or bird's-eye
view images are displayed instead of the real time
camera images, enabling both detection area/intruding
object position display and privacy protection.
Enlarge image
Select JPEG file
Upload JPEG file
Delete
Displayed contents
Edit display position
Display settings
Size (%)
Reversed display
Restore
Restore default
Edit display position
Role of nodes
Yellow : Resize
Light blue : Rotation
32 32
*
(Ver.3.0 or later)
[ None, Scan area, Object position ]
Object position
RLS-50100V 3.x.x (xxxx/xx/xx)
OK
Cancel
100.0
(Displayed only when the "scan area" is selected.)
4. Settings
?
