5-4-2. Privacy mask
?
If you need to maintain privacy such as nearby facilities
or people, you can use the privacy mask function to mask
the specified area of the image.

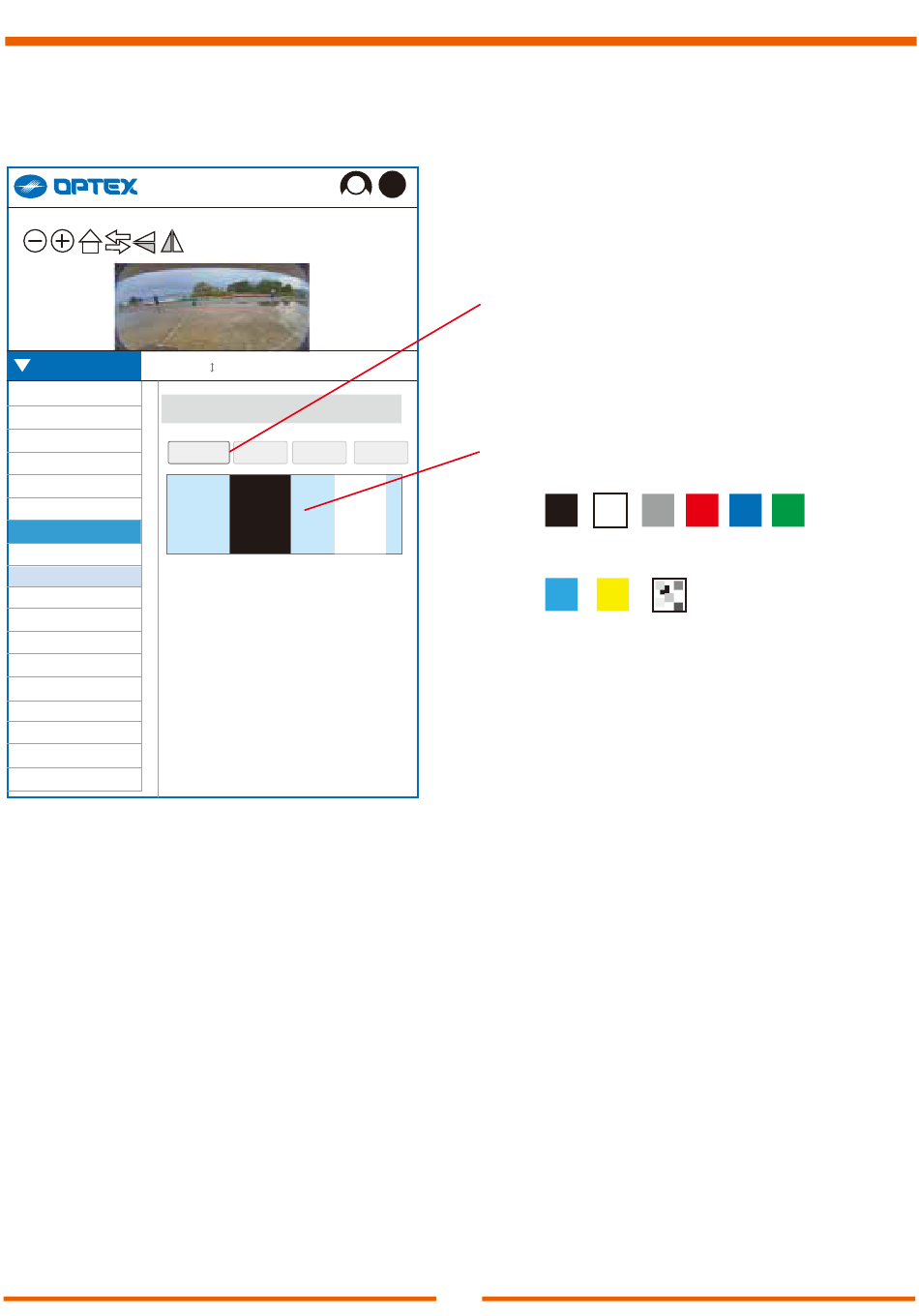

Masking configuration
Add: to add a masking area for the camera images
Delete: to delete a masking area of the camera images
To front: Move the selected privacy mask forward.
To back: Move the selected privacy mask back.
Mask # [ 0 to 7 ]
Color [ Black, White, Gray, Red, Blue, Green,
Cyan, Yellow, Mosaic ]
Save:
To save the masking configuration. Moving to the other
item without pressing "Save", the masking settings will
be restored.
Revert:
After confirming the settings by pressing "Save", the
"Revert" button will appear, allowing you to return to
the settings before editing.
