Detection Area - Optex REDSCAN Pro RLS-50100V Settings Manual

RLS-50100V 3.x.x (xxxx/xx/xx)
Saved.
Apply settings
Use the 'Apply settings' button after all
settings are finished.
Detection range
This will restart or reboot the detector.
Detection range
Detection profile 1
Detection profile 2
Event code
Detection mode
View
Detection method
Date and Time
Network
Maintenance
Information
RLS-50100V 3.x.x (xxxx/xx/xx)
Apply settings
Detection range
Detection profile 1

Detection area

Area Masking/Allocating
Detection
Detection advanced
Output terminal
Detection profile copy
Detection profile 2
Event code
View
Date and Time
Network
Confirm
Outdoor
OK
Auto
Detection range expansion
Area set
Save
Detection area
Detection range A (m) 50
Detection range B (m) 50
Height or Depth (m) 50
Offset (mm) 500
Edit area
?
Save

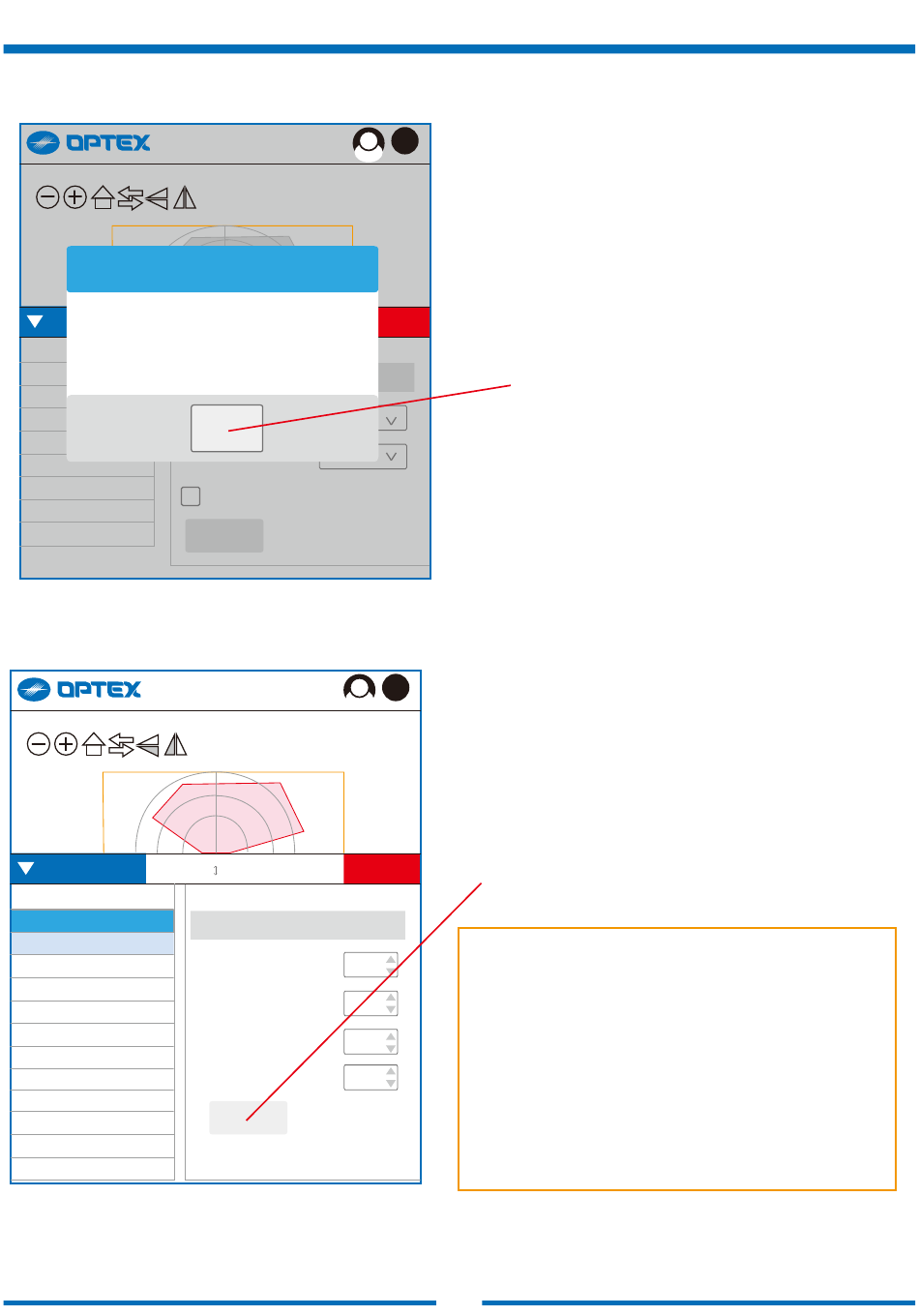

Confirmation 3
Final confirmation of the detection range settings,
after saving them.
4-2. Detection profile 1
?
4-2-1. Detection area
Detection range A
Detection range B
Height or Depth
Offset (mm) [ 0 to 1,000 (= 1 m) ]
Edit area
Open the separate window to edit the detection area.
Detection Range
Detection area can be limited by "range A" , "range B" and
"Height or Depth." Yellow line will indicate the effective
detection range after settings are completed.
Offset
Perimeter of detection area near background can be
excluded by the Offset distance. In vertical mode,
obstacles on the ground or floor can generate false alarm.
Also, plants and small animals can cause false alarm.
18
RLS-50100V RLS-3060V
(m) [ 0 to 50 ] [ 0 to 30 ]
(m) [ 0 to 50 ] [ 0 to 30 ]
(m) [ 0 to 50 ] [ 0 to 30 ]
4. Settings
