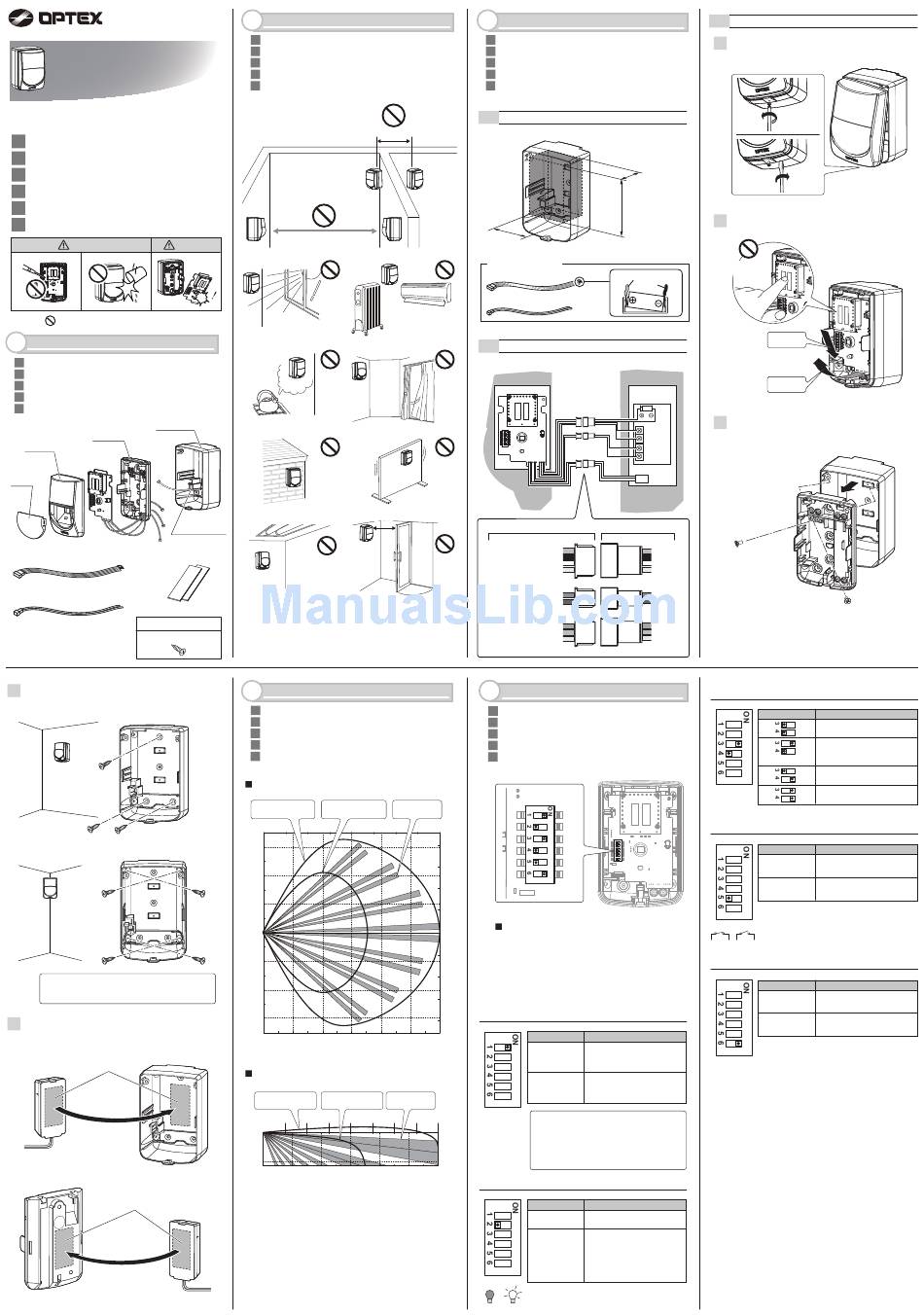

Optex RXC-RDT-X5 Installation Instructions

No. 59-2043-4 1703-16

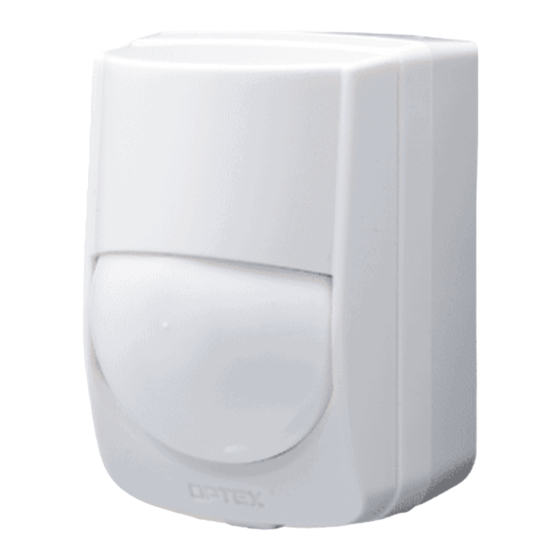

BATTERY OPERATED PIR / MICROWAVE COMBINATION DETECTOR
BATTERY OPERATED PIR / MICROWAVE COMBINATION DETECTOR
RX CORE SERIES
RX CORE SERIES
RXC-RDT
RXC-RDT
RXC-RDT-X5: 10.525 GHz
RXC-RDT-X8: 10.587 GHz
INSTALLATION INSTRUCTIONS
EN
FR CONSIGNES D'UTILISATION
DE INSTALLATIONSANLEITUNG
ISTRUZIONI INSTALLAZIONE
IT
ES INSTRUCCIONES DE INSTALACIÓN
INSTRUÇÕES DE INSTALAÇÃO
PT
Warning Caution
The nix sign indicates prohibition.
1
PARTS IDENTIFICATION
Identification des pieces
FR
Teilekennzeichnung
DE
Descrizione delle parti
IT
Identificación de las partes
ES
Identificação das partes
PT
Back Box
Chassis
Cover
Lens
Wall tamper
Velcro tape
Connector for POWER and ALARM
Connector for TROUBLE
Screw kit
For wall mounting
Screw (3 × 16 mm) ×3
4 Mount the back box to the wall.
Backside mounting >>
Corner mounting >>
Note>>
Mounting screws are not included.
5
Mount the Wireless transmitter to the backbox
or backside of the chassis.
Back box >>
Velcro tape
transmitter
Backside of the chassis >>
Velcro tape
transmitter
2
INSTALLATION HINTS
Conseils d'installation
FR
Installations-Tipps
DE
Indicazioni installazione
IT
Recomendaciones de instalación
ES
Dicas de instalação
PT
<1m
<1m <1m
Note>>
RXC-RDT shall be mounted in a position where
expected intrusion is in perpendicular the
detection patterns.
4
DETECTION ZONE
Zone de détection
FR
Erfassungsbereich
DE
Zone di rilevazione
IT
Zona de detección
ES
Zona de detecção
PT
TOP VIEW
MW Long MW Short PIR
5 10 15 20 25 30 35
6 m
4
2
0
2
4
6 m
2 4 6 8 10
SIDE VIEW
MW Short PIR
MW Long
5 10 15 20 25 30 35
0
2.4 m
8 10
0 2 4 6
3
INSTALLATION
Installation
FR
Installation
DE
Installazione
IT
Instalación
ES
Instalação
PT
3-1 WIRELESS TRANSMITTER PREPARATION
44 (1.73)
Connectors to be used
Connector for POWER and ALARM
Connector for TROUBLE
3-2 WIRING DIAGRAM
Main unit
Main unit side
Red: Power input (+)
Black: Power input (-)
White: Alarm
Yellow: Alarm
Green: Trouble
Blue: Trouble
Brown: Wall tamper
Orange: Wall tamper
Gray: Wall tamper
5
SWITCH SETTING
Reglagles des interrupteur DIP
FR
Schaltereinstellungen
DE
Impostazione dei selettori
IT
Ajuste del conmutador DIP
ES
Ajuste da chave DIP
PT
40 ft
20 ft
15
10
5
DIP switch
0
1 WALK TEST MODE
2 LED
5
3,4 PIR SENSITIVITY
10
5 ALARM & TROUBLE OUTPUT
6 MICROWAVE RANGE
15
-WALK TEST MODE
20 ft
12 m POSITION
The LED lights irrespective of
TEST
the DIP switch 2 (LED)
(Factory default)
setting.
The LED lights depending on
NORM the DIP switch 2 (LED)
setting.
40 ft
NORM ⇔ TEST
Note>>
Once any output is activated, the
battery saving circuit requires 2
minutes of inactivity before the next
output.
8 ft
12 m
-LED
POSITION
ON
LED ON
LED OFF
Note>>
OFF
If the LED lights, check the
(Factory default)
DIP switch 1 (WALK TEST
MODE) setting.
OFF ⇔ ON
3-3 MOUNTING
1
Remove the cover.
Loosen
30 (1.18)
92 (3.62)
2 Remove the board.
Unit: mm (inch)
Do not
touch
How to position a battery
Red
Black
Push
Back box
Pull
Wireless
transmitter
3
Separate the chassis from the back box.
Alarm
Trouble
Wall tamper
Transmitter side
Red
Black
White
Yellow
Green
Blue
Brown
Orange
Gray
-PIR SENSITIVITY
POSITION
(Factory default)
-ALARM & TROUBLE OUTPUT
POSITION
N.O.
N.C.
(Factory default)
N.C. ⇔ N.O.
-MICROWAVE RANGE
POSITION
LONG
(Factory default)
DIP switch 1
SHORT
FUNCTION
SHORT ⇔ LONG
DIP switch 2
FUNCTION
Twist
DIP switch 3,4
FUNCTION
Low sensitivity
Middle sensitivity
High sensitivity
Super High sensitivity
DIP switch 5
FUNCTION
N.O. output
N.C. output
DIP switch 6
FUNCTION
12 m (40 ft)
7 m (24 ft)
