Masking/ Allocating - Optex REDSCAN Pro RLS-50100V Settings Manual

RLS-50100V 3.x.x (xxxx/xx/xx)
Apply settings
Detection range
Detection profile 1
Detection area
Area Masking/Allocating
Detection
Detection advanced
Output terminal
Detection profile copy
Detection profile 2
Event code
View
Date and Time
Network
RLS-50100V 3.x.x (xxxx/xx/xx)
Masking selection
Masking Eraser
Tool
Pen Rectangle
Edit
Undo Redo
Display
Display sensing area.
Update the sensing area
Save
Area masking/Allocating
Mode None
Edit
OK
Cancel
?

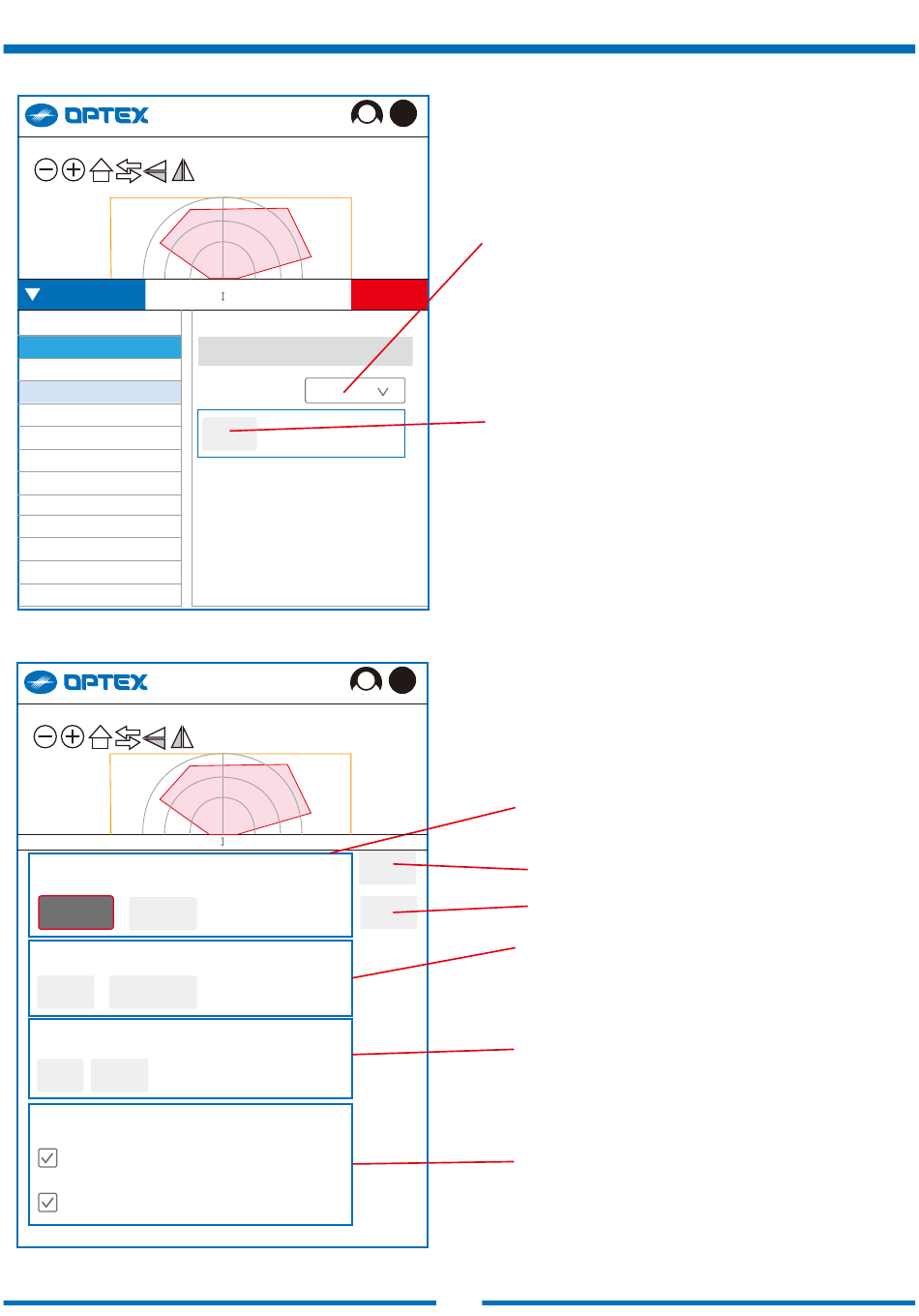

4-2-2. Masking/ Allocating

Mode [ None, Mask, Allocating ]
Mask: masking area is available to ignore some
area and reduce false alarm.
Allocating:
distinguish where objects are detected.
Edit the masking/ allocating
Open the separate window to edit masking/allocating.
?
4-2-2-1. Masking
* View window can be moved by dragging,
when any "tool" is not selected.
Masking selection
Select masking or erasing.
Save the edited results.
Cancel the edited results.
Tool
Select Pen or Rectangle.
--> See the explain on the next page for details.
Edit
Undo:
Redo:
Display
Display the sensing area.
Update the sensing area.
20
allocated areas are available to
return to the previous settings.
cancel "undo" .
4. Settings
