No. 59-3404-0
EN

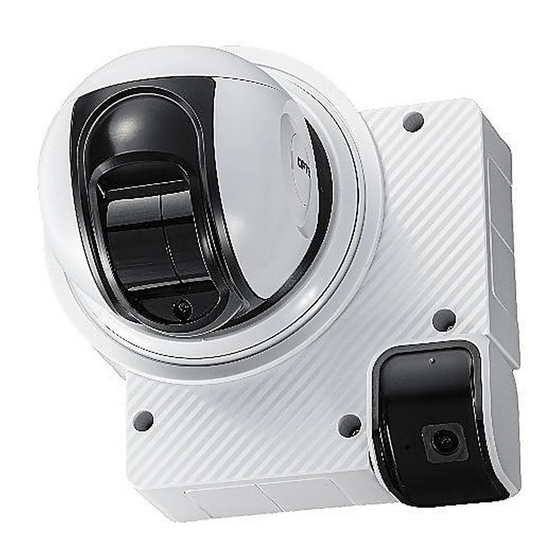

REDSCAN mini-Pro
RLS-2020V/RLS-2020A
RLS-2020A
RLS-2020V
To find out useful hints, tips and information about OPTEX products and services,
please visit www.optex.net
EN-1

Advertisement

loading
Need help?

Need help?

Do you have a question about the REDSCAN mini-Pro Series and is the answer not in the manual?

Questions and answers

Related Manuals for Optex REDSCAN mini-Pro Series

Summary of Contents for Optex REDSCAN mini-Pro Series

  • Page 1 No. 59-3404-0 REDSCAN mini-Pro RLS-2020V/RLS-2020A RLS-2020A RLS-2020V To find out useful hints, tips and information about OPTEX products and services, please visit www.optex.net EN-1...
  • Page 2 Size = T-20H Spare parts for installations Purchase separately as necessary Area checking Laser Area Checker LAC-1 optional parts provided by OPTEX Maintenance Size = T-10H for maintenance Laser Window RLS-LW maintenance parts provided by OPTEX RLS-PB2...
  • Page 3 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS Parts identification Base unit Fixing ring Side cover cap Terminal cover Side cover S Side cover cap Main unit Side cover L EN-3...
  • Page 4 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS Disassembly Just loosen Do not remove EN-4...
  • Page 5 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS EN-5...
  • Page 6 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS Just loosen Do not remove EN-6...
  • Page 7 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS EN-7...
  • Page 8 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS EN-8...
  • Page 9 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS Transformation Wall mount Ceiling mount Pole mount RLS-2020V Type A Type B Type C RLS-2020A Type A Type B Type C EN-9...
  • Page 10 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS RLS-2020V RLS-2020A eiling eiling Type A Type B Type C EN-10...
  • Page 11 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS RLS-2020V RLS-2020A eiling eiling Type A Type B Type C Just loosen Do not remove EN-11...
  • Page 12 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS RLS-2020V RLS-2020A eiling eiling Type A Type B Type C EN-12...
  • Page 13 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS RLS-2020V RLS-2020A eiling eiling Type A Type B Type C EN-13...
  • Page 14 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS RLS-2020V RLS-2020A eiling eiling Type A Type B Type C Just loosen Do not remove EN-14...
  • Page 15 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS RLS-2020V RLS-2020A eiling eiling Type A Type B Type C EN-15...
  • Page 16 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS RLS-2020V RLS-2020A eiling eiling Type A Type B Type C EN-16...
  • Page 17 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS RLS-2020V RLS-2020A eiling eiling Type A Type B Type C EN-17...
  • Page 18 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS RLS-2020V RLS-2020A eiling eiling Type A Type B Type C EN-18...
  • Page 19 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS RLS-2020V RLS-2020A eiling eiling Type A Type B Type C Side cover S Side cover L EN-19...
  • Page 20 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS RLS-2020V RLS-2020A eiling eiling Type A Type B Type C EN-20...
  • Page 21 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS RLS-2020V RLS-2020A eiling eiling Type A Type B Type C Counter clockwise Clockwise EN-21...
  • Page 22 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS RLS-2020V RLS-2020A eiling eiling Type A Type B Type C RLS-2020V RLS-2020A eiling eiling Type A Type B Type C EN-22...
  • Page 23 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS RLS-2020V RLS-2020A eiling eiling Type A Type B Type C Tilt EN-23...
  • Page 24 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS RLS-2020V RLS-2020A eiling eiling Type A Type B Type C EN-24...
  • Page 25 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS RLS-2020V RLS-2020A eiling eiling Type A Type B Type C EN-25...
  • Page 26 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS RLS-2020V RLS-2020A eiling eiling Type A Type B Type C Side cover S Side cover L Side cover S RLS-2020V RLS-2020A eiling eiling Type A Type B Type C EN-26...
  • Page 27 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS RLS-2020V RLS-2020A eiling eiling Type A Type B Type C EN-27...
  • Page 28 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS RLS-2020V RLS-2020A eiling eiling Type A Type B Type C Counter clockwise Clockwise EN-28...
  • Page 29 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS RLS-2020V RLS-2020A eiling eiling Type A Type B Type C EN-29...
  • Page 30 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS Mounting RLS-2020V RLS-2020A eiling eiling Type A Type B Type C EN-30...
  • Page 31 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS Ceiling mount Pole mount Wall mount EN-31...
  • Page 32 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS RLS-2020V RLS-2020A eiling eiling Type A Type B Type C EN-32...
  • Page 33 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS RLS-2020V RLS-2020A eiling eiling Type A Type B Type C RLS-PB2 optional parts provided by OPTEX EN-33...
  • Page 34 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS EN-34...
  • Page 35 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS EN-35...
  • Page 36 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS Click ! EN-36...
  • Page 37 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS EN-37...
  • Page 38 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS Click ! EN-38...
  • Page 39 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS EN-39...
  • Page 40 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS EN-40...
  • Page 41 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS 7 to 15 mm ( 0.27 to 0.59 in.) EN-41...
  • Page 42 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS EN-42...
  • Page 43 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS Area adjustment Just loosen Do not remove EN-43...
  • Page 44 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS RLS-2020V RLS-2020A eiling eiling Type A Type B Type C EN-44...
  • Page 45 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS RLS-2020V RLS-2020A eiling eiling Type A Type B Type C EN-45...
  • Page 46 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS Laser area adjustment with optional area checker LAC-1 EN-46...
  • Page 47 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS RLS-2020V RLS-2020A eiling eiling Type A Type B Type C EN-47...
  • Page 48 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS EN-48...
  • Page 49 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS Settings Default IP: 192.168.0.126 Subnet mask: 255.255.255.0 Default user name: root Support web browser: Chrome (running on Windows 10 or later, Mac, Android) https://navi.optex.net/manual/50500 Important Product Information Setting Manual Installation Instruction Quick Installation Setting Manual LangSelection EN-49...
  • Page 50 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS Detection range RLS-2020V/RLS-2020A 30 m max (approx. 100 ft.) 20 m max (approx. 65 ft.) 20 m max (approx. 65 ft.) Approx. 400 mm (15.7 in.) at 20 m (65 ft.) 30 m max (approx. 100 ft.) Approx.
  • Page 51 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS Parts layout inside the cover and their functions Inside the base RS-485 Signal Input 1 to 2 Signal Output 1 to 6 Ethernet Port Power Input The length of the power wire must be less than the figures listed below. Detector Wire 24 V DC...
  • Page 52 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS Parts layout inside the cover and their functions Output terminal Power 1 Output; N.O./N.C. The six output terminals can be configured as N.O./N.C. They are however fixed as open when the unit is not energized. The outputs are programmable from options below. Alarms Troubles - Master alarm (MO)
  • Page 53 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS Parts layout inside the cover and their functions Ethernet Port (PoE) The Ethernet Port inside the base is for constant connection. PoE is supported. Default - IP address : 192.168.0.126 - Subnet mask : 255.255.255.0 - Default gateway : 192.168.0.1 Powering ON Startup conditions...
  • Page 54 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS Parts layout inside the cover and their functions Reset button If you forget your IP address or password, you can initialize it by following the steps below. Rest button 1. Turn Off the Power supply. Remove the terminal cover. 2.
  • Page 55 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS Yellow Green Blink Light Detector condition Warm-up (approx. 70 s) Stand-by Area setting Alarm Reset completed (by RESET button) Green blinks once. Yellow blinks once. Anti-masking Repeat Anti-rotation Green blinks once. Yellow blinks twice. Repeat Soiling Yellow blinks 3 times Green blinks once.
  • Page 56 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS Trouble condition Camera error Green blinks once. Red blinks twice. Repeat Over heat Green blinks once. Red blinks 3 times Repeat Hardware error Green blinks once. Redblinks 4 times Repeat Others Green blinks once. Red blinks once. Repeat EN-56...
  • Page 57 ONVIF and RTSP REDSCAN mini-Pro series supports ONVIF and RTSP. Client application can get video stream of embedded camera in REDSCAN mini-Pro series. Username and password are common to ONVIF and RTSP. Even if ONVIF is not used, create ONVIF account by the sequence above to use RTSP authentication.
  • Page 58 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS Repainting Paint the following parts. (refer to marks as follows) Use the suitable paint for poly-carbonate resin. Note >> Do not paint the main unit, or the base unit. Painting the RLS-2020V/2020A a dark color could raise the internal temperature and cause a malfunction. Painting should be avoided if there is any possibility that the unit would be exposed to direct sunlight.
  • Page 59 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS Purchase separately as necessary Maintenance Size = T-10H Front cover Maintenance port IP address: 192.168.1.126 Laser window EN-59...
  • Page 60 REDSCAN mini-Pro INSTALLATION INSTRUCTIONS Purchase separately as necessary Size = T-10H Maintenance EN-60...
