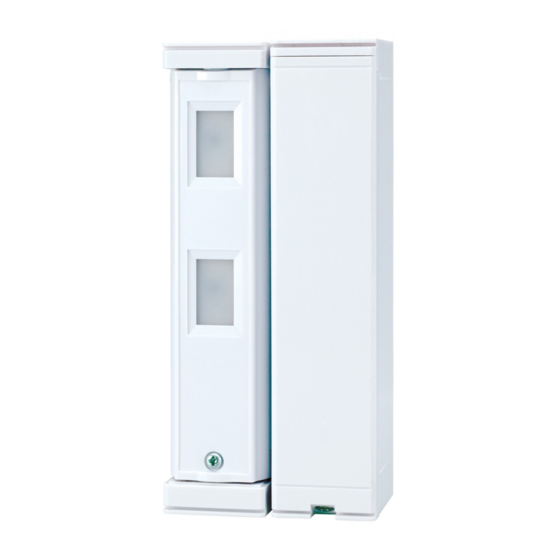

Compact outdoor
Compact outdoor
detector
detector
fit series
fit series
FTN-R
Battery operated model with 2 PIRs
FTN-RAM
FTN-R with anti-masking
•
Long battery life
•
Easy wiring by a connector
•
Multi fixing transmitter box
•
Compact design
•
190° adjustable bracket
•
Intelligent AND logic
•
Digital anti-masking (RAM model)
•
Wall tamper (option)
INSTALLATION INSTRUCTIONS
CONTENTS
1 INTRODUCTION
1-1 BEFORE INSTALLATION ................2
1-2 PARTS IDENTIFICATION ................3
1-3 DETECTION AREA..........................4
2 INSTALLATION
2-1 WIRING DIAGRAM..........................4
2-2 TRANSMITTER PREPARATION .....5
2-3 BEFORE WALL MOUNTING ...........6
2-4 STACKING METHOD ......................7
2-5 SIDE-BY-SIDE AND
TOP-TO-BOTTOM METHOD ........ 11
3 WALK TEST
3-1 WALK TEST ...................................13
4 DIP SWITCH SETTING
4-1 WALK TEST MODE .......................14
4-2 BATTERY SAVING TIMER ............14
4-3 ALARM & TROUBLE OUTPUT ......14
4-4 LED ................................................15
4-5 PIR SENSITIVITY ..........................15
4-6 ANTI-MASKING .............................15
5 OTHERS
5-1 WALL TAMPER (OPTION)
CONNECTION...............................16
5-2 LED LIGHT PATTERN ...................16
6 BATTERY
6-1 HOW TO REPLACE BATTERY .....17
6-2 BATTERY LIFE ..............................18
7 SPECIFICATIONS
7-1 SPECIFICATIONS .........................19
7-2 DIMENSIONS ................................20
- 1 -
NO.59-1646-0 091201
N219
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Optex FTN-R
Summary of Contents for Optex FTN-R
- Page 1 N219 fit series fit series CONTENTS FTN-R Battery operated model with 2 PIRs 1 INTRODUCTION FTN-RAM FTN-R with anti-masking 1-1 BEFORE INSTALLATION ....2 1-2 PARTS IDENTIFICATION ....3 • Long battery life 1-3 DETECTION AREA......4 2 INSTALLATION • Easy wiring by a connector 2-1 WIRING DIAGRAM......4...
- Page 2 INTRODUCTION BEFORE INSTALLATION Failure to follow the instructions provided with this indication and improper Warning handling may cause death or serious injury. Failure to follow the instructions provided with this indication and improper Caution handling may cause injury and/or property damage. The check mark indicates recommendation.
- Page 3 PARTS IDENTIFICATION Bracket Separate box Sponge Main unit Separate box cover Main unit cover Lens Sponge Separate box tamper Fixture Sponge for transmitter Connector for POWER and ALARM Connector for TROUBLE Screw kit For joint For wall mounting Screw (M3 × 10 mm) Screw (3 ×...
- Page 4 DETECTION AREA Top view Side view (ft.) 5 m detection length (ft.) (ft.) 0' (ft.) Adjustable range: 95° (by 5° pitch) 2'7" 3'3" 3'11" 2 m detection length (ft.) Adjustable range: 95° (by 5° pitch) 0' (ft.) 2'7" 3'3" 3'11" INSTALLATION WIRING DIAGRAM -Overall wiring diagram...
- Page 5 TRANSMITTER PREPARATION The transmitter used should have the internal dimensions of H 130 × W 30 × D 35 mm. (H 5.12" × W 1.18" × D 1.38") Unit: mm (inch) 35 (1.38") 130 (5.12") 30 (1.18") Connectors to be used Connector for POWER and ALARM How to position a battery Black...
-
Page 6: Before Wall Mounting
BEFORE WALL MOUNTING Open the main unit cover. Remove the fixture. Fixture Fixture Hold the top of the bracket and Open the separate box. remove the main unit. Bracket Bracket Main unit Main unit Note>> Note>> • Be sure to keep connectors installed •... - Page 7 Select the mounting method. Stacking method Side-by-side method Top-to-bottom method (Page 7) (Page 11) (Page 11) Note>> • Be sure to mount the main unit on the top. STACKING METHOD For the side-by-side method and the top-to-bottom method, refer to page 11. Open the knockout.
- Page 8 Attach the separate box cover and the bracket. Screw (3 × 10 mm) Screw (3 × 10 mm) Sponge Sponge Plate nut Plate nut Wiring Wiring Sponge Sponge Double-sided tape for Double-sided tape for temporary fixing temporary fixing Screw (3 × 10 mm) Screw (3 ×...
- Page 9 Notes>> Connect the connectors. • The tamper output is not exclusive. The Anti-masking and Tamper circuits share Separate box side Separate box side Main unit side Main unit side the Trouble output. • For the wall tamper wiring connection Red: Red: Power input (+) Power input (+)
- Page 10 Determine the detection length. (2 m or 5 m) If 2 m is required, rotate the lower lens 180 degrees. Note>> • Do not remove the upper lens. 5 m detection length 2 m detection length (Factory default) Side view Side view (ft.) (ft.)
- Page 11 SIDE-BY-SIDE AND TOP-TO-BOTTOM METHOD For the stacking method, refer to page 7. Open the knockout. Pull the wire connectors through wiring knockout. Separate box Separate box Main unit Main unit Separate box Separate box (Back surface) (Back surface) (Back surface) (Back surface) Wall mounting Wall mounting...
- Page 12 Hold the top part of the bracket and Connect the connectors. mount the main unit. Separate box side Separate box side Main unit side Main unit side Red: Red: Power input (+) Power input (+) Black Black Black: Black: Power input (-) Power input (-) White White...
-
Page 13: Walk Test
WALK TEST WALK TEST Set the DIP switch 1 (WALK TEST Check that LED lights for 2 seconds MODE) to “ON (TEST)”. when the intended object is detected. DIP switch DIP switch Detected Not detected Note>> • The switch is set to “ON (TEST)” by factory default. -
Page 14: Walk Test Mode
3 ALARM & TROUBLE OUTPUT 4 LED 5 PIR SENSITIVITY ●: Factory default 6 ANTI-MASKING Do not touch the PCB except for the DIP switch. FTN-R WALK TEST MODE DIP switch 1 FTN-RAM Position Function TEST • The LED lights irrespective of the DIP TEST switch 4 (LED) setting. -
Page 15: Pir Sensitivity
FTN-R DIP switch 4 FTN-RAM Position Function LED ON LED OFF Note>> (Factory • If the LED lights, check the DIP default) switch 1 (WALK TEST MODE) setting. FTN-R PIR SENSITIVITY DIP switch 5 FTN-RAM Position Function (Factory Normal sensitivity... -
Page 16: Wall Tamper (Option Connection
OTHERS WALL TAMPER (OPTION) CONNECTION Connect the tamper connector as shown below when connecting a wall tamper (option). Separate box side Main unit side Wall tamper (option) WRS-03 Mounting position Stacking method Side-by-side method and top-to-bottom method Separate box Bracket Sponge Sponge LED LIGHT PATTERN... - Page 17 BATTERY The detector shares the battery with the transmitter. Check that the 2.5 to 10.0 V power battery is used for the transmitter. HOW TO REPLACE BATTERY Open the separate box, and Replace the battery. disconnect the transmitter connector. (It is not necessary for the main unit Black to be opened.) Side-by-side method and...
-
Page 18: Battery Life
BATTERY LIFE The values indicated are only for reference on condition that the detector is exceptionally operated by the sole battery. It is impossible to indicate the battery life under the normal operation as the battery in the transmitter is shared with the detector. Interval 120 sec Interval 5 sec CR123A (3 V, 1300 mAh) -
Page 19: Specifications 7-1 Specifications
SPECIFICATIONS SPECIFICATIONS Model FTN-R FTN-RAM Detection method Passive infrared PIR coverage 5 × 1 m (16'5" × 3'3") Detection length limit 2 m, 5 m (6'7", 16'5") Detectable speed 0.3 – 1.5 m/s (1' – 4'11"/s) Sensitivity 2.0°C (at 0.6 m/s) (3.6°F (at 2'/s)) Operation voltage 2.5 –... -
Page 20: Dimensions
These products confirm to the EMC Directive 2004/108/EC. OPTEX INCORPORATED (USA) OPTEX INCORPORATED (USA) OPTEX SECURITY Sp. z o. o. (POLAND) OPTEX SECURITY Sp. z o. o. (POLAND) OPTEX CO., LTD. (JAPAN) OPTEX CO., LTD. (JAPAN)
