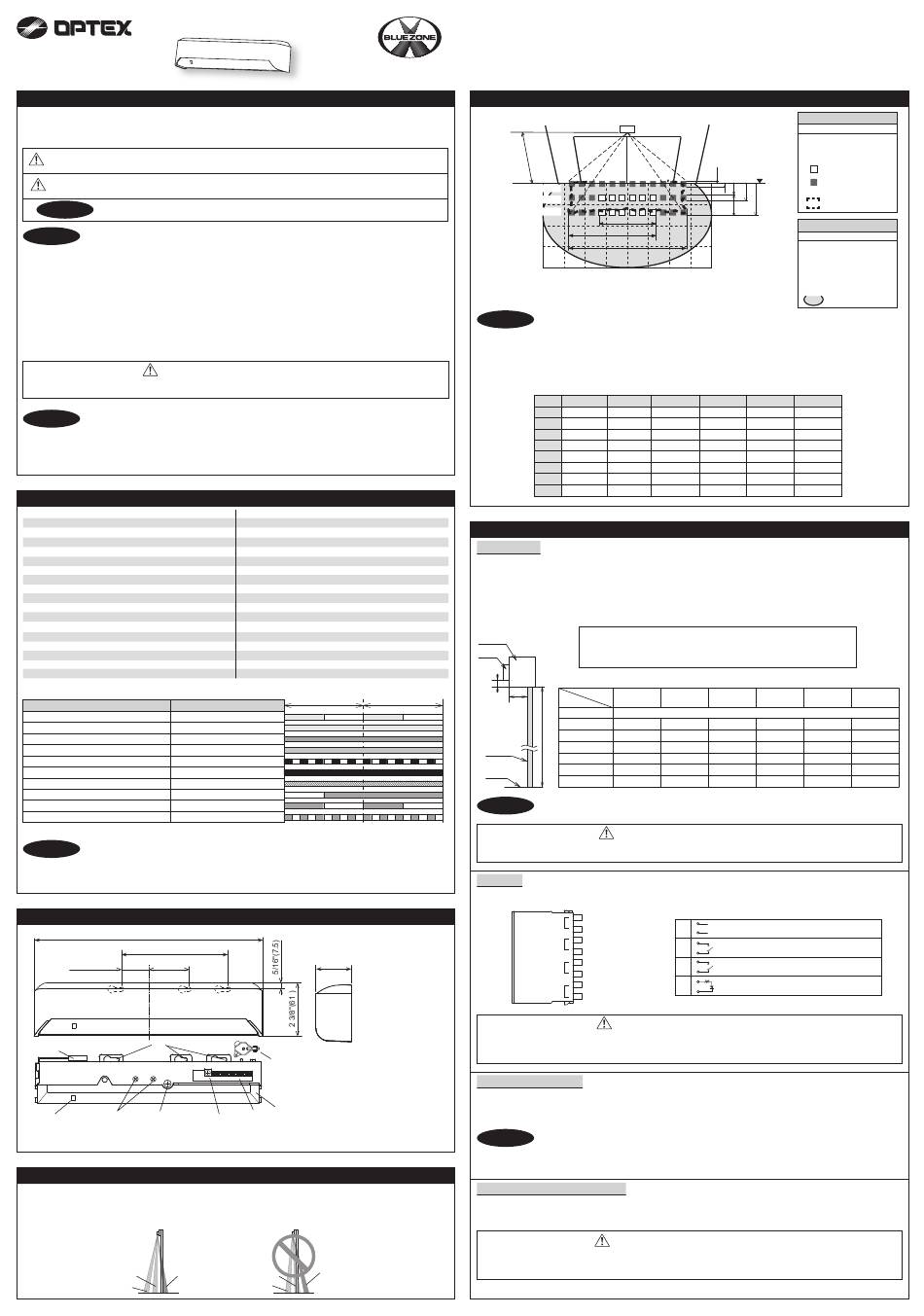

Optex sensor Manual

X-ZONE T
Manufacturer's statement
Read this operation manual carefully before use to ensure proper operation of this product.
Failure to read this operation manual may cause improper operation and may result in serious injury or death of a person.
The meanings of the symbols are as follows.
Failure to follow the instructions provided with this indication and improper handling may cause
WARNING
death or serious injury.
Failure to follow the instructions provided with this indication and improper handling may cause
CAUTION
injury and/or property damage.
NOTE
Special attention is required to the section of this symbol.
NOTE
1. This product is a non-contact switch intended for header mount or wall mount for use on an automatic sliding door.
Do not use for any other applications.
2. When setting the sensor's detection area, make sure that there is no traffic around the installation site.
3. Before turning the power ON, check the wiring to prevent damage or malfunction of equipment connected to the product.
4. Only use the product as specified in the operation manual provided.
5. Be sure to install and adjust the sensor in accordance with the local laws and standards of the country in which the
product is installed.
6. Before leaving the installation site make sure that the product is operating properly and instruct the building
owner/operator on proper operation of the door and the product.
7. The product settings can only be changed by an installer or service engineer. When changed, the changed settings and
the date shall be registered in the maintenance logbook accompanying the door.
WARNING
Do not wash, disassemble, rebuild or repair the sensor, otherwise it may cause electric shock or breakdown of the
equipment.
NOTE
The following conditions are not suitable for sensor installation.
-Fog or exhaust emission around the door
-Wet floor
-Vibrating header or mounting surface
-Moving objects, steel plate, emergency lights or illumination in the detection area or in vicinity
-Highly reflecting floor or highly reflecting objects around the door
Specifications

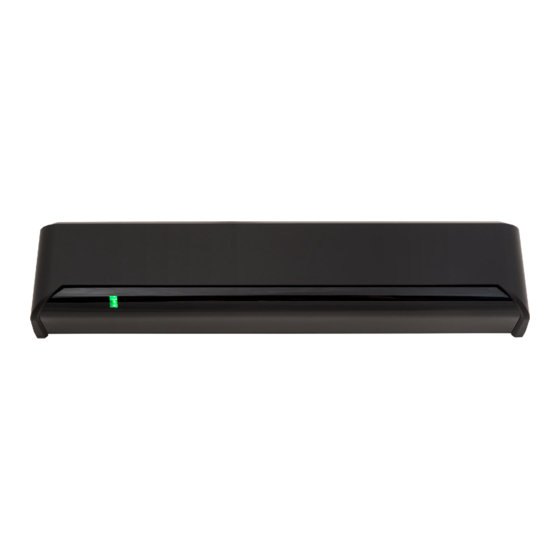

Model : X-ZONE T
Cover color : Black
Mounting height : 6'7" to 11'6" (2.0 to 3.5 m)
Detection area : See Detection area
Detection method : Active infrared reflection (*1)
Microwave doppler effect
Power frequency : 24.125 GHz
Power density : < 20 dBm
Depth angle adjustment : AIR area -6 to +6°
Microwave area +25 to +45°
Power supply : 12 to 24 VAC ±10% (50/60 Hz)
12 to 30 VDC ±10%
Power consumption : < 2.5 W (< 4 VA at AC)
Operation indicator : See Operation indicator table
Output hold time : Approx. 500 ms
Response time : < 300 ms
Operating temperature : -31 to 131°F (-35 to +55°C)
Operating humidity : < 80%
Operation indicator table
Status Operation indicator color
Warm-up
Stand-by (Installation mode)
Stand-by (Operation mode)
BLUEZONE (1st row) detection (*2)
2nd row detection
3rd row detection
Microwave detection
Communication test output
Signal saturation
Sensor failure
NOTE
The specifications herein are subject to change without prior notice due to improvements.
*1 : Active infrared reflection has a presence detection function.
*2 : See BLUEZONE area
*3 : LED will be turned off approx. 500 ms when the sensor test output signal works well.
Dimensions and part names
10 1/2"(267)
4 15/16"(125)
1 7/16"(36) 1 11/16"(43)
(2)
(1)
(3) (4) (5)
BLUEZONE area
When dipswitch 15 is set to "ON", the BLUEZONE area, that provides extra safety over the threshold, is activated.
In case the BLUEZONE function is not required, set dipswitch 15 to "OFF".
Do not set the 2nd row overlapping the threshold regardless of the setting of dipswitch 15.
2nd row
BLUEZONE
(1st row)
3rd row
Danger of electric shock
Noise level : < 70 dBA
Activation output : Form A relay
50 V 0.3 A Max.(Resistance load)
Test input : Opto coupler
Voltage 5 to 30 VDC
Current 6 mA Max. (30 VDC)
Safety output : Form A relay
50 V 0.3 A Max.(Resistance load)
IP rate : IP54
Weight : 9.5 oz (270 g)
Accessories : 1 Operation manual
2 Mounting screws
1 Mounting template
1 Area adjustment tool
1 Cable 9'10" (3 m)
1000 ms
Yellow blinking
Yellow
Green
Blue
Red blinking
Red
Orange
Turn off 500 ms (*3)
Slow Green blinking
Fast Green blinking
[inch (mm)]
1 1/2"(38)
(9) (1) Connector
(2) Mounting holes
(3) Operation indicator
(4) Width adjustment screws
(5) Depth angle adjustment screw
(8)
(6) Microwave sensitivity potentiometer
(6) (7)
(7) Dipswitches
(8) Detection window
(9) Area adjustment tool
BLUEZONE
2nd row
(1st row)
3rd row
5923704 DEC 2022
Detection area
A
BLUEZONE (1st row)
2nd row
3rd row
3'3"(1.0)
6'7"(2.0)
6'7"
(2.0)
NOTE
The actual detection area may become smaller depending on the ambient light, the color/material of the
object or the floor as well as the entry speed of the object.
The sensor may not be activated when the entering speed of the object or a person is slower than
2"(50 mm)/s or faster than 4'11"(1500 mm)/s.
AIR emitting area
The chart shows the values at depth angle +6°.
A
B
C
D
E
F
G
H
I
Installation
1. Mounting
a. Affix the mounting template at the desired mounting position.
(When setting the detection area close to the door, mount the sensor according to the chart below.)
b. Drill two mounting holes of ø1/8" (ø3.4 mm).
c. To pass the cable through the header, drill a wiring hole of ø5/16" (ø8 mm).
d. Remove the mounting template.
e. Remove the housing cover. Fix the sensor to the mounting surface with the two mounting screws.
Header
Sensor
Y
X
1000 ms
H
Door
Floor
NOTE
Make sure not to mount the sensor lower than the bottom of header.
Make sure to affix the mounting template as described in the above chart, otherwise it can be dangerous since there
may be no detection area around the threshold. Install the sensor as low as possible on the header.
2. Wiring
Wire the cable to the door controller as shown below.
Power
1
supply
Activation
2
output
Safety
3
output
Test
4
input
Before starting the procedure, make sure that the power is turned OFF.
When passing the cable through the hole, do not tear the shield otherwise it may cause electric shock or breakdown of
the sensor.
3. Turn ON the power
a. Plug the connector.
b. Supply power to the sensor. Adjust the detection area and set the dipswitches.
(See Adjustments 4. Dipswitch settings)
NOTE
Make sure to connect the cable correctly to the door controller before turning the power ON.
When turning the power ON or after adjusting the settings, do not enter the detection area for more
than 10 s in order to enable the presence detection.
Do not touch the dipswitches before turning the power ON, otherwise an error occurs.
4. Mounting the housing cover
Place the housing cover.
If wiring is to be exposed, break the knockout.
Do not use the sensor without the cover.
When using the cable knockout, install the sensor indoors or use the rain cover (separately available) otherwise electric
shock or breakdown of the sensor may occur.
[feet,inch(m)]
B
C
X
G
H
I
3'3" 3'3" 6'7"
0
(1.0) (1.0) (2.0)
6' 7" (2.00) 7' 3" (2.20) 8' 2" (2.50) 8'10" (2.70)
2" (0.05) 2" (0.06) 3" (0.07) 3" (0.07)
3" (0.07) 3" (0.08) 4" (0.09) 4" (0.10)
9" (0.23) 10" (0.25) 11" (0.28) 1' (0.31)
1' 2" (0.35) 1' 3" (0.39) 1' 5" (0.44) 1' 7" (0.48)
1'11" (0.59) 2' 2" (0.65) 2' 5" (0.74) 2' 7" (0.80)
3'12" (1.21) 4' 4" (1.33) 4'11" (1.51) 5' 4" (1.63)
6' 1" (1.86) 6' 9" (2.05) 7' 7" (2.32) 8' 3" (2.51)
8' 3" (2.52) 9' 1" (2.78) 10'4" (3.15) 11'2" (3.40) 12'5" (3.79)
H : Height from the floor to the bottom of the header
(The mounting height is "H + Y".)
Y : Distance between the bottom of the header and the sensor
X : Distance between the door and the mounting surface
Maximum mounting distance (Y)
H
X 7' 7" (2.30) 8' 2" (2.50 ) 9' 2" (2.80)
6' 7" (2.00)
No limit
0
2" (0.05) 5" (0.13) 5" (0.13) 5" (0.13)
4" (0.10) 4" (0.11) 5" (0.12) 5" (0.12)
4" (0.10) 4" (0.11)
6" (0.15) 4" (0.10)
4" (0.09) 4" (0.10)
8" (0.20) -
- - 4" (0.09)
10" (0.25)
12" (0.30) - - -
CAUTION
Risk of getting caught
1.Grey
2.Grey 1
12 to 24 VAC±10% / 12 to 30 VDC±10%
3.White
2
Form A relay 50 V 0.3 A Max.
4.Yellow
5.White stripe
3
Form A relay 50 V 0.3 A Max.
6.Yellow stripe
7.Red (+)
4
Opto coupler Voltage: 5 to 30 VDC
8.Black (-)
WARNING
Danger of electric shock
WARNING
Danger of electric shock
AIR
Motion/Presence detection
Mounting height : 7'3"(2.2 m)
Angle adjustment : +6°
Sensitivity : Middle
Mounting
: Emitting spots
surface
: Emitting spots
D
(can be eliminated)
E
: Detection area
F
Microwave
Motion detection
Mounting height : 7'3"(2.2 m)
Vertical adjustment : +35°
Sensitivity : High
Area width : wide
Speed of detection object
2"(
: 50 mm)/s
: Detection area
[feet,inch(m)]
9'10" (3.00) 11'6" (3.50)
3" (0.08) 4" (0.09)
4" (0.11) 5" (0.12)
1' 1" (0.34) 1' 3" (0.39)
1' 9" (0.53) 2' (0.61)
2'11" (0.89) 3' 5" (1.03)
5'11" (1.81) 6'11" (2.11)
9' 2" (2.79) 10'8" (3.25)
14'6" (4.42)
[feet,inch (m)]
9'10" (3.00) 11'6" (3.50)
6" (0.14) 6" (0.14) 0
5" (0.12) 5" (0.12) 0
4" (0.11) 4" (0.11) 0
4" (0.10) 4" (0.10) 0
4" (0.09) 4" (0.09) 0
- - 0
