3.3.3 Unpacking

The unit is delivered in the wooden box padded with EPE.

To remove the packing, do as follows:

Step 1 Place the well-packed unit in an empty and flat place.

Step 2 Use tools such as a pry bar or large one-piece screwdriver to remove the wooden box cover and the

steel tongue nails of the surrounding boards.

Step 3 Remove the surrounding boards and EPE filling materials from the wooden box.

Step 4 Cut off the plastic windings and remove the fixing bolts between the unit and the pallet.

Step 5 Take out of the unit.

Step 6 Ensure that the unit is intact without any damage.

Dispose of or recycle packaging in accordance with local regulations.

Sideboard

Pressing

plate

Sideboard

202212 (V1.0)

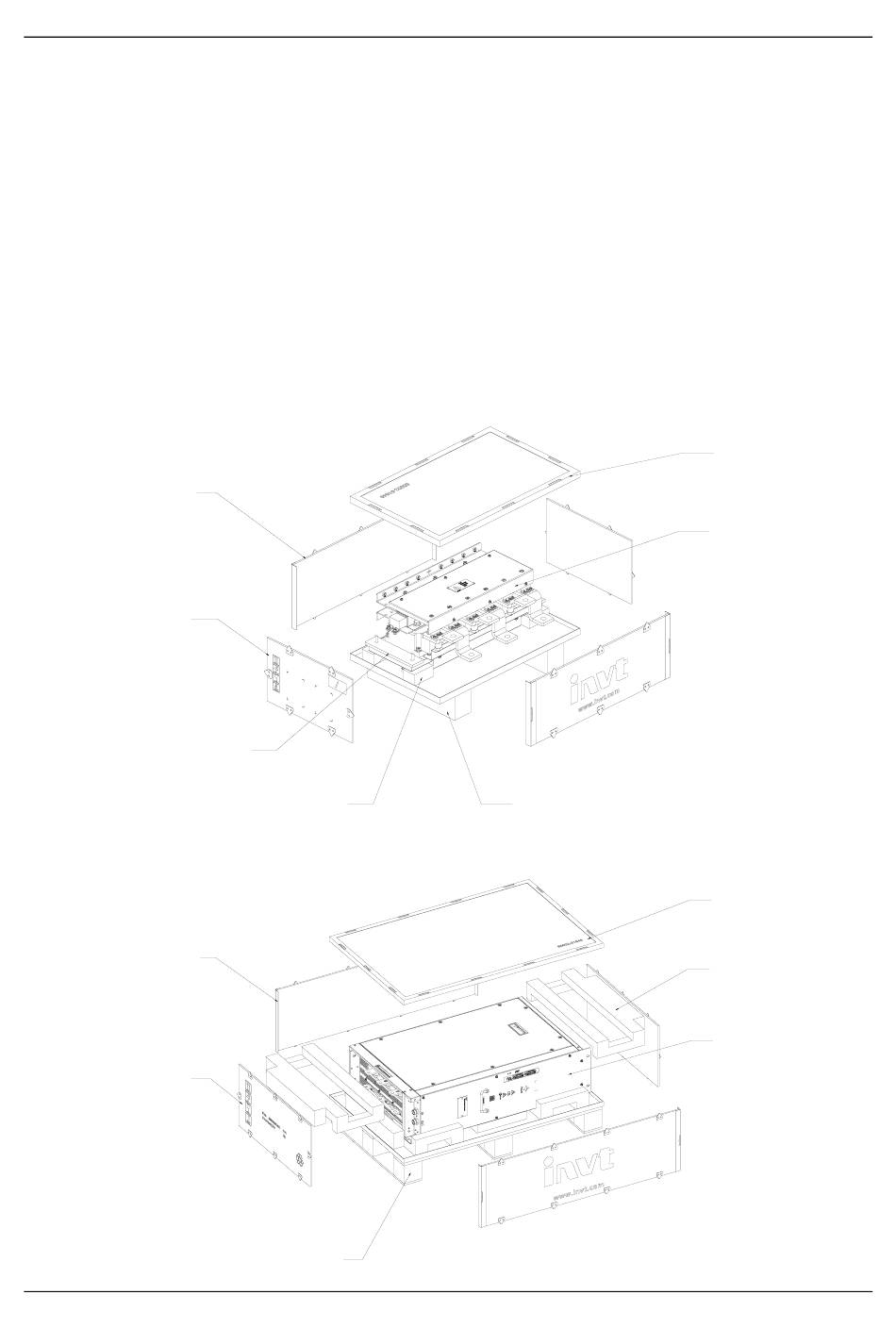

Figure 3-3 Unpacking

Subplate

Pallet

Mechanical installation

Cover

Rectifier

unit

Cover

EPE

VFD unit
