2.9 System configuration

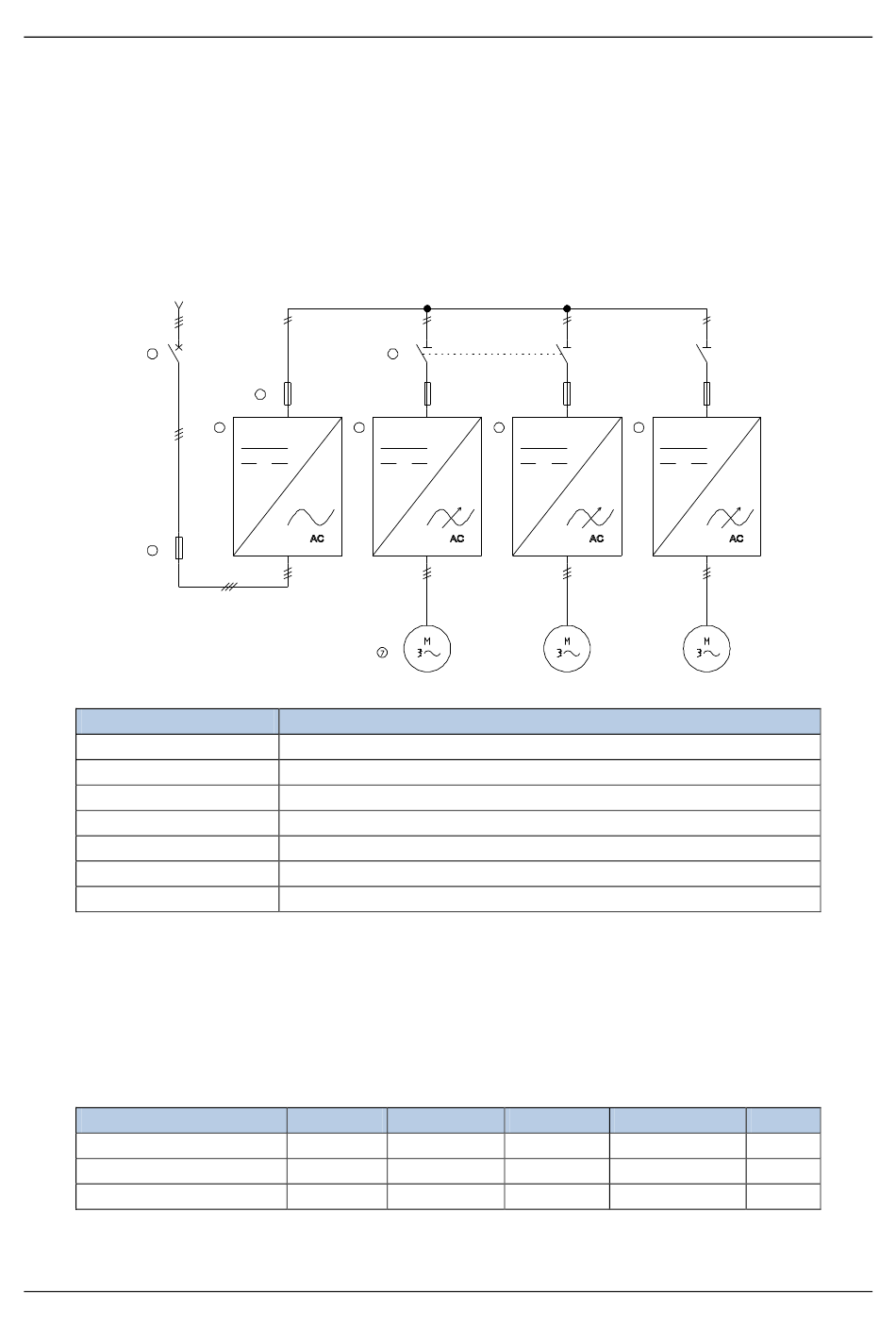

Figure 2-16 shows a typical water-cooled common DC bus drive system.
The water-cooled rectifier module converts AC voltage to DC voltage, and the DC voltage is distributed to all
inverter modules through the DC bus, then the water-cooled inverter modules convert the DC voltage to AC
voltage to drive the motor to rotate. An external DC fuse is required for the connection between each
inverter module and DC bus.
Power incoming cable
1
2
No.
1
2
3
4
5
6
7

2.10 Electrical model selection

2.10.1 AC fuse

An AC fuse protects the rectifier unit in case of short circuit, avoiding thermal overload. The same brand
replacement principle should be followed. See the following table for selection.
Unit model
GD880-61-2000-6-LC
GD880-11-0340-6-LC
GD880-11-0530-6-LC
202212 (V1.0)
Figure 2-16 System configuration
4
5 6
DC
Power supply incoming circuit breaker (customer supplied)
(Optional) AC fuse
(Optional) Isolation switch
(Optional) DC fuse
Water-cooled rectifier unit
Water-cooled inverter unit (built-in buffer)
Motor
Frame size
D3T
A8LC
A8LC
3
6
DC DC
Description
Voltage (V) Current (A)
690 1500
690 630
690 900
Product overview
6
DC
Model Qty
170M6468 6
170M6410 3
170M6413 3
