Goodrive880 Series Water-Cooled Drive Hardware Manual
Step 2 After pushing the inverter unit into the cabinet slowly, lock the two fixing bolts (M8X20) at the top of
the inverter module, and then fix the bottom of the unit with the fixed plate, as shown in Figure
3-15.
202212 (V1.0)

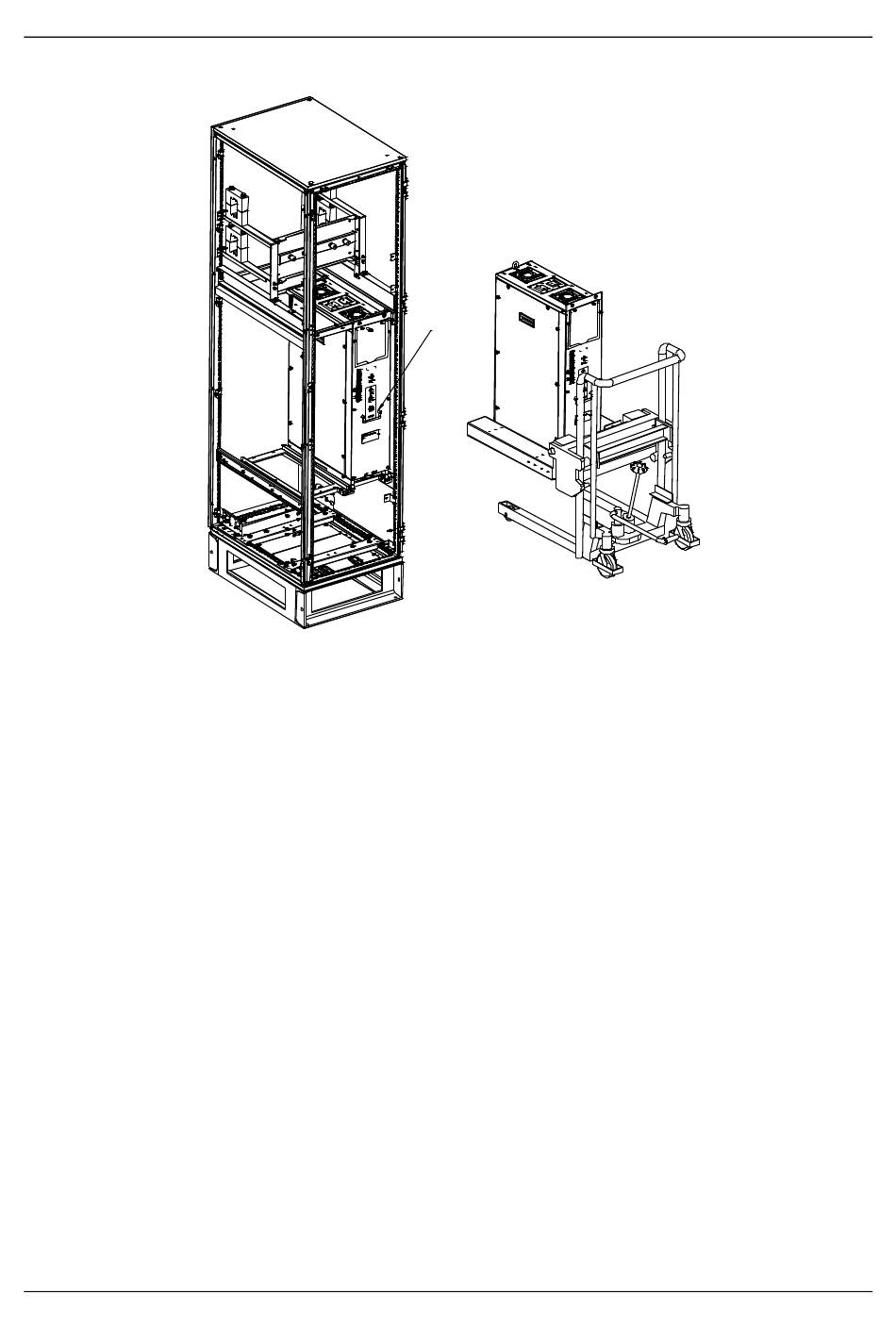

Figure 3-14 Unit entry to the cabinet
Water-cooled
inverter unit
Mechanical installation
