ESP-88/00/00 II for PSP Link to AES3 Converter Configurations

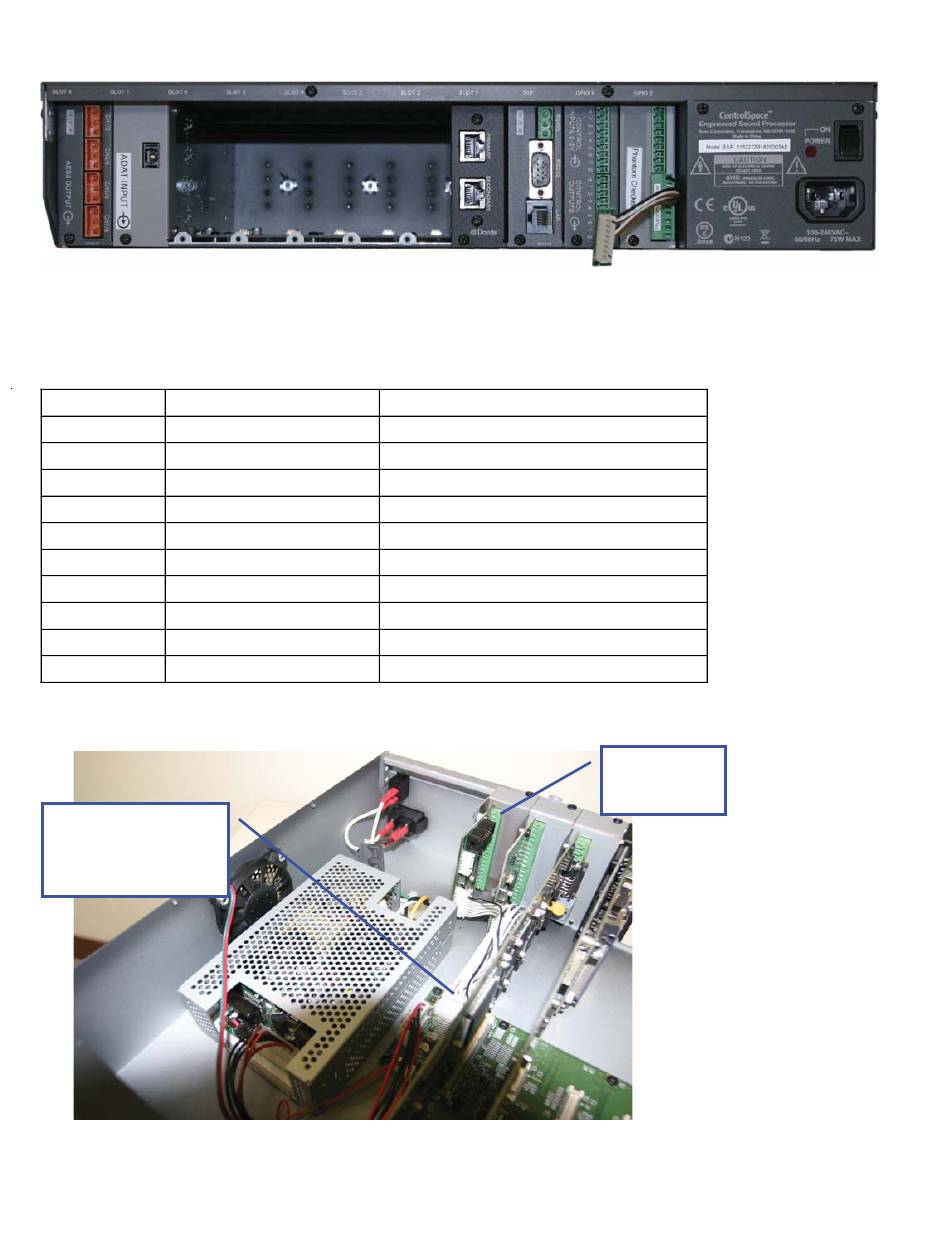

ESP-88/00/00 II Chassis Configuration
The ESP-xx chassis must be configured for these tests using known good plug-in cards. The
chassis is used as part of the test equipment. Refer to the table below.
ESP Chassis
Slot 1
DNC-E
Slot 2
Not used
Slot 3
Not used
Slot 4
Not used
Slot 5
Not used
Slot 6
Not used
Slot 7
ADAT-IN card
Slot 8
AES3OUT card
GPIO 1
GPIO 2
Phantom Voltage checker
Placement of the phantom voltage checker
Insert connector to
CN203 on MB-RevB
TEST PROCEDURES
Card
Reference set
Reference set
Reference set
Notes
Mount to
Slot10.
72
