PRODUCT DESCRIPTION

® ®
The Bose ControlSpace ESP-880, ESP-1240, ESP-4120 and ESP-1600 engineered sound
processors are single-rack unit DSPs, available in analog I/O configurations of 8x8, 12x4, 4x12
and 16x0 (digital output only).
These cost effective models meet today's strict requirements for low latency audio
processing with high-quality digital conversion and a powerful DSP.
Bose ControlSpace Designer™ software, available as a free download from pro.Bose.com,
enables PC setup, control, and monitoring using standard Ethernet networks. A crossover
network cable is supplied for direct-connection from PC to ESP-00 II. The ControlSpace
Designer Software Guide can be downloaded as a PDF from pro.Bose.com or can found in the
help system using ControlSpace Designer software.
Product Overview

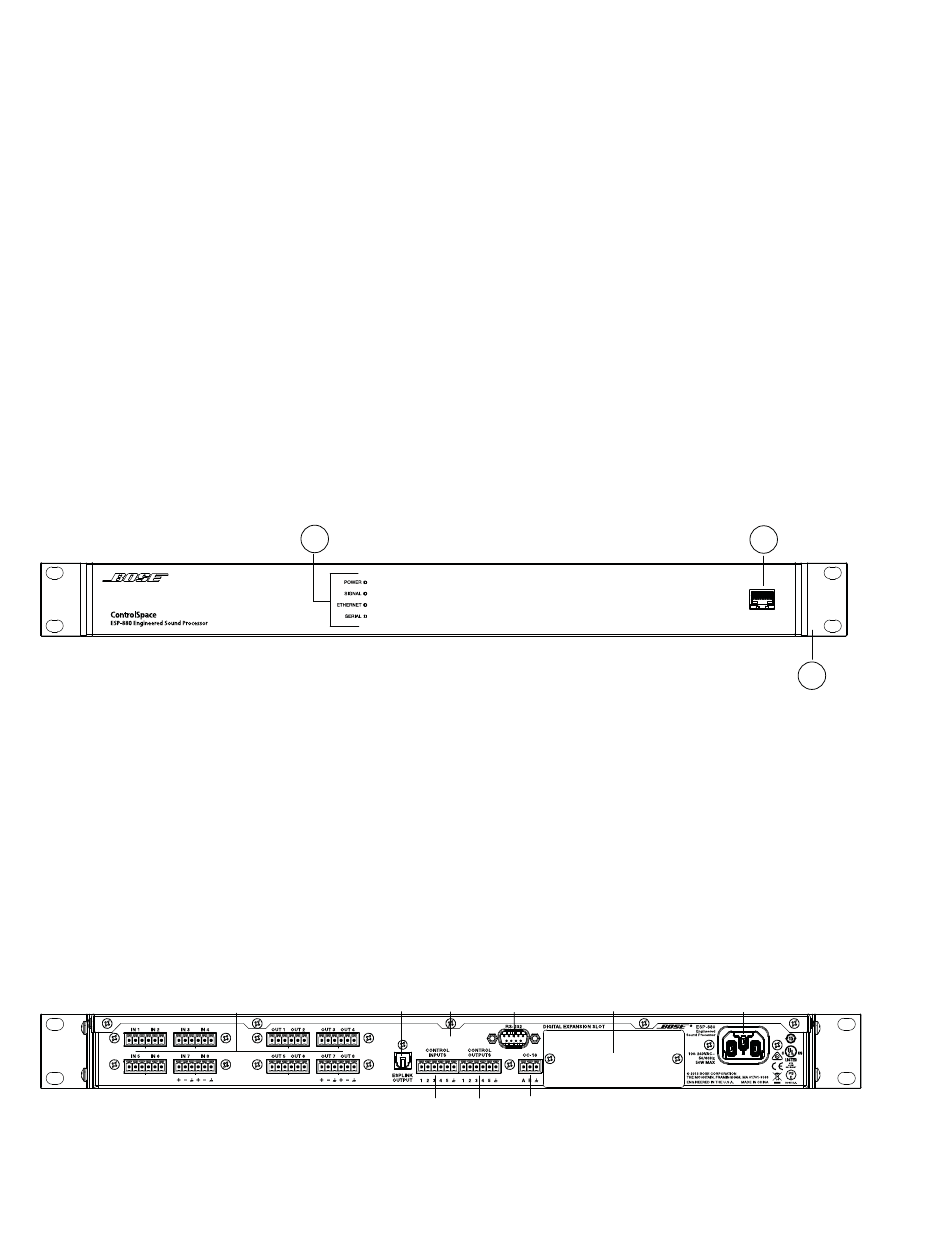

Front Panel
1. LED Indicators: Power, Signal, Ethernet and Serial indication
2. Ethernet Connector: RJ45 jack for front panel network connectivity
3. Front rack-mount ears: For use when securing into rack enclosures.
1 2
3
Front Panel View
Rear Panel
1. Analog audio connectors: Mic/Line-level balanced input and line-level output connectors
2. ESPLink output connector: For use with ESPLink card-equipped PowerMatch amplifiers.
3. Chassis serial number: Location for unit serial number
4. RS-232: 5-wire, RS-232-C (DTE) serial interface connection
5. Digital expansion slot cover: Supports optional digital expansion cards
6. AC Mains receptacle: Power cord connection (IEC 60320-C14 inlet)
7. CC-16 connector: Allows Bose CC-16 zone controller connections
8. CONTROL OUTPUTS connector: Five general=purpose control outputs
9. CONTROL INPUTS connector: Five general-purpose inputs
2
3 4 5 6
1
8 7
9
Rear Panel View
