Chapter 1 Introducing the Content Engine

Ethernet Port

Note
Ethernet Port Connector

Serial Port

Serial Port Connector
OL-5756-01
Download from Www.Somanuals.com. All Manuals Search And Download.
The Content Engine comes with one integrated dual-port Ethernet controller. This
controller provides an interface for connecting to 10-Mbps, 100-Mbps, or
1000-Mbps networks and provides full-duplex (FDX) capability, which enables
simultaneous transmission and reception of data on the Ethernet LAN.
To access the Ethernet port, connect a Category 3, 4, or 5 unshielded twisted-pair
(UTP) cable to the RJ-45 connector on the back of the device.
The 100BASE-TX/1000BASE-TX Ethernet standard requires that the cabling in
the network be Category 5 or higher.

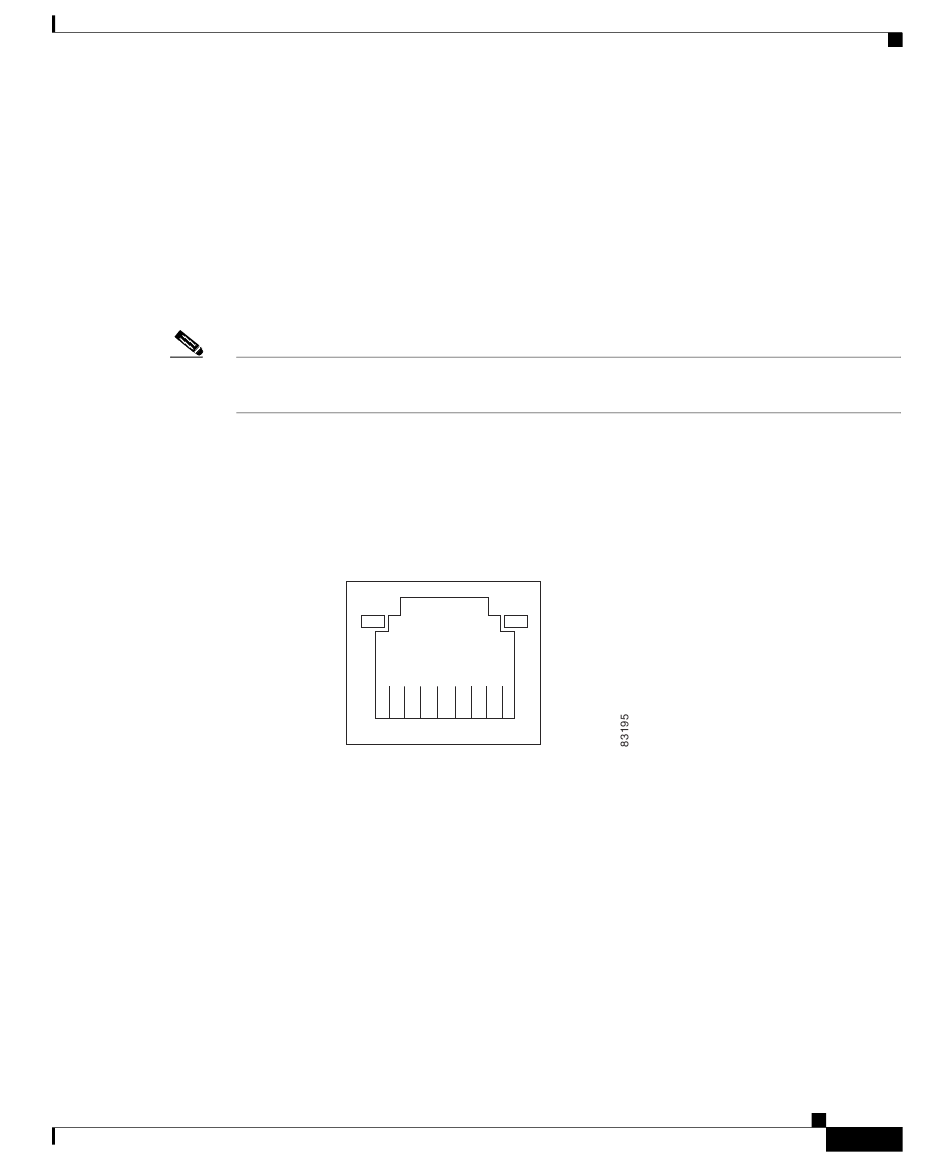

Figure 1-10 shows the pin number assignments for the Ethernet RJ-45 port.
Figure 1-10 Ethernet Port Connector
Activity LED
(green)
8
The Content Engine has one standard serial port connector located on the back of
the device.
Figure 1-11 shows the pin number assignments for the 9-pin, male D-shell serial
port connector on the back of the device. These pin number assignments conform
to the industry standard.
Cisco Content Engine 511 and 566 Hardware Installation Guide
Link LED
(green)
1
Hardware Features
1-13
