Chapter 4
Installing Hardware Options

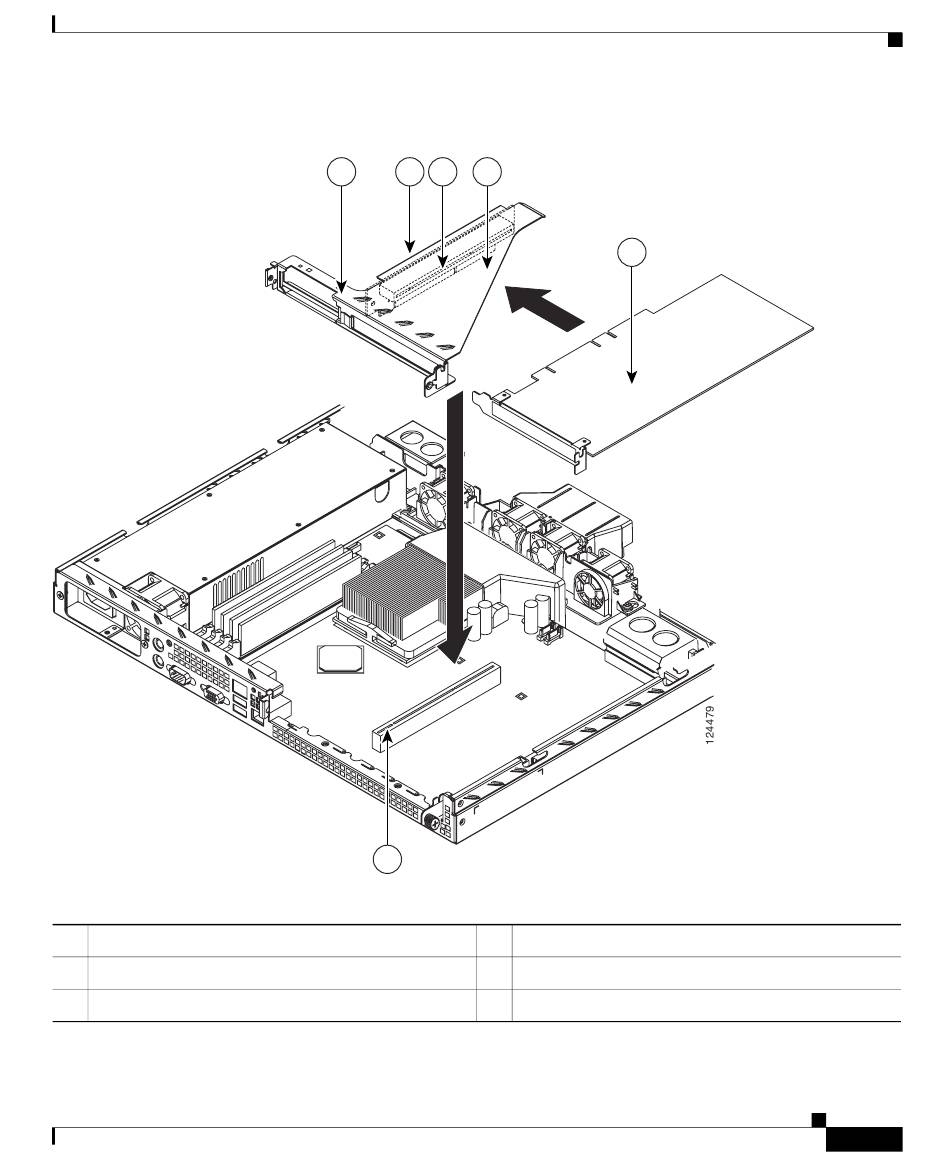

Figure 4-4
Installing an Adapter in PCI-X Slot 1
1
Riser card
3
PCI-X slot 1 connector
5
Adapter
OL-5756-01
Download from Www.Somanuals.com. All Manuals Search And Download.
1
2
3
4
6
2
PCI-X slot 2 connector
4
Adapter support bracket
6
PCI-X riser card connector
Cisco Content Engine 511 and 566 Hardware Installation Guide
Installing Adapters
5
4-7
