Installing a CE-511 or CE-566 Unit
To install the CE-511 and CE-566 in the 4-post rack, follow these steps:
Select a 1-RU-size location in the rack. Starting with the right front side of the
Step 1
rack (as viewed from the front of the Content Engine), install a clip nut or cage
nut in the top and bottom positions of the 1-RU location that you selected (see
Figure
on the rear of the rack. Repeat this step for the left front side of the rack and the
corresponding location on the rear of the rack.

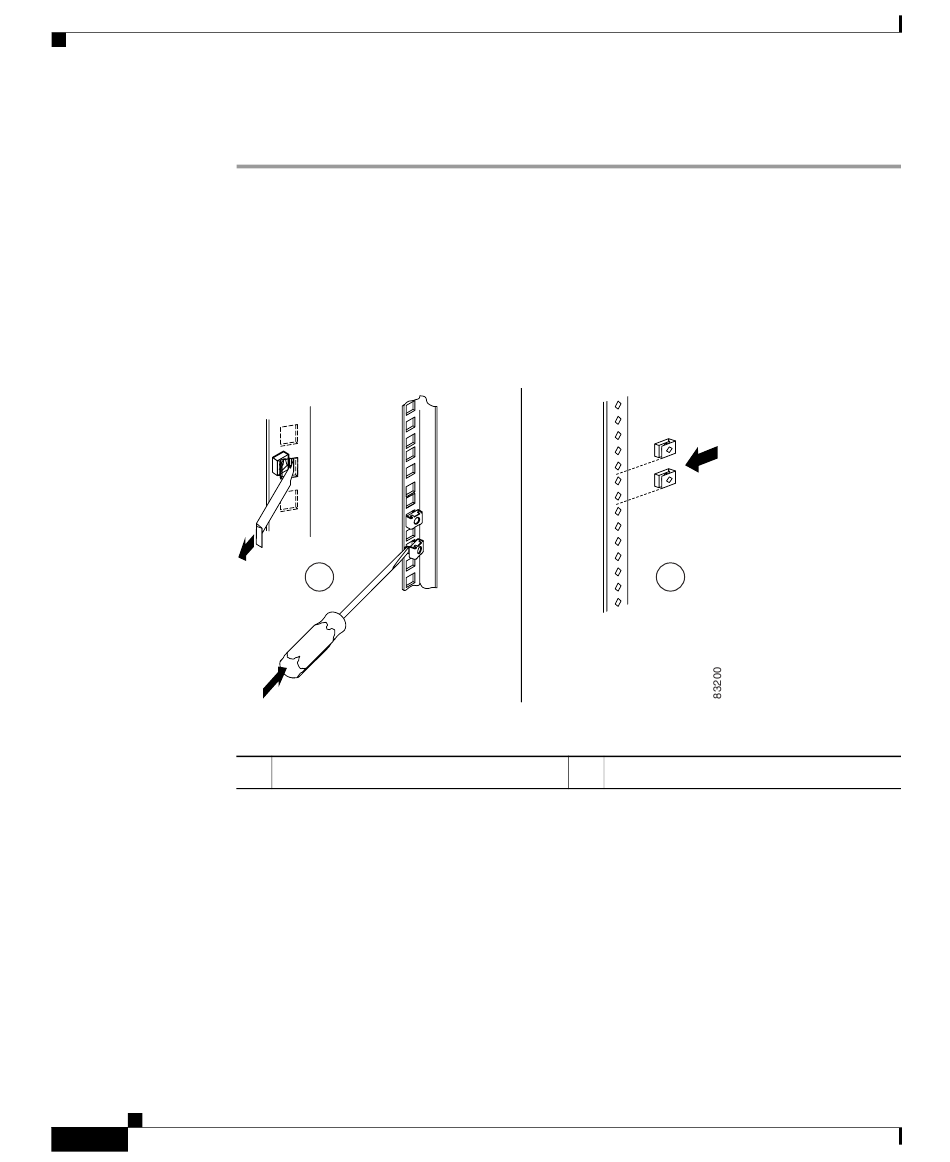

Figure 3-4
1
Remove the inner slide rails from the slide rail assemblies by pressing the release
Step 2
latches on the sides of the slide rail assemblies. (See
Cisco Content Engine 511 and 566 Hardware Installation Guide
3-6
Download from Www.Somanuals.com. All Manuals Search And Download.
3-4) and then install a clip nut or cage nut in the corresponding positions
Installing Clip Nuts or Cage Nuts
1
Cage nuts
Chapter 3 Installing the Content Engine
2
2 Clip nuts
Figure 3-5.)
