Hardware Features

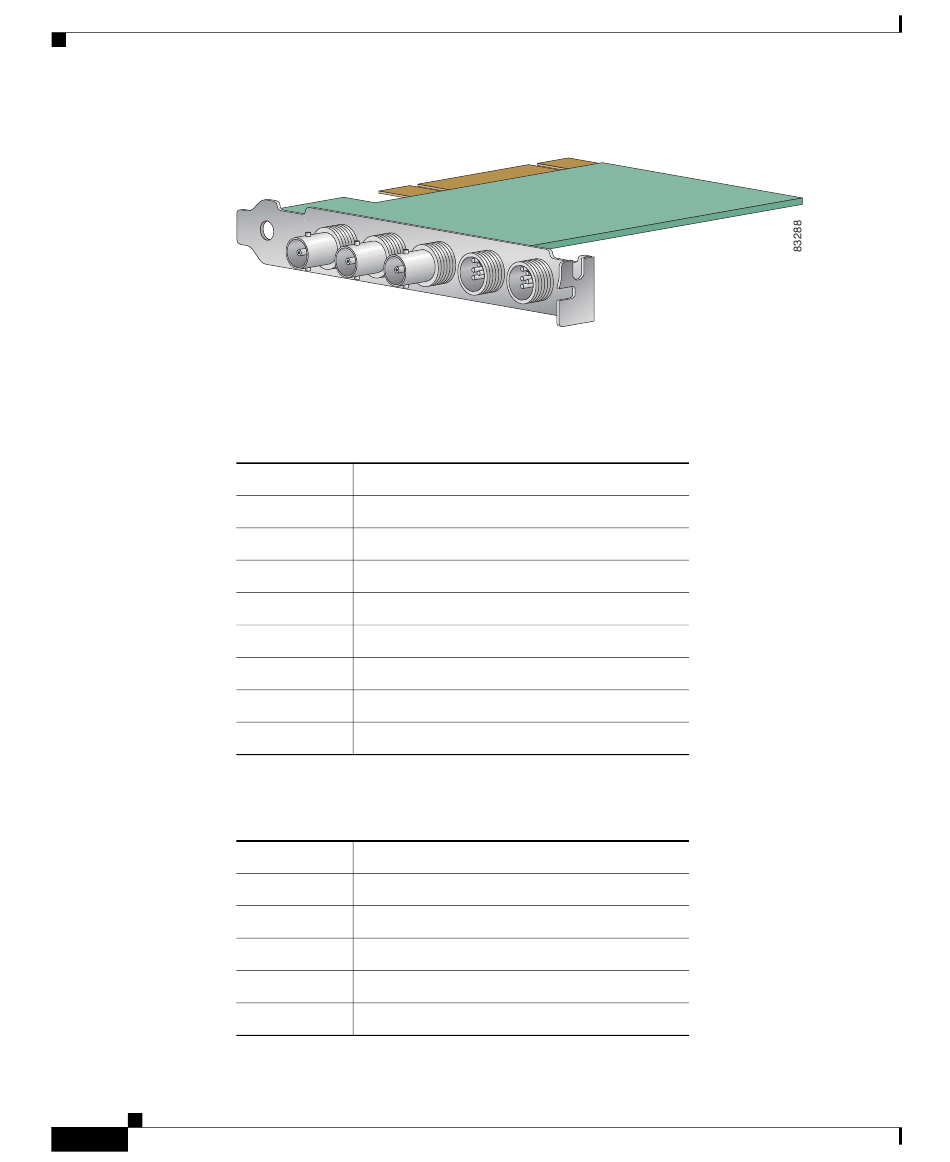

Figure 1-14 Video Input/Output Connectors
Cisco Content Engine 511 and 566 Hardware Installation Guide
1-16
Download from Www.Somanuals.com. All Manuals Search And Download.
Table 1-8 provides the pinout for the audio output mini-XLR 8-pin connector, and
Table 1-9 provides the pinout for the VGA output mini-XLR 8-pin connector.
Table 1-8 Audio Output Connector Pinout
Pin Number. Destination
1 Audio left (–)
2 Ground
3 Audio left (+)
4 Audio right (+)
5 Ground
6 Audio left (–)
7 Ground
8 S/PDIF
Table 1-9 VGA Output Connector Pinout
Pin Number Destination
1 Vsync
2 Ground
3 Hsync
4 Blue
5 Ground
