Hardware Features
SCSI Port
SCSI Connector
Fibre Channel Port
Cisco Content Engine 511 and 566 Hardware Installation Guide
1-14
Download from Www.Somanuals.com. All Manuals Search And Download.

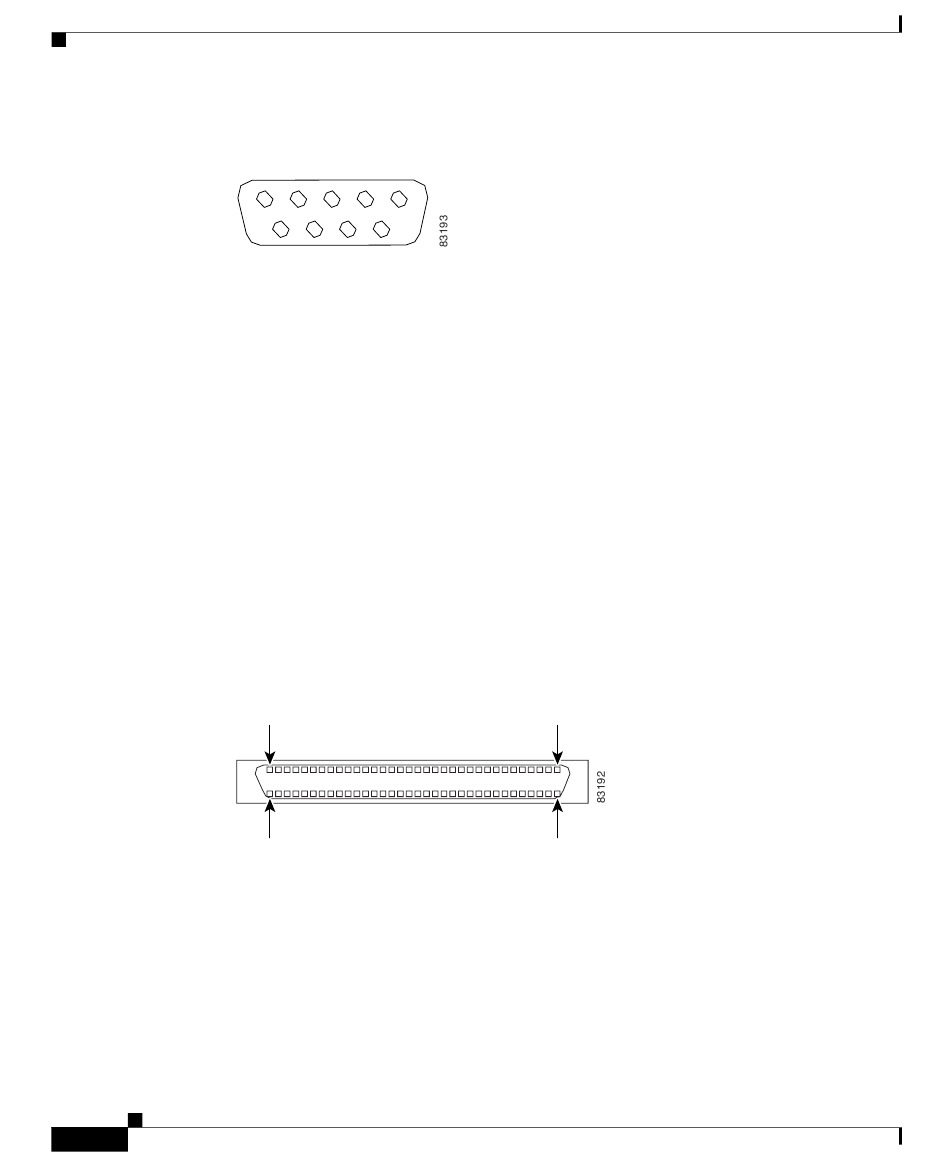

Figure 1-11
Serial Port Connector
5
1
6
9
The CE-566 has one SCSI LVD port connector located on the back of the device.
A cable for this port is provided when you purchase a Cisco Storage Array.
When you attach an external SCSI device to the SCSI connector, you must set a
unique ID for the device. Refer to the information that comes with the device for
instructions on how to set its SCSI ID.
Figure 1-12
shows a 68-pin, female D-shell SCSI connector. These connectors
conform to the SCSI standard.
Figure 1-12
SCSI Port Connector
34
68
The CE-511 and CE-566 support one optional Fibre Channel adapter that has a
single Fibre Channel port.
Chapter 1
Introducing the Content Engine
1
35
OL-5756-01
