Operating Guide | iC7-Hybrid PROFINET
3.
To activate or deactivate the feature, click the toggle switch.
See

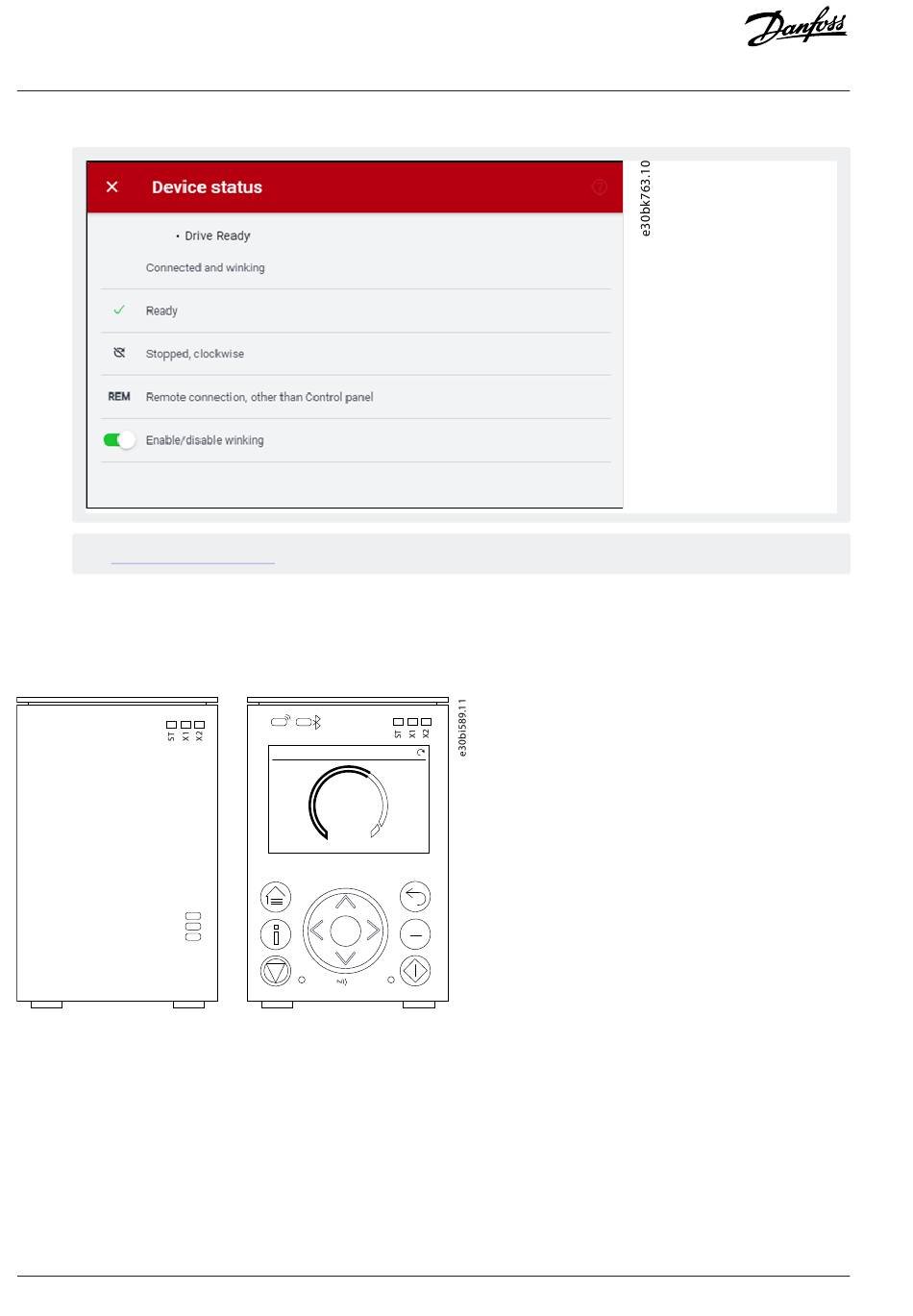

6.5 Fieldbus Indicator LEDs
Fieldbus Indicator LEDs
6.5
The fieldbus indicator LEDs are in the top right corner of the control panel and the bottom part of the front-facing side of the modular
control unit.
BUS
WARN
READY
FAULT
Blind Panel
Figure 11: Fieldbus Indicator LEDs on Control Panel
28
| Danfoss Drives Oy © 2024.04
for more information on interpreting the LED signals and where the LEDs are located.
BUS
1420
rpm
Speed
WARN READY FAULT
OK
REM
LOC
OFF
RUN
Control Panel 2.8
AQ481922002453en-000101 / 172K4283A
