Operating Guide | iC7-Hybrid PROFINET
1
Fieldbus indicator LEDs (ST, X1, and X2)

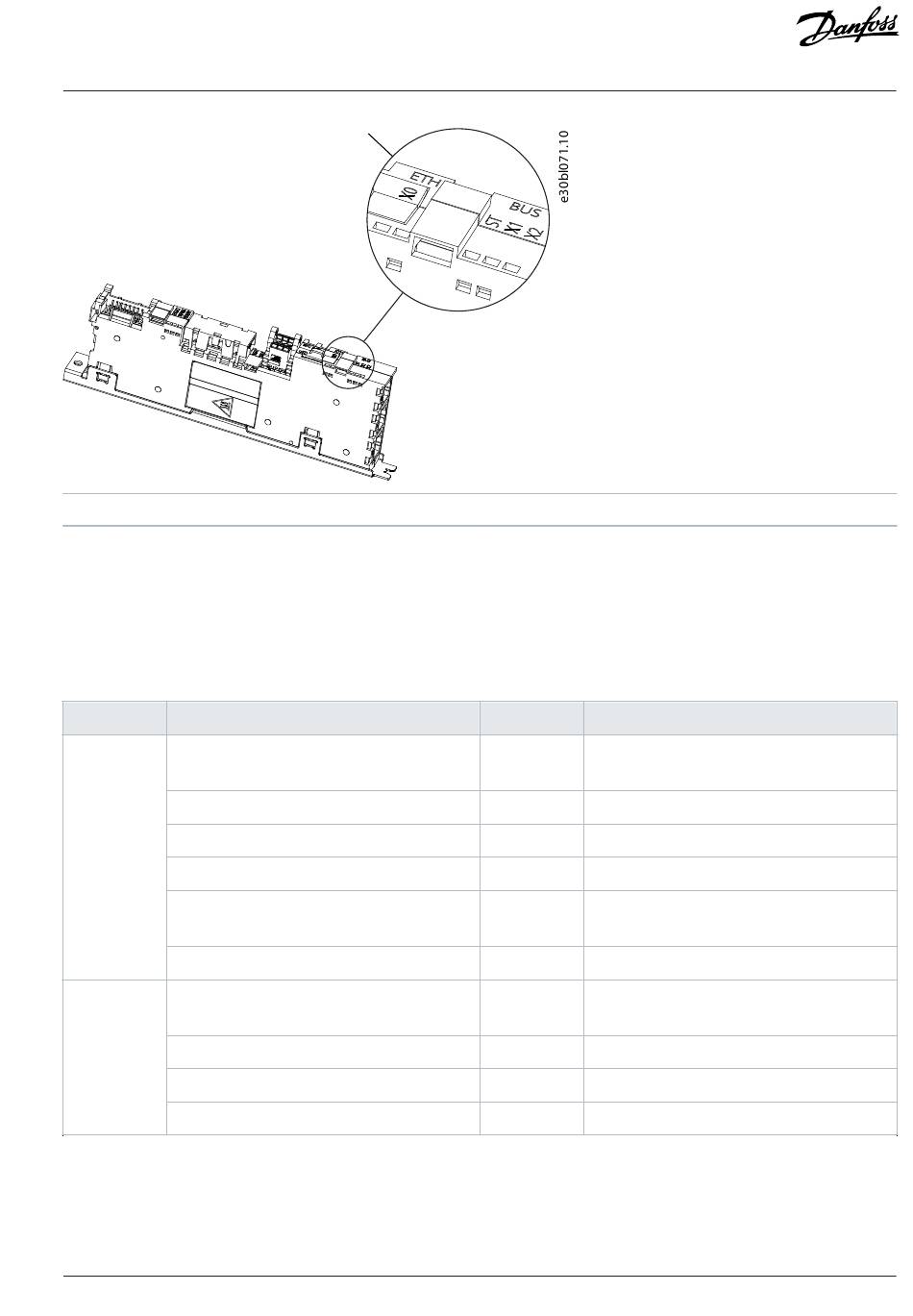

Figure 12: Fieldbus Indicator LEDs on Modular Control Board
The LED labeled ST shows the module status.
l
The LED labeled X1 shows the network status on Ethernet port X1.
l
The LED labeled X2 shows the network status on Ethernet port X2.
l
Table 15: Fieldbus Indicator LED Functions
LED label Status
ST DCP blink
Not configured
IO connection faulted
Configuration mismatch
Configured/No IO connection
All IO connections OK
X1/X2 DCP blink
Link down
Invalid configuration/Duplicated IP address
Link up
Danfoss Drives Oy © 2024.04
1
LED pattern
Flashing yel-
low
Off
Steady red
Flashing red
Flashing
green
Solid green
Flashing yel-
low
Off
Solid red
Solid green
Description
PROFINET discovery protocol active, 3 s flashing.
PROFINET not configured.
A PROFINET IO connection has faulted.
PROFINET configuration mismatch.
Device is configured from PLC master but no IO
connection has been established.
PROFINET IO connection to device established.
PROFINET discovery protocol active, 3 s flashing.
–
IP configuration error
Ethernet link is active.
AQ481922002453en-000101 / 172K4283A |
29
