Operating Guide | iC7-Hybrid PROFINET

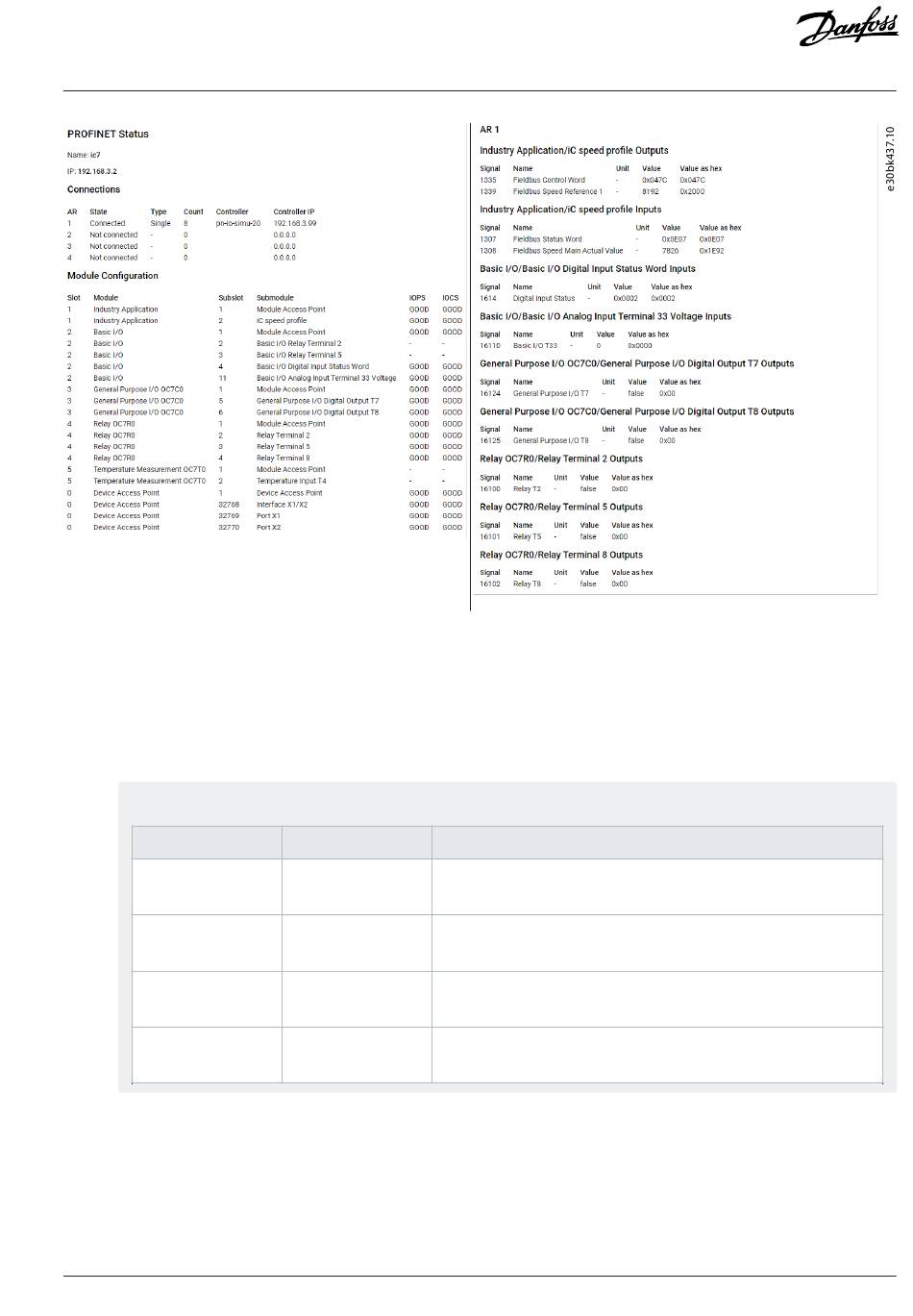

Figure 10: Example of a PROFINET Report

Configuring Port Mirroring Settings

6.3
Enable or disable the port mirroring function for network troubleshooting with a network analyzer tool.
1. In MyDrive® Insight, go to Setup and Service > Interface Configuration > Port Mirroring Settings.
Table 14: Port Mirroring Settings
Function
Source port
Destination port
Block RX from desti-
nation port
Enable port mirror-
ing

Identifying a Unit

6.4
The winking function makes the fieldbus indicator LEDs ST, X1, and X2 flash yellow to make it easy to identify a unit. The function is
enabled in MyDrive® Insight.
1.
In MyDrive® Insight, click the device name in live mode.
2. Select Device Status.
Danfoss Drives Oy © 2024.04
Selections Description
• X1 Frames are mirrored from this port.
• X2
• X1 Frames are mirrored to this port.
• X2
Enable/Disable Device does not receive any frames from Destination Port when en-
abled.
Enable/Disable Enables the Port Mirroring feature.
AQ481922002453en-000101 / 172K4283A |
27
