iC7 Series Liquid-cooled LC Filter OF7Z1

1 Overview

LC Filter

1.1

The LC Filter is used as an input filter with AFE or grid converter modules in applications where regenerative or low-harmonic

functionality is required. The LC Filter reduces switching noise, and ensures correct power quality and minimal interruption to the grid.

There are 2 electrical sizes of the filter: LC10L (380 A) and LC12L (760 A). Both are available in EMC categories C3 and C4.

LC10L

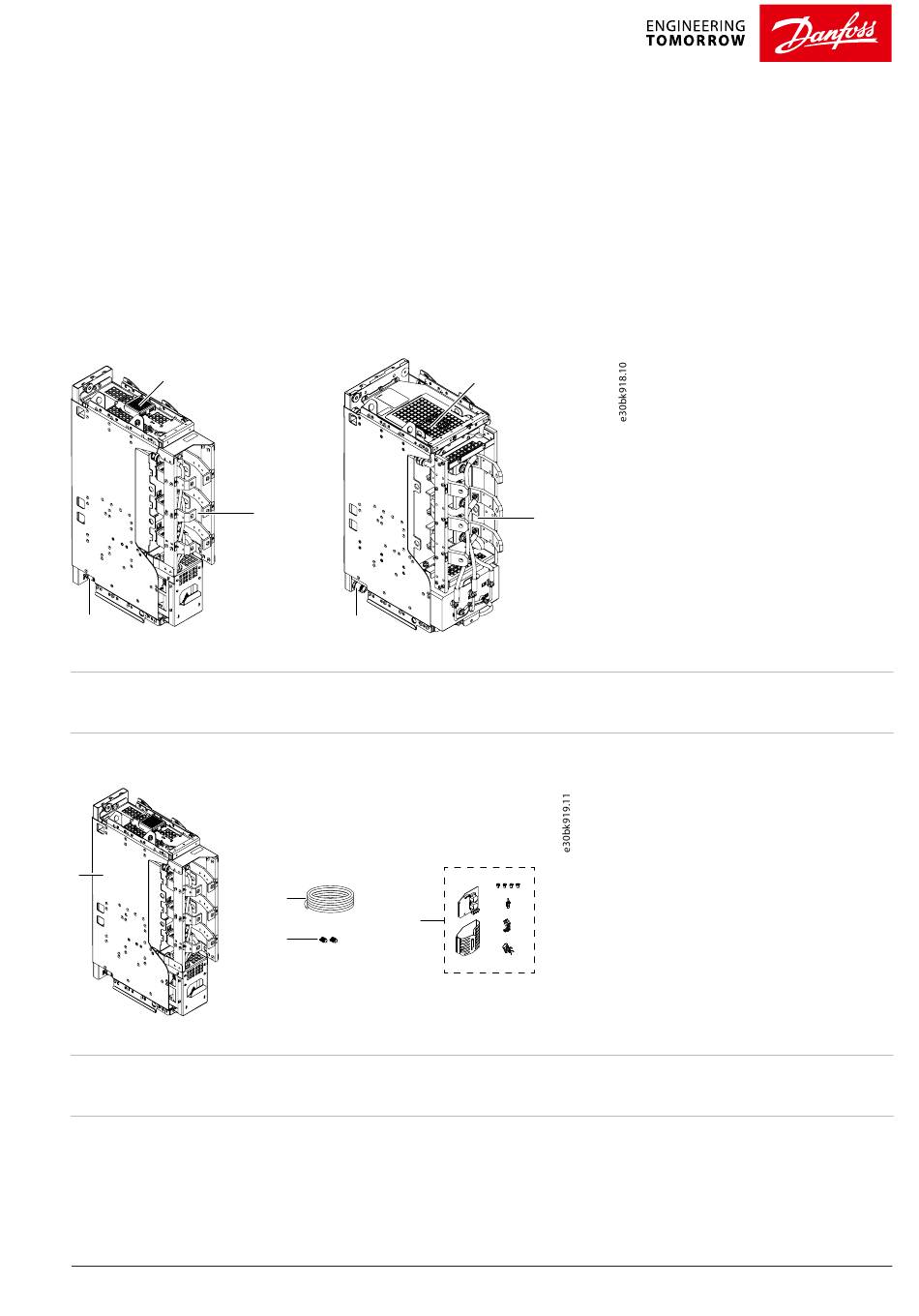

Figure 1: Liquid-cooled LC Filters

AuxBus temperature measurement board

Cooling connectors

Contents of the Delivery

1.2

Figure 2: Items Included in the Delivery

LC Filter, LC10L or LC12L

AuxBus terminals, 2 pcs

Available options:

+ANN1 = Push-in cooling connectors

+ANNC = Threaded cooling connections, metric

LC12L

Terminals

AuxBus cable, 3 m (9.8 ft)

AuxBus isolation board installation kit

AN447722908366en-000201 / 172K1110B |
