Dimensions and mounting

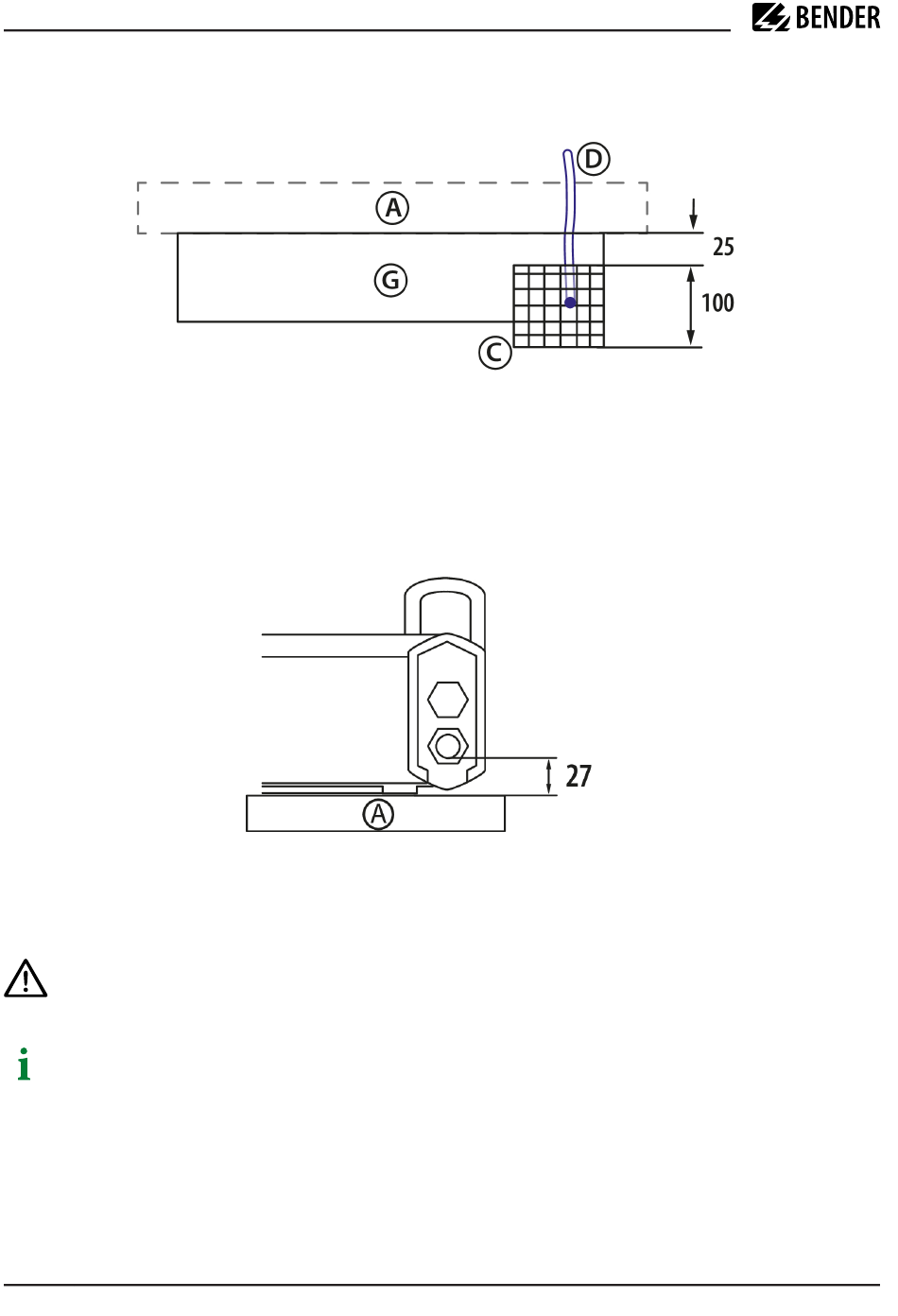

Dimensions of infrastructure of network connection
Dimensions in mm
A Wall
C Interface area
D Infrastructure cable (cable length above ground at least 1000 mm)
G Outline DC Wallbox
Dimensions of network connection wiring
Dimensions in mm
A Wall
Mounting instructions
ADVICE
Standards and legal regulations to be observed during mounting, installation and protective earthing
are listed in chapter "Standards and approvals", page 54 .
When mounting, ensure:
• that a sufficient soundproofing distance to quiet zones is guaranteed (Quiet night mode of the Wallbox:
52.4 dB(A)).
• that the operator securing mechanism is accessible. This mechanism is located on the bottom and
secures the door to the DC Wallbox enclosure.
• that there is no temperature rise from external heat sources.
