4.2
Mounting

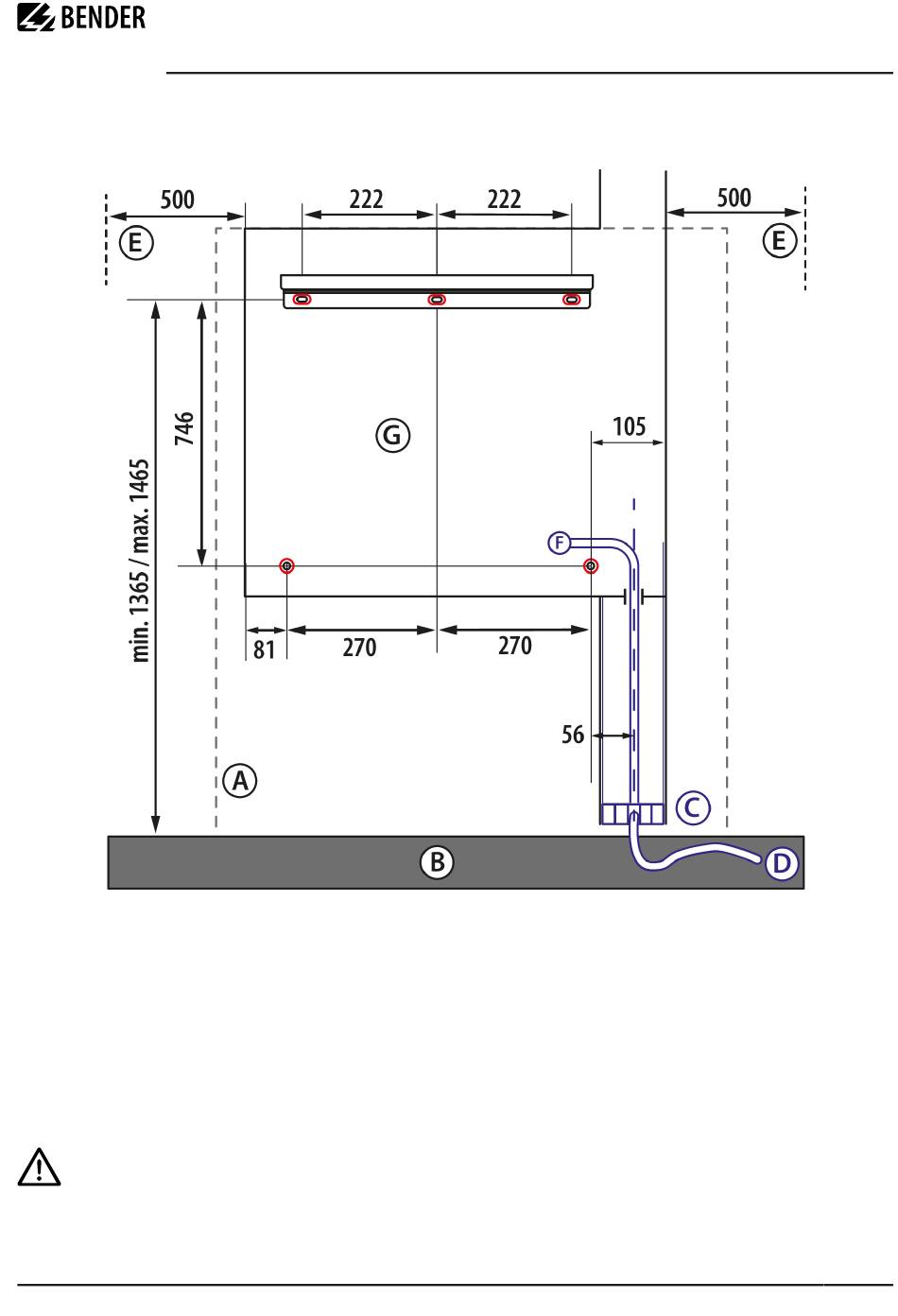

Mounting dimensions
Dimensions in mm
A
Wall
B
Floor
C
Interface area
D
Infrastructure cable (cable length above ground at least 1000 mm)
E
Clearance of at least 500 mm on the left and right
F
Network connection (see chapter "Network connection", page 26)
G
Outline of DC Wallbox with mounting rail, cable cover and upper status and lighting mast (cut off)
Red Drilling holes (top)
Attachment points (bottom)
Blue Positioning area for the network connection
ADVICE
The installation location must be chosen such that the supply and venting of cooling air at the sides
of the DC Wallbox is guaranteed.
View on mounting surface and mounting rail
iONiX 25_DC-Wallbox_D00461_01_M_XXEN/01.2024
iONiX Light 25 Wallbox
iONiX Medium 25 Wallbox
iONiX Supreme 25 Wallbox
21
