Chapter 1. Get Started
Start Application Development
condition with no obvious signs of damage.
Required Hardware
• Board with a female Extension Header (e.g., ESP32-S2-Kaluga-1)
• ESP-LyraT-8311A extension board
• Four mounting bolts (for stable mounting)
• Computer running Windows, Linux, or macOS
Hardware Setup To mount your ESP-LyraT-8311A onto the board with a female Extension Header:
1. Install the four mounting bolts onto the board with a female Extension Header
2. Align the ESP-LyraT-8311A with the bolts and Extension Header and insert it carefully
Software Setup Depending on your application, see:
• ESP-ADF Getting Started Guide
• Section Software Setup
sif IOT Development Framework).
Hardware Reference

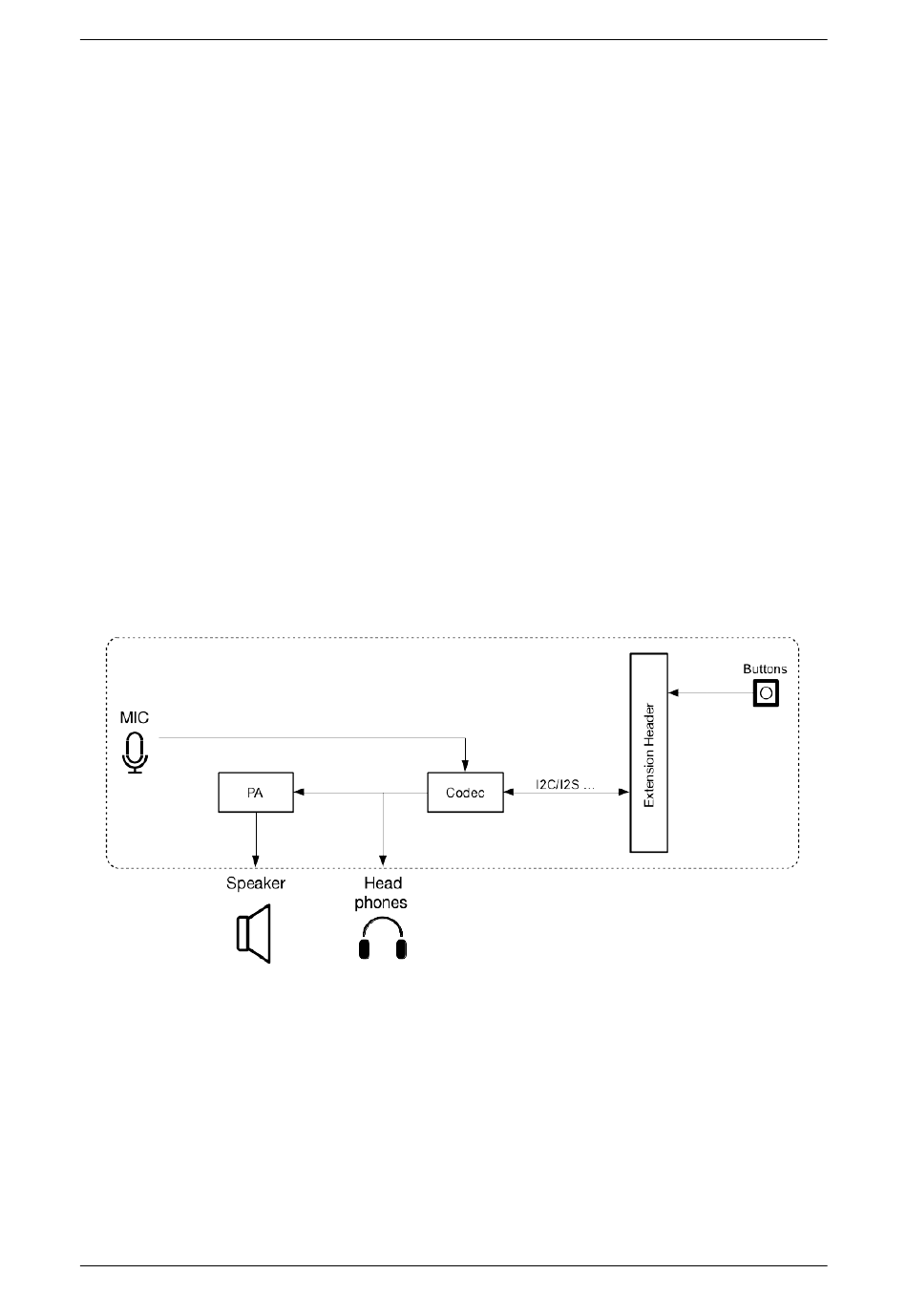

Block Diagram A block diagram below shows the components of ESP-LyraT-8311A and their interconnections.
Hardware Revision Details
ESP-LyraT-8311A v1.3
• ADC/ES7243 and ADC/ES7210 removed as the Mono Audio Codec chip provides all the needed functionality.
ESP-LyraT-8311A v1.2
Espressif Systems
Before powering up your ESP-LyraT-8311A, please make sure that it is in good
if you develop with ESP-ADF (Espressif Audio Development Framework).
of the ESP32-S2-Kaluga-1 kit user guide if you develop directly with ESP-IDF (Espres-
Fig. 45: ESP-LyraT-8311A block diagram
Initial release
