Key Component
ESP32-S2-WROVER
Pin Headers
3.3 V Power On LED
USB-to-UART Bridge
Reset Button
Micro-USB Port
Boot Button
RGB LED
Start Application Development
condition with no obvious signs of damage.
Required Hardware
• ESP32-S2-Saola-1
• USB 2.0 cable (Standard-A to Micro-B)
• Computer running Windows, Linux, or macOS
Note: Be sure to use an appropriate USB cable. Some cables are for charging only and do not provide the needed
data lines nor work for programming the boards.
Software Setup Please proceed to
the development environment and then flash an application example into your ESP32-S2-Saola-1.
Espressif Systems

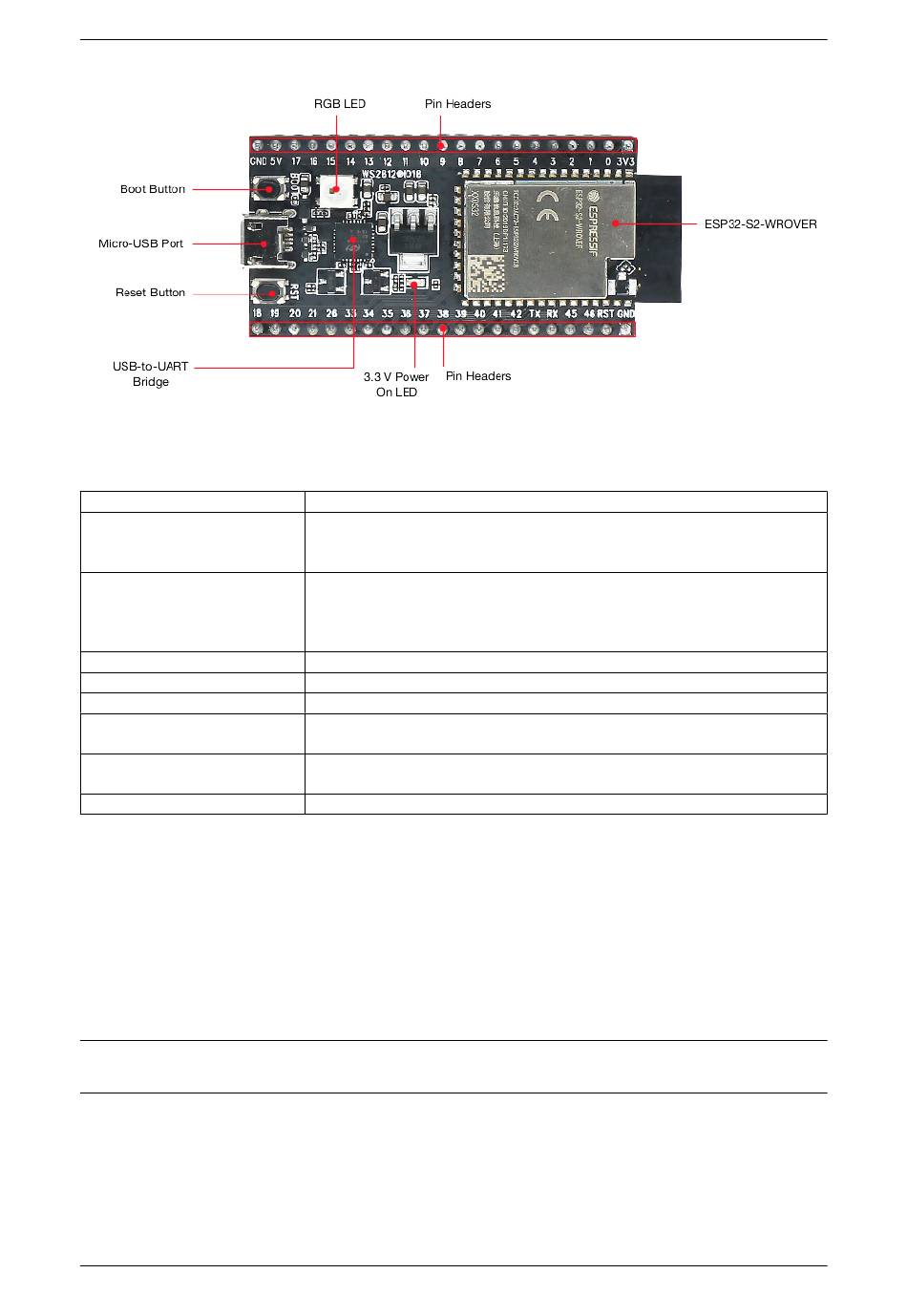

Fig. 3: ESP32-S2-Saola-1 - front
Description
ESP32-S2-WROVER is a powerful, generic Wi-Fi MCU module that inte-
grates ESP32-S2. It has a PCB antenna, a 4 MB external SPI flash and an
additional 2 MB PSRAM.
All available GPIO pins (except for the SPI bus for flash and PSRAM) are
broken out to the pin headers on the board. Users can program ESP32-S2
chip to enable multiple functions such as SPI, I2S, UART, I2C, touch sensors,
PWM etc.
Turns on when the USB power is connected to the board.
Single USB-UART bridge chip provides transfer rates up to 3 Mbps.
Reset button.
USB interface. Power supply for the board as well as the communication in-
terface between a computer and the ESP32-S2 chip.
Download button. Holding down Boot and then pressing Reset initiates
Firmware Download mode for downloading firmware through the serial port.
Addressable RGB LED (WS2812), driven by GPIO18.
Before powering up your ESP32-S2-Saola-1, please make sure that it is in good
Get Started, where Section
6
Submit Document Feedback
Installation Step by Step will quickly help you set up
