Chapter 1. Get Started
Key Component
Extension Header
LCD display
Touch Screen Switch
Main Board 3.2"LCD FPC
Connector
Control Switch
Start Application Development
condition with no obvious signs of damage.
Required Hardware
• Board with a female Extension Header (e.g., ESP32-S2-Kaluga-1, ESP-LyraT-8311A)
• ESP-LyraP-LCD32 extension board
• Four mounting bolts (for stable mounting)
• Computer running Windows, Linux, or macOS
Hardware Setup To mount your ESP-LyraP-LCD32 onto the board with a female Extension Header:
1. Install the four mounting bolts onto the board with a female Extension Header
2. Align the ESP-LyraP-LCD32 with the bolts and Extension Header and insert it carefully
Software Setup See Section
Espressif Systems

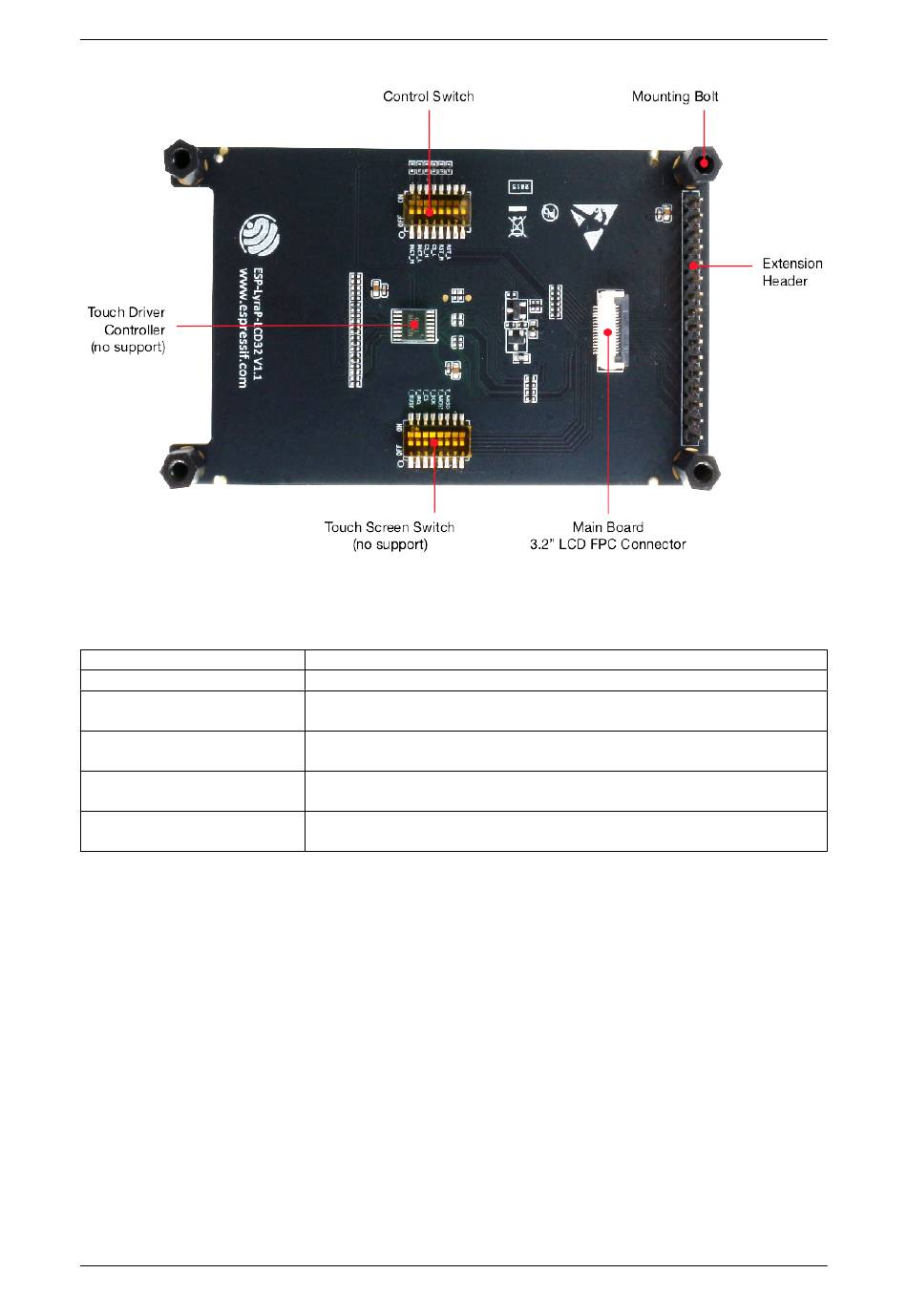

Fig. 28: ESP-LyraP-LCD32 - front (click to enlarge)
Description
Male Extension Header for mounting onto a female Extension Header
This version has a 3.2"320x240 SPI LCD display module; the display
driver/controller is Sitronix ST7789V
No support for touch screens, keep the switches to OFF to make the pins avail-
able for other uses
(Reserved) Connect to main board's 3.2"LCD FPC connector
Switch to ON to set Reset/Backlight_control/CS to default high or low; switch
to OFF to make the pins available for other uses
Before powering up your ESP-LyraP-LCD32, please make sure that it is in good
Software Setup of the ESP32-S2-Kaluga-1 kit user guide.
