Chapter 1. Get Started
ESP-LyraP-LCD32 v1.1
This extension board cannot be bought separately and is usually sold together with other Espressif development boards
(e.g., ESP32-S2-Kaluga-1), which will be referred to as main boards below.
Currently, ESP-LyraP-LCD32 v1.1 is sold as part of the
The ESP-LyraP-LCD32 extends the functionality of your main board by adding an LCD graphic display.
The document consists of the following major sections:
• Overview: Provides an overview and hardware/software setup instructions to get started.
• Hardware reference: Provides more detailed information about the ESP-LyraP-LCD32's hardware.
• Hardware Revision Details: Covers revision history, known issues, and links to user guides for previous versions
of the ESP-LyraP-LCD32.
• Related Documents: Gives links to related documentation.
Overview This extension board adds a 3.2"LCD graphic display with the resolution of 320x240. This display is
connected to ESP32-S2 over the SPI bus.
Description of Components
available, but the current version of the kit does not use it.
Espressif Systems
This user guide provides information on the ESP-LyraP-LCD32 extension board.

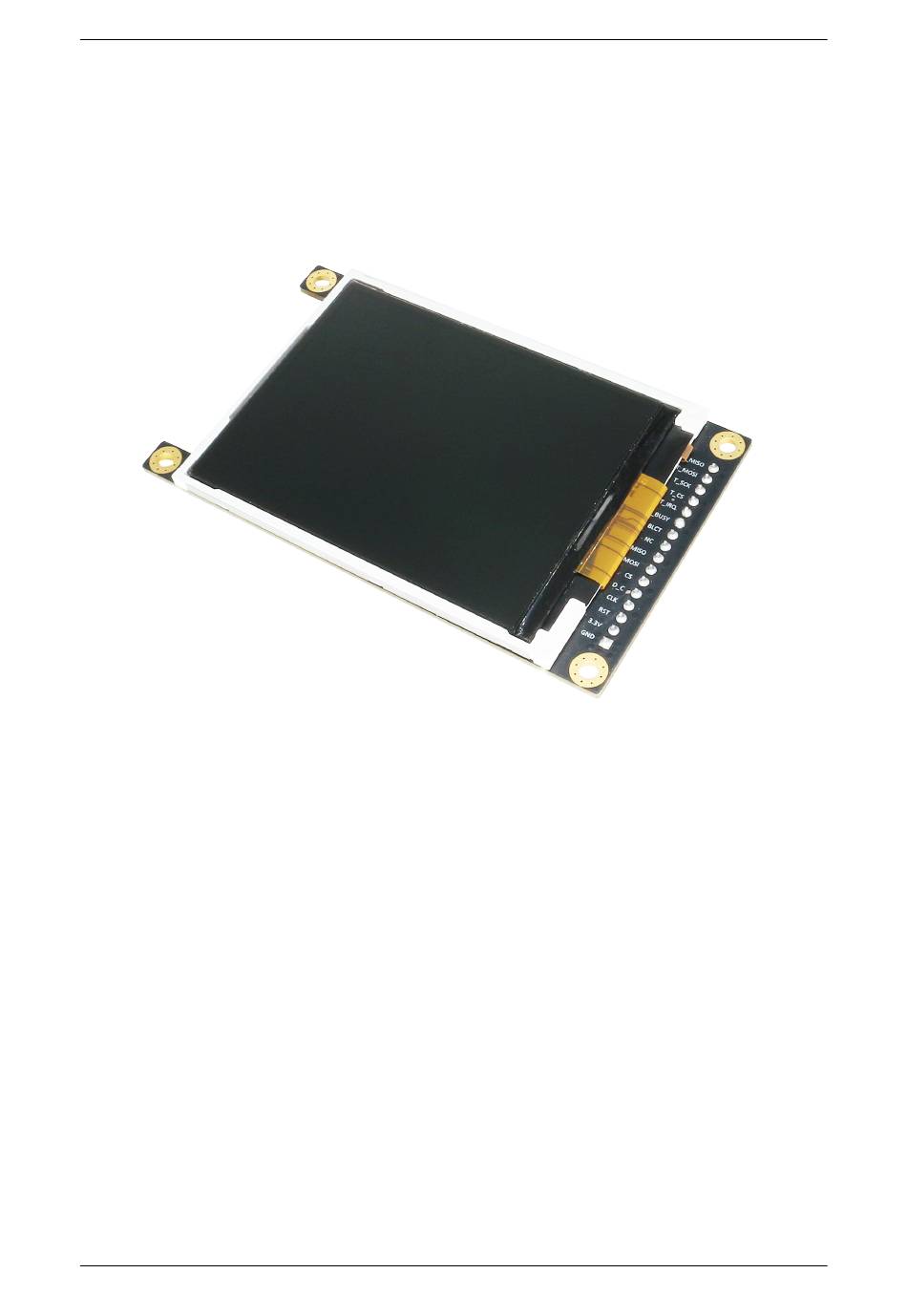

Fig. 27: ESP-LyraP-LCD32 (click to enlarge)
In the description of components below, Reserved means that the functionality is
Submit Document Feedback
ESP32-S2-Kaluga-1 Kit v1.2.
