– LCD interface (8-bit parallel RGB, 8080, and 6800 interface)
• Camera image acquisition
– Supports OV2640 and OV3660 camera modules
– 8-bit DVP image sensor interface (ESP32-S2 also supports 16-bit DVP image sensors, you can
design it yourself)
– Clock frequency up to 40 MHz
– Optimized DMA transmission bandwidth for easier transmission of high-resolution images
Description of Components
then goes clockwise.
Reserved means that the functionality is available, but the current version of the kit does not use it.
Espressif Systems

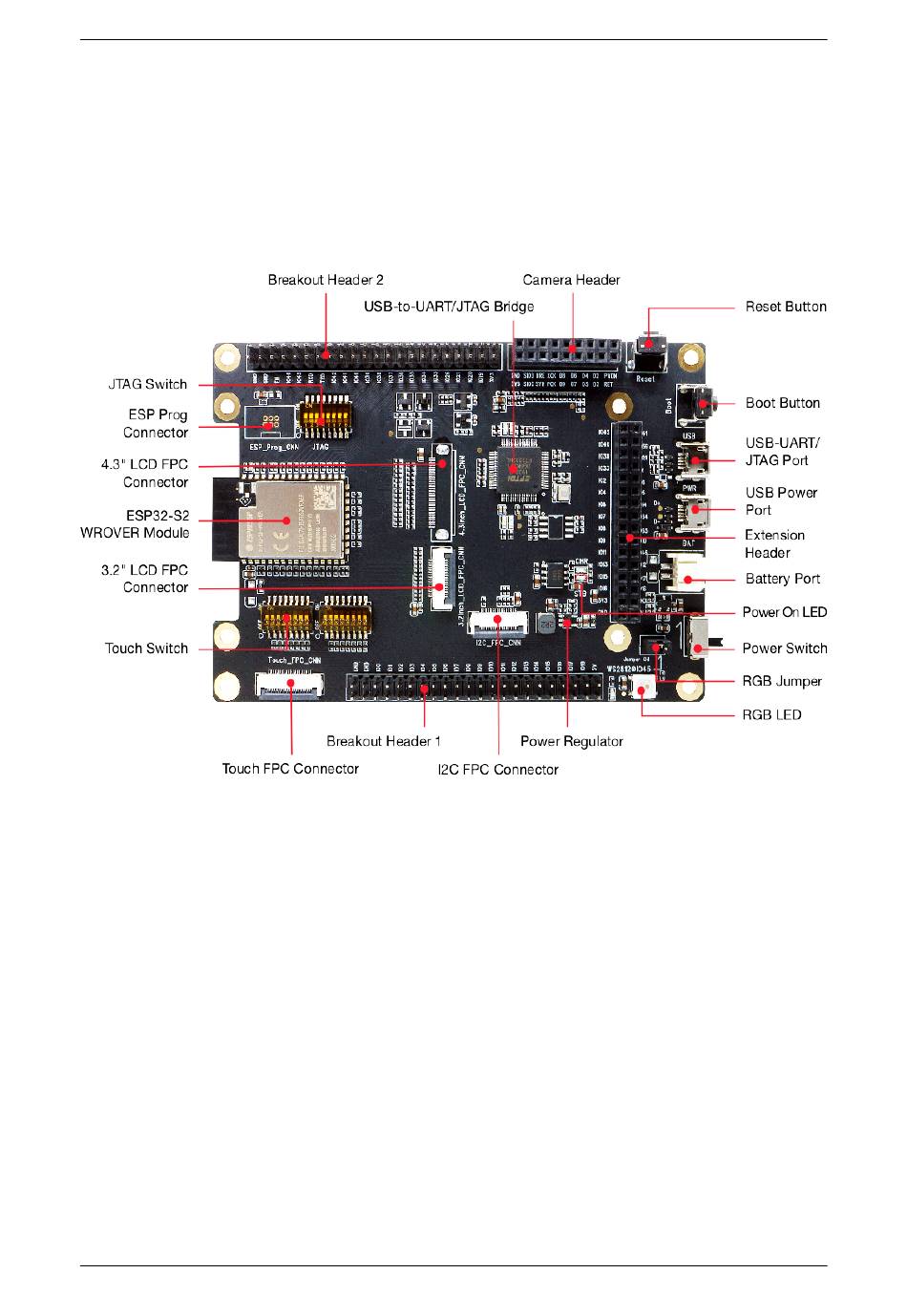

Fig. 22: ESP32-S2-Kaluga-1 - front (click to enlarge)
The description of components starts from the ESP32-S2 module on the left side and
