MIPI interface pin assignment:
Signal Name
MIPI_CLK_N
MIPI_CLK_P
MIPI_LAN0_N
MIPI_LAN0_P
MIPI_LAN1_N
MIPI_LAN1_P
CAM_CLK
CAM_GPIO
CAM_SCL
CAM_SDA
www.alinx.com

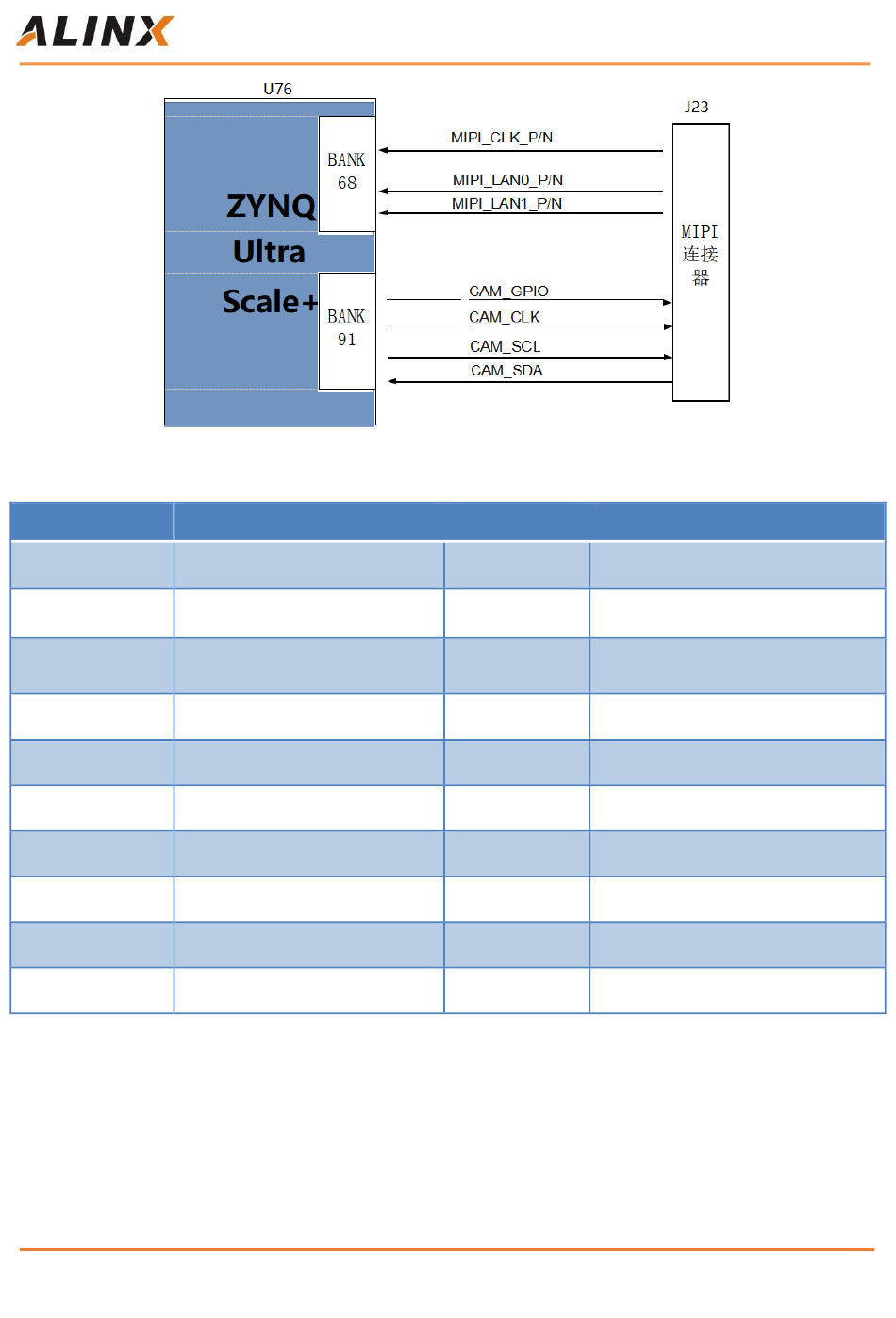

Figure 17-1: Design schematic diagram of the HDMI port
Pin Name
IO_L1N_T0L_N1_DBC_68
IO_L1P_T0L_N0_DBC_68
IO_L2N_T0L_N3_68
IO_L2P_T0L_N2_68
IO_L3N_T0L_N5_AD15N_68
IO_L3P_T0L_N4_AD15P_68
IO_L6P_HDGC_91
IO_L6N_HDGC_91
IO_L7N_HDGC_91
IO_L7P_HDGC_91
Pin Number
MIPI input clock negative
N15
MIPI input clock positive
P15
MIPI input data LANE0 negative
N16
MIPI input data LANE0 positive
P16
MIPI input data LANE1 negative
M16
MIPI input data LANE1 positive
M17
Clock input of camera
F13
GPIO control of camera
F12
I2C clock of camera
E10
I2C data of camera
E11
