2.6 Installing the Cable Fixing Plate

Step 1 Turn off the system and unplug the power cord.

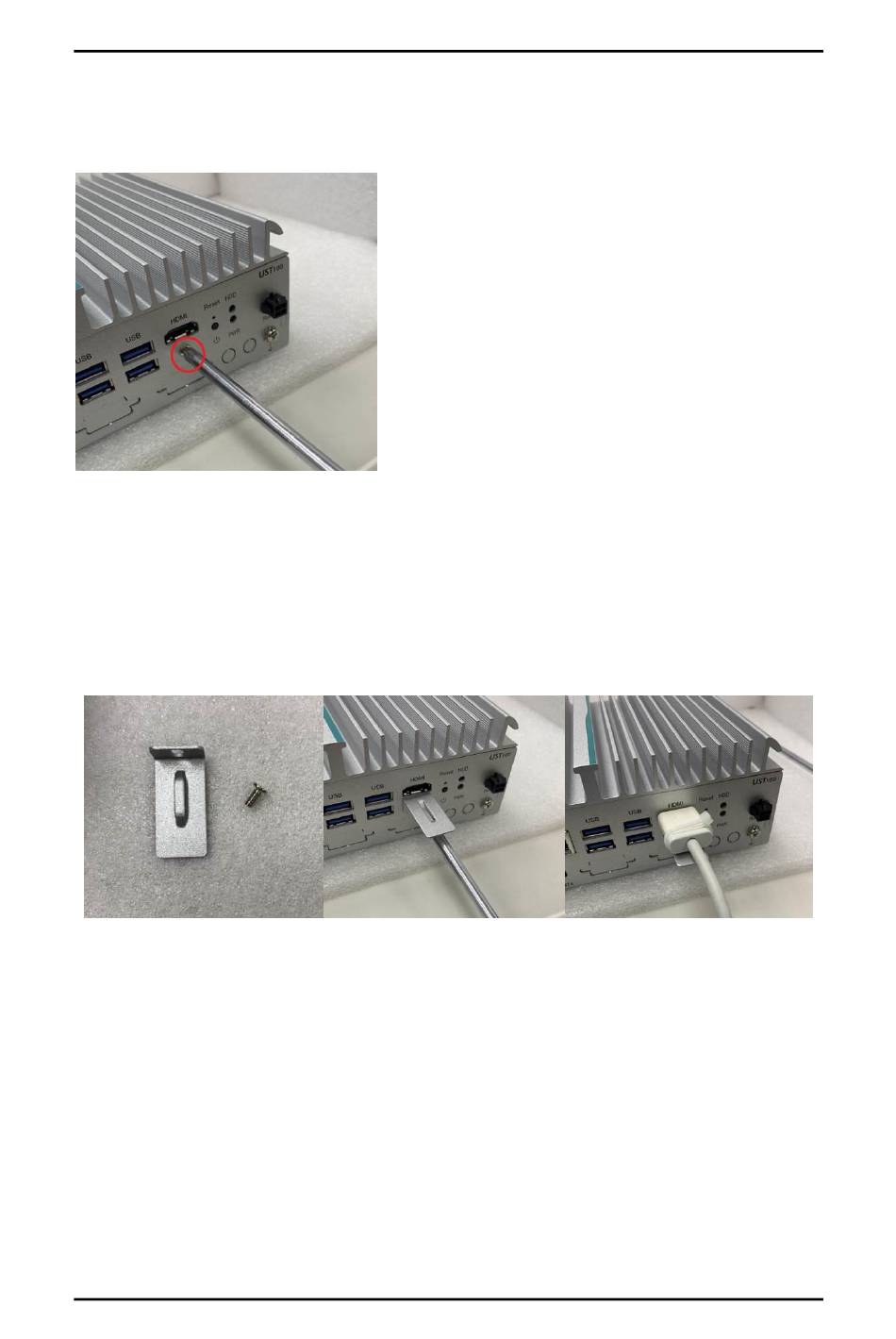

Step 2 Loosen and remove the fixing screw located below the HDMI port.
Step 3 To fasten the HDMI cable fixing plate to the system, position the hole
on the plate against the hole on the system, insert the screw through
the holes, and turn the screw tightly to fasten the plate, as shown
below.
Step 4 Insert the HDMI cable into the HDMI port.
Step 5 Insert a cable tie through the loop of the cable fixing plate to bind the
HDMI cable to the plate, as shown below.
