UST510-52B-FL Series user's Manual

2.7 Installing the Cable Fixing Plate

2.7.1

Installing the HDMI Cable Fixing Plate

Step 1 Turn off the system and unplug the power cord.

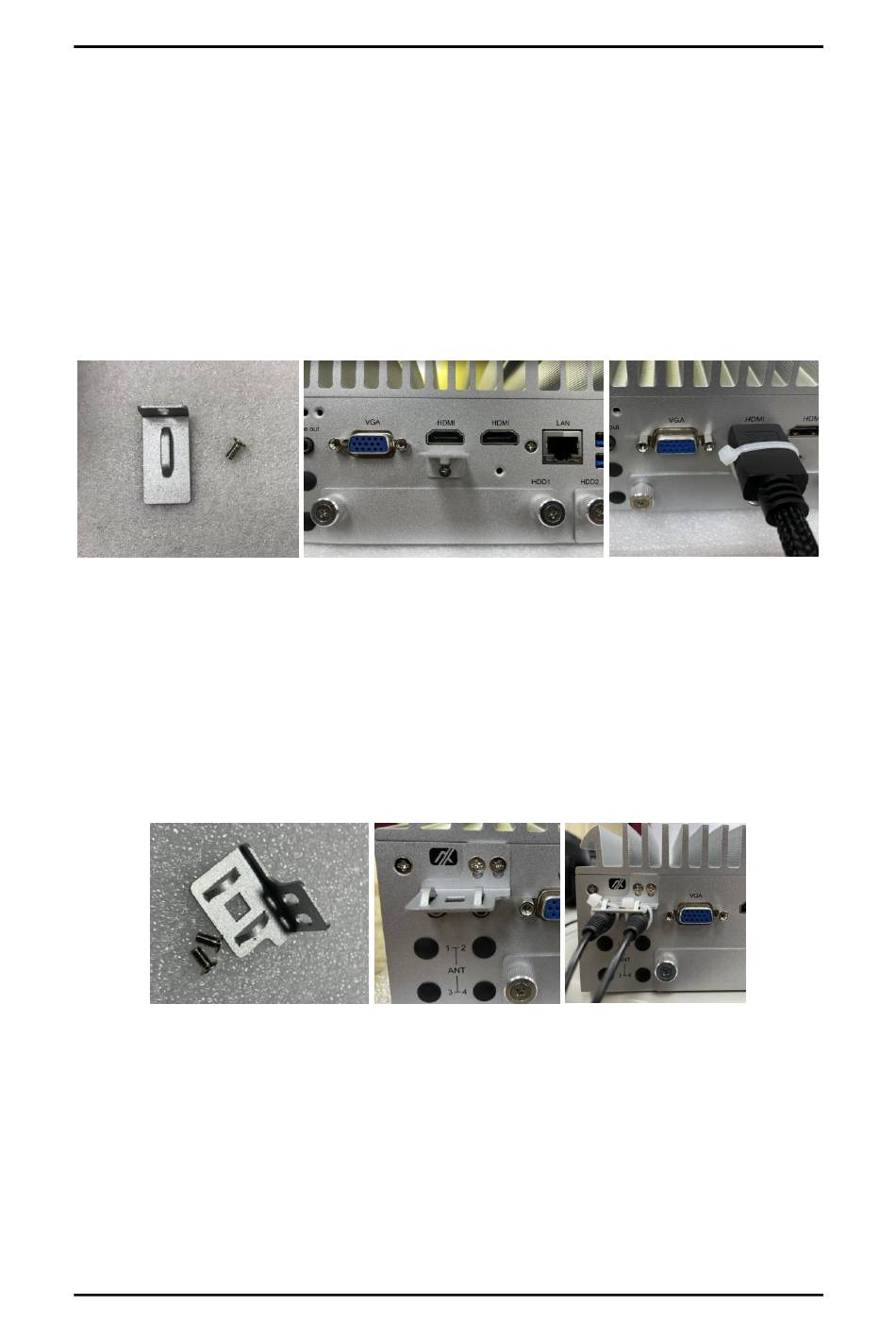

Step 2 To fasten the HDMI cable fixing plate to the system, position the hole
on the plate against the hole on the system, insert the screw into the
holes, and turn the screw tightly to fasten the plate, as shown below.
Step 3 Insert the HDMI cable into the system's HDMI port. Then Insert a cable
tie through the loop of the cable fixing plate to bind the HDMI cable to
the plate, as shown below.
2.7.2

Audio Cable Installation

Step 1 Turn off the system and unplug the power cord.
Step 2 To fasten the audio cable fixing plate to the system, position the holes
on the plate against the holes on the system, insert the screws into the
holes, and turn the screws tightly to fasten the plate, as shown below.
Step 3 Insert the audio cable into the system, and then use a cable tie to bind
the audio cable together.
