1.3.1 Adding an ADAP-KOOL® gateway

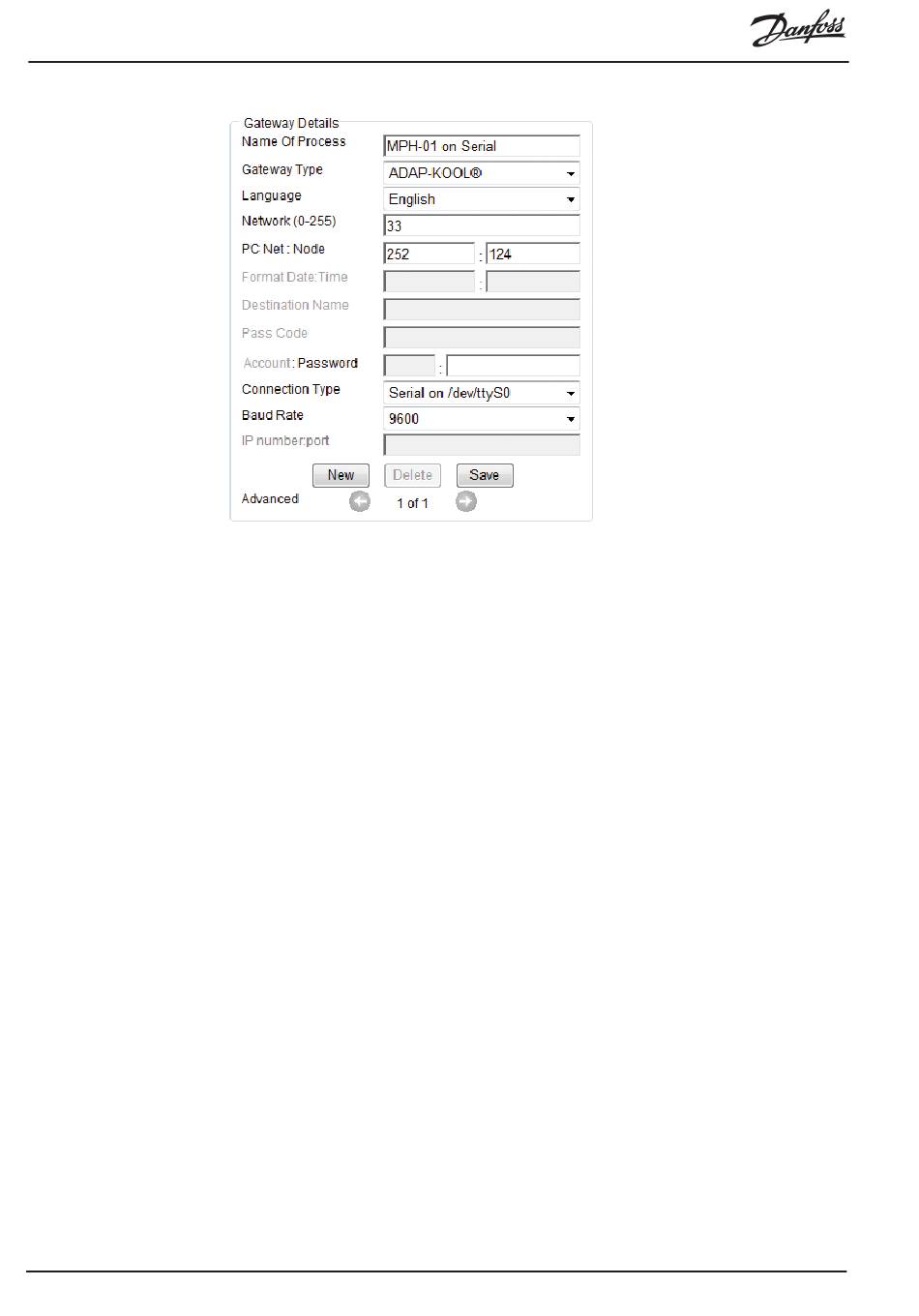

The fields which need to be altered are:
Name of Process - The name is automatically selected as MPH-01, while any additional gateways will
be incremented as MPH-02 etc. The connection will also be displayed and is dependant on what
Connection Type is selected further down the list.
Gateway Type - Select ADAP-KOOL® from the drop down menu.
Language - Select the language. When selected, it will be the language which will be displayed
throughout the whole site as it searches for the language within the DES file. (Refer to section 2.2 for
information regarding the DES file).
Network (0-255) - Enter the network number, which you should already know.
PC Net:Node - Enter the PC network address and the node number which it is attached to, this should
already be known by the commissioner.
Format Date:Time - Not needed for ADAP-KOOL®.
Destination Name - Applies only to System Manager
Pass Code - Applies only to System Manager
Account : Password - No account number is necessary, while a password is optional for access.
Connection Type - Choose a connection type, either ethernet or serial port. Whatever is selected will be
shown in the Name's title.
Baud Rate - Choose a rate from the drop down menu. The default is set to 9600.
IP number:port - If the connection type is on a serial port, then the IP number:port number does not
need to be added, whereas an address must be included if an ethernet connection is chosen.
Once the data is entered and all required fields are filled, press the 'Save' button to store the settings. The
Save button will not be available for selection unless all required (pink background) fields are entered.
Advanced Options
On the ADAP-KOOL® gateway, clicking on the 'Advanced' link will take you to the Network List. Once the
gateway has been connected to the network and the assets have been established, it will produce a table
of all of the current assets connected to the gateway.
